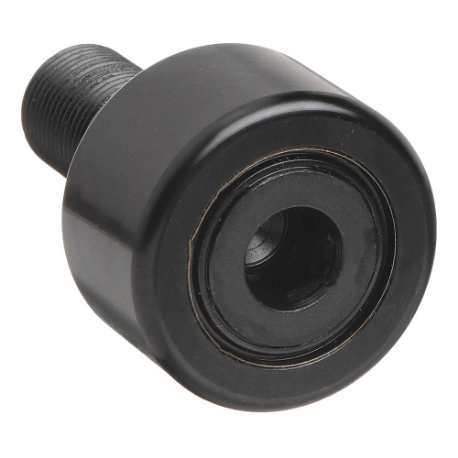

SMITH BEARING DCR-2-C Cam Follower, 2 Inch Dia, Heavy, 2 Row, Dbl Sealed, Hex Socket, Crowned, 7/8-14 Thread
Item: CU3BCVModel: DCR-2-CCross Ref: 40PL24
7 In Stock
2"
Crowned
Ships within 2 days via
10.00% off
€212.25 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Cam Follower |
| Bearing Material | Alloy Steel |
| Bearing Material Grade | AISI 52100 |
| Bearing Type | Needle Roller |
| Closure | Double Sealed |
| Drive Location | Stud |
| Drive Size | 1/2" |
| Drive Type | Hex Socket |
| Duty Type | Heavy Duty |
| Dynamic Radial Load Capacity | 12800 lbf. |
| Face Design | Hex Socket |
| Features | For Extremely High Load Or High Impact Applications, Needle Roller Bearings Are The Preferred Choice For Applications That Exhibit Radial Loads |
| Hex Drive Size | 1/2" |
| Lube Port Location | Roller Head, Stud End, Stud Side |
| Max. Temp. | 250°F |
| Min. Temp. | -30°F |
| Overall Length | 3 9/32" |
| Roller Dia. | 2" |
| Roller Head Type | Crowned |
| Roller Material | Alloy Steel |
| Roller Material Grade | Grade 52100 |
| Roller Width | 1 1/4" |
| Rolling Element Rows | 2 |
| Seal Material | Molded Acetyl |
| Seal Type | Contact |
| Standards | ABMA |
| Static Radial Load Capacity | 17700 lbf. |
| Stud Dia. | 7/8" |
| Stud Length | 2" |
| Stud Material | Carbon Steel |
| Stud Thread Length | 1" |
| Stud Thread Size | 7/8"-14 |
| Stud Type | Concentric |
| System Of Measurement | Imperial |
Shipping Info:
| Ship weight (kg) | 0.61 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 2.54 |
| Ship width (cm) | 2.54 |
Product Variants
| Product | Model | Roller Head Type | Roller Dia. | Roller Width | Stud Dia. | Stud Length | Overall Length | Dynamic Radial Load Capacity | Static Radial Load Capacity | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
DCR-1-1/2-C | Crowned | 1 1/2" | 7/8" | 5/8" | 1 1/2" | 2 13/32" | 5660 lbf. | 6180 lbf. | €133.09 | |
 |
DCR-1-1/2 | Flat | 1 1/2" | 7/8" | 5/8" | 1 1/2" | 2 13/32" | 5660 lbf. | 6180 lbf. | €113.33 | |
 |
DCR-1-1/4-C | Crowned | 1 1/4" | 3/4" | 1/2" | 1 1/4" | 2 1/32" | 4100 lbf. | 4300 lbf. | €115.43 | |
 |
DCR-1-1/4 | Flat | 1 1/4" | 3/4" | 1/2" | 1 1/4" | 2 1/32" | 4100 lbf. | 4300 lbf. | €91.84 | |
|
DCR-1-1/8-C | Crowned | 1 1/8" | 5/8" | 0.438" | 1" | 1 21/32" | 3000 lbf. | 3200 lbf. | €97.48 | |
|
DCR-1-1/8 | Flat | 1 1/8" | 5/8" | 0.438" | 1" | 1 21/32" | 3000 lbf. | 3200 lbf. | €73.76 | |
|
DCR-1-3/4-C | Crowned | 1 3/4" | 1" | 3/4" | 1 3/4" | 2 25/32" | 8400 lbf. | 10800 lbf. | €160.12 |
