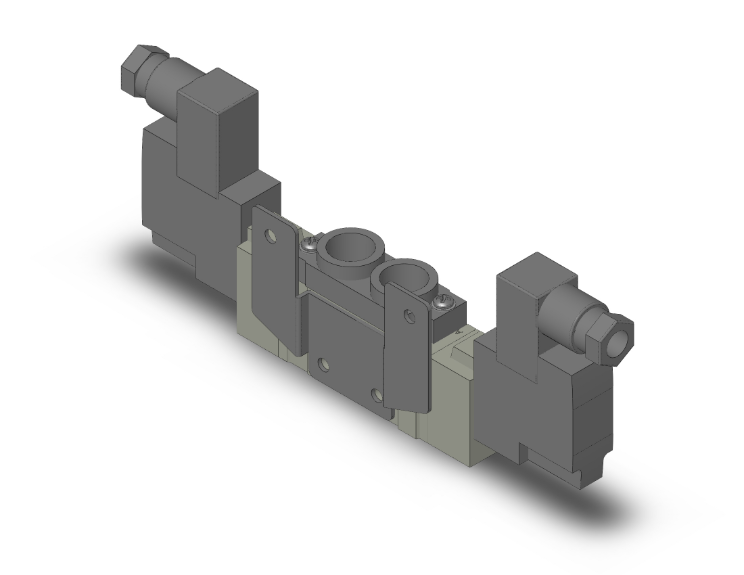

SMC VALVES SY7220-5DZ-02T-F2 Valve, 1/4 Port Size
Item: AN3WMUModel: SY7220-5DZ-02T-F2
7 In Stock
Ships within 2 days via
€165.05 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Solenoid Valve |
| Actuation | Piloted Solenoid |
| Body Material | Aluminum |
| Bracket Type | With Side Bracket |
| Flow Direction | 4-Way |
| Manual Operation Type | Non-Locking Push |
| No. Of Port | 5 |
| No. Of Positions | 2 |
| No. Of Solenoids | Double |
| Operating Medium | Air |
| Operating Temp. | 14°F to 122°F |
| Piping Type | Body Ported Subplate Included |
| Port Size | 0.25 |
| Port Sizes | 1/4" NPTF |
| Seal Material | Rubber |
| Series | SY Series |
| Solenoid Electrical Entry | DIN Terminal |
| Solenoid Power Consumption | 0.45 W |
| Solenoid Supply Frequency | 50/60 Hz |
| Solenoid Supply Voltage | 110-115V AC |
| Thread Standard | NPTF |
| Valve Function | Spool |
| Valve Series | SY7000 Series |
| Voltage | 24V DC |
| Voltage Suppressor | With Light, Surge Voltage Suppressor |
Shipping Info:
| Ship weight (kg) | 0.9 |
| Ship height (cm) | 5.08 |
| Ship length (cm) | 7.62 |
| Ship width (cm) | 5.08 |
Product Variants
| Product | Model | Overall Height | Overall Width | Voltage | Actuation | Operating Temp. | No. Of Solenoids | Solenoid Power Consumption | Port Size | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
SY7320-3DZ-02T | - | - | - | - | - | - | - | - | €178.26 | |
 |
SYA7140-02T | 57 mm | 46 mm | - | - | -10°C to +60°C | - | - | - | €98.09 | |
 |
SY7240-3DZ | - | - | - | - | - | - | - | - | €158.46 | |
 |
SY7340-3DZ | - | - | - | - | - | - | - | - | €178.26 | |
 |
SY7140-3DZ | 93 mm | 46 mm | - | Piloted Solenoid | 14°F to 122°F | 1 | 0.35 W | - | €108.45 | |
 |
SY7240-5DZ | 93 mm | 46 mm | - | Piloted Solenoid | 14°F to 122°F | Double | 0.35 W | - | €158.46 | |
 |
SY7340-5DZ | 93 mm | 46 mm | - | Piloted Solenoid | 14°F to 122°F | Double | 0.35 W | - | €178.26 |
