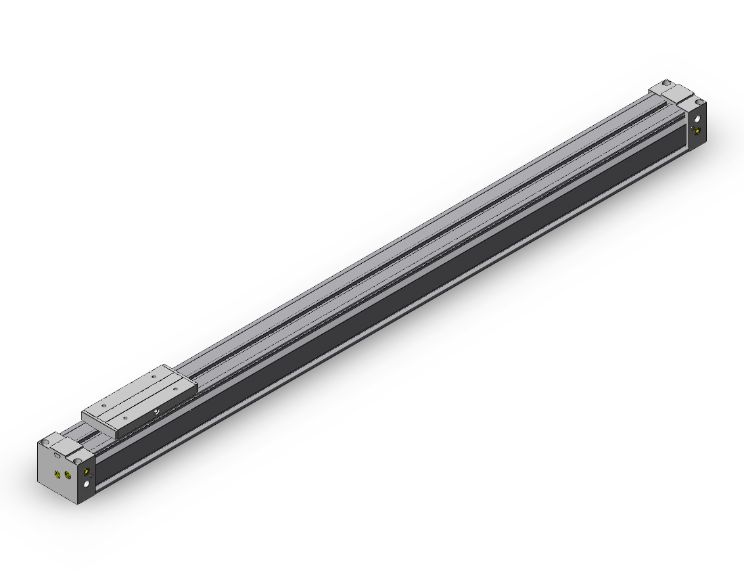

SMC VALVES MY1B63-1300 Guided Cylinder, 63 mm Size, Double Acting Auto Switcher
Get it by Tuesday, Aug 25
€1,614.56 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Cylinder |
| Bore Dia. | 63 mm |
| Cushion Type | Air Cushion |
| Cylinder Style | Mechanically Jointed |
| Guide Type | Basic Guide Standard |
| Max. Operating Pressure | 116 psi |
| Min. Operating Pressure | 14 psi |
| Mounting Orientation | Vertical, Horizontal, Ceiling, Wall |
| Mounting Type | Basic |
| Operating Pressure | 14 psi to 116 psi |
| Operating Temp. | 41°F to 140°F |
| Overall Height | 116 mm |
| Overall Length | 1760 mm |
| Overall Width | 112 mm |
| Piping Type | Standard Piping |
| Piston Action | Double Acting |
| Port Gender | Female |
| Port Thread Standard | BSPT |
| Proof Pressure | 174 psi |
| Seal Kit | MY1B63-PS |
| Series | MY1 Series |
| Stroke | 1300 mm |
| Suffix For Stroke | Both Ends |
Shipping Info:
| Ship weight (kg) | 3.15 |
| Ship height (cm) | 7.62 |
| Ship length (cm) | 30.48 |
| Ship width (cm) | 7.62 |
Product Variants
| Product | Model | Type | Price | |
|---|---|---|---|---|
 |
MY1B63-1200 | - | €1,543.81 | |
 |
MY1B63-500 | - | €1,048.54 | |
 |
MY1B20G-400 | - | €328.61 | |
 |
MY1B50TNG-800 | - | €1,022.40 | |
 |
MY1B20-1500 | - | €540.61 | |
 |
MY1B50-1200 | - | €1,249.45 | |
 |
MY1B50TN-1600 | - | €1,476.49 |
