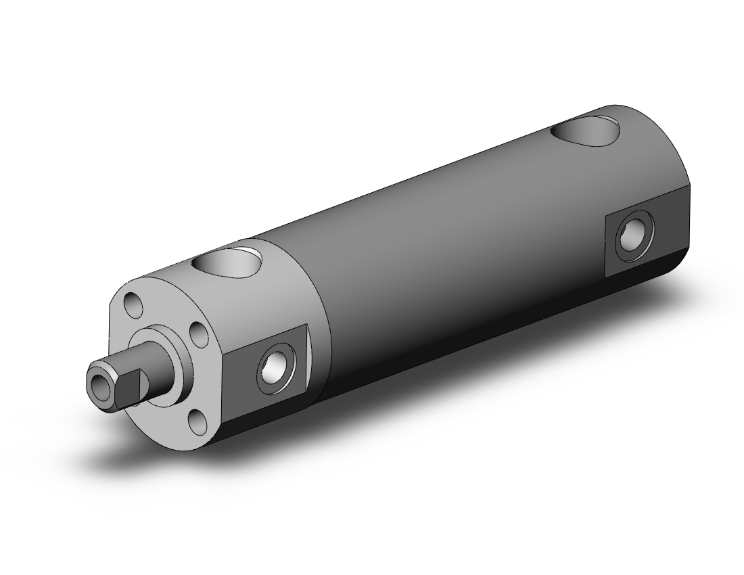

SMC VALVES CG1BN20-25FZ Cylinder, 20 mm Size, Double Acting
Get it by Friday, Aug 28
€41.91 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Round Body Cylinder |
| Auto Switch | Without Auto Switch |
| Bore Size | 20 mm |
| Cylinder Stroke 2 | Without Cylinder Stroke 2 |
| Cylinder Stroke Size | 25 mm |
| Cylinder Stroke Type | Standard |
| Dual Stroke Mark | Without Two Stroke Mark |
| Mounting Style | Basic |
| No. Of Auto Switches | 2 |
| Port Thread Type | Rubber cushion Rc, Air Cushion M5 x 0.8/Rc |
| Rod And Thread | Female Rod End |
| Suffix For Cylinder | Without Rod Boot |
| Suffix For Cylinder2 | Rod End Male Thread |
| Type | Rubber Cushion |
| With Auto Switch(built-in Magnet) | Without Auto Switch |
Shipping Info:
| Ship weight (kg) | 3.15 |
| Ship height (cm) | 7.62 |
| Ship length (cm) | 30.48 |
| Ship width (cm) | 7.62 |
Product Variants
| Model | Type | Price | |
|---|---|---|---|
| CDG1TA25-250 | - | €100.32 | |
| CG1BN20-100 | - | €45.21 | |
| CDG1BA25-300 | - | €100.71 | |
| CDG1BA20-75 | - | €72.14 | |
| CDG1BA20-100 | - | €74.52 | |
| CG1BN40-100 | - | €79.40 | |
| CDG1BN20-125 | - | €56.95 |
