SIEMENS SFP11U Zone Valve Actuator, Standard, On/Off, 120, 122 Deg F Max. Water Temp, Normally Open
Item: CU2XLFModel: SFP11UCross Ref: 40PN57
7 In Stock
Ships within 2 days via
5.00% off
€128.43 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Zone Valve Actuator |
| Actuator Type | Normally Open |
| Agency Compliance | UL873 |
| Application | Air Conditioning, Heating, Ventilation |
| Closeoff Pressure Type | Standard |
| Compatible Close-off Pressure | 44 psi |
| Compatible Valve Action | Normally Open |
| Compatible Valve Body Pattern | Two-Way |
| Compatible With Series | 599 Series |
| Control Signal | On/Off |
| Cycle Time | 10 sec. |
| Depth | 2.312" |
| Electrical Connection Type | Cable |
| Electrical Connections | Wire |
| Electrical Lead Length | 18" |
| For Use With | Zone Valves 1/10 In Stroke |
| Frequency | 60 Hz |
| Height | 4.391" |
| Housing Material | Plastic |
| Included Electrical Leads | Electrical Leads Included |
| Max. Operating Temp. | 230°F |
| Max. Water Temp. | 122°F |
| Min. Operating Temp. | 34°F |
| Nema Rating | 1 |
| No. Of Auxiliary Switches | 0 |
| Overall Depth | 2 5/16" |
| Overall Height | 3 3/8" |
| Overall Width | 4 3/8" |
| Product Type | Electric Zone Valve Actuator |
| Return Action | Spring Return |
| Signal Type | On/Off |
| Stroke Length | 1/8" |
| Torque | 23 lbs.-in. |
| Voltage | 120V AC |
| Width | 4.391" |
Shipping Info:
| Ship weight (kg) | 0.61 |
| Ship height (cm) | 8.57 |
| Ship length (cm) | 5.87 |
| Ship width (cm) | 11.11 |
| Country of Origin | KR |
Product Variants
| Product | Model | Voltage | Signal Type | Height | Depth | Actuator Type | Closeoff Pressure Type | Max. Water Temp. | Electrical Connections | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |

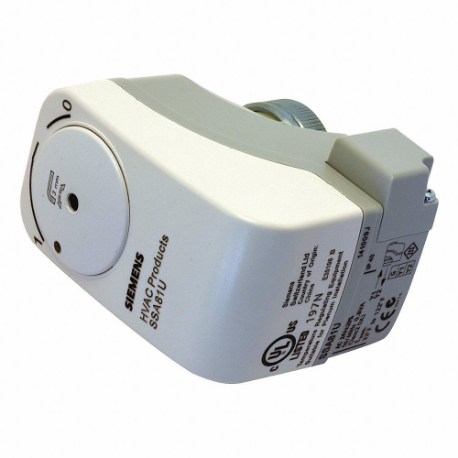

SSA81U | 24V AC | Proportional | 4.266" | 1.906" | Normally Closed | Standard | 122°F | Wire | €147.62 | RFQ
|
