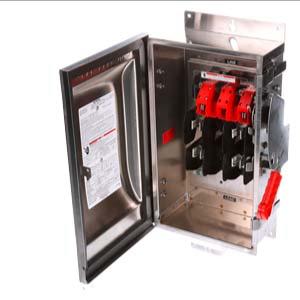

SIEMENS HF364S Safety Switch, Fusible, 200 A, Three Phase, 600 Vac, 304 Stainless Steel, Indoor/Outdoor
Item: CU2WJJModel: HF364SCross Ref: 20RC36
In Stock : 30 Get it by Thursday, Dec 18
10.00% off
€7,638.90 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Safety Switch |
| Amps | 200A |
| Contact Form | 3PST |
| Current Rating | 200A |
| Depth | 10 1/2" |
| Duty | Heavy Duty |
| Environment | Indoor/Outdoor |
| For Fuse Class | Class H, Class J, Class K, Class R, Class T |
| For Use With | Class H, J, K, R, T Fuse |
| Fuse Kit (class R) | Mfr. No. RFK03L |
| Fuse Ul Class | Class H, Class J, Class K, Class R, Class T |
| Fusible / Nonfusible | Fusible |
| Height | 31" |
| Horsepower @ 600v Ac | 150 hp |
| Housing Grade | Grade 304 |
| Housing Material | Stainless Steel |
| Hp @ 240vac | 60 hp |
| Hp @ 600vac | 150 hp |
| Metallic / Non-metallic | Metallic |
| Nema Enclosure Rating | NEMA 4, NEMA 4X |
| Number Of Mounting Holes | 3 |
| Number Of Poles | 3 |
| Number Of Wires | 3 |
| Phase | 3 |
| Protection Method | Fusible |
| Resistance Properties | Corrosion Resistant |
| Standards | Ul 98 |
| Ul Fuse Class | H, J, K, R, T |
| Voltage | 600V AC |
| Voltage Rating | 600V AC |
| Width | 17" |
Shipping Info:
| Ship weight (kg) | 22.05 |
| Ship height (cm) | 24 |
| Ship length (cm) | 49 |
| Ship width (cm) | 88 |
| HS code | 8536509045 |
| Country of Origin | MX |
Product Variants
| Product | Model | Environment | Amps | Number Of Wires | Phase | Number Of Poles | Protection Method | Voltage | Duty | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
HF223J | Indoor | 100A | 3 | Single | 2 | Fusible | 240V AC | Heavy Duty | €1,330.22 | |
 |
HF223N | Indoor | 100A | 3 | Single | 2 | Fusible | 240V AC | Heavy Duty | €618.80 | |
 |
HF223NR | Indoor/Outdoor | 100A | 3 | Single | 2 | Fusible | 240V AC | Heavy Duty | €931.20 | |
 |
HF223S | Indoor/Outdoor | 100A | 3 | Single | 2 | Fusible | 240V AC | Heavy Duty | €5,216.45 | |
 |
GF223N | Indoor | 100A | 3 | Single | 2 | Fusible | 240V AC | Standard | €361.64 | |
 |
GF223NR | Indoor/Outdoor | 100A | 3 | - | 2 | Fusible | 240V AC | Standard | €275.63 | |
 |
HF263 | Indoor | 100A | 3 | Single | 2 | Fusible | 600V AC | Heavy Duty | €956.15 |
