FREE delivery on orders over €150

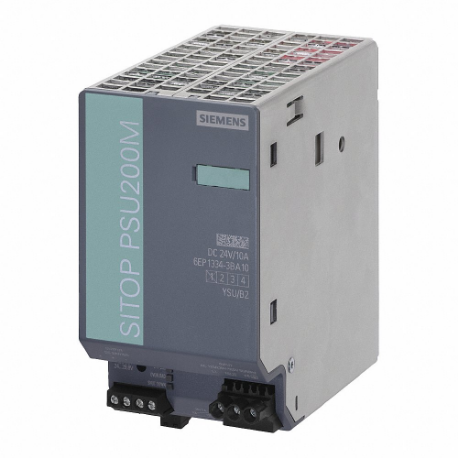

SIEMENS 6EP13343BA10 Dc Power Supply, 176 To 550 VAC/85 To 264 VAC, Single, 24VDC, 240W, 10, Din Rail
Item: CU2RQAModel: 6EP13343BA10Cross Ref: 38UZ92
7 In Stock
Ships within 2 days via
10.00% off
€599.95 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | DC Power Supply |
| Case Material | Metal Case |
| Current - Inrush | 35A |
| Current - Peak | 30A |
| Depth | 121 mm |
| Frequency | 50-60 Hz |
| Housing Material | Metal |
| Input Frequency - Maximuim | 63 Hz |
| Input Frequency - Minimum | 47 Hz |
| Input Voltage | 120-500V AC |
| Ip Rating | IP20 |
| Mfr. Series | SITOP Series |
| Mounting | Din Rail |
| Operating Temperature - Maximum | 158°F |
| Operating Temperature - Minimum | -13°F |
| Output Amps | 10A |
| Output Power - Rated | 240 W |
| Output Voltage | 24V DC |
| Output Voltage - Maximum | 28.8V DC |
| Output Voltage - Minimum | 24V DC |
| Output Voltage - Nominal | 24V DC |
| Overall Depth | 4.76" |
| Overall Height | 4.92" |
| Overall Width | 2 19/25" |
| Peak Amps | 30A |
| Phase | Single |
| Power Rating | 240 W |
| Power Supply Style | Switching |
| Regulated / Unregulated | Regulated |
| Special Features | Overvoltage Protection, Short Circuit Protection |
| Status Indicator | LED |
| Style | Switching |
| Wire Connection Type | Screw Terminals |
Shipping Info:
| Ship weight (kg) | 0.88 |
| Ship height (cm) | 12.5 |
| Ship length (cm) | 12.1 |
| Ship width (cm) | 7 |
| Country of Origin | RO |
Product Variants
| Product | Model | Mounting | Phase | Input Voltage | Ip Rating | Peak Amps | Case Material | Hold Up Time | Operating Temp. Range | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |

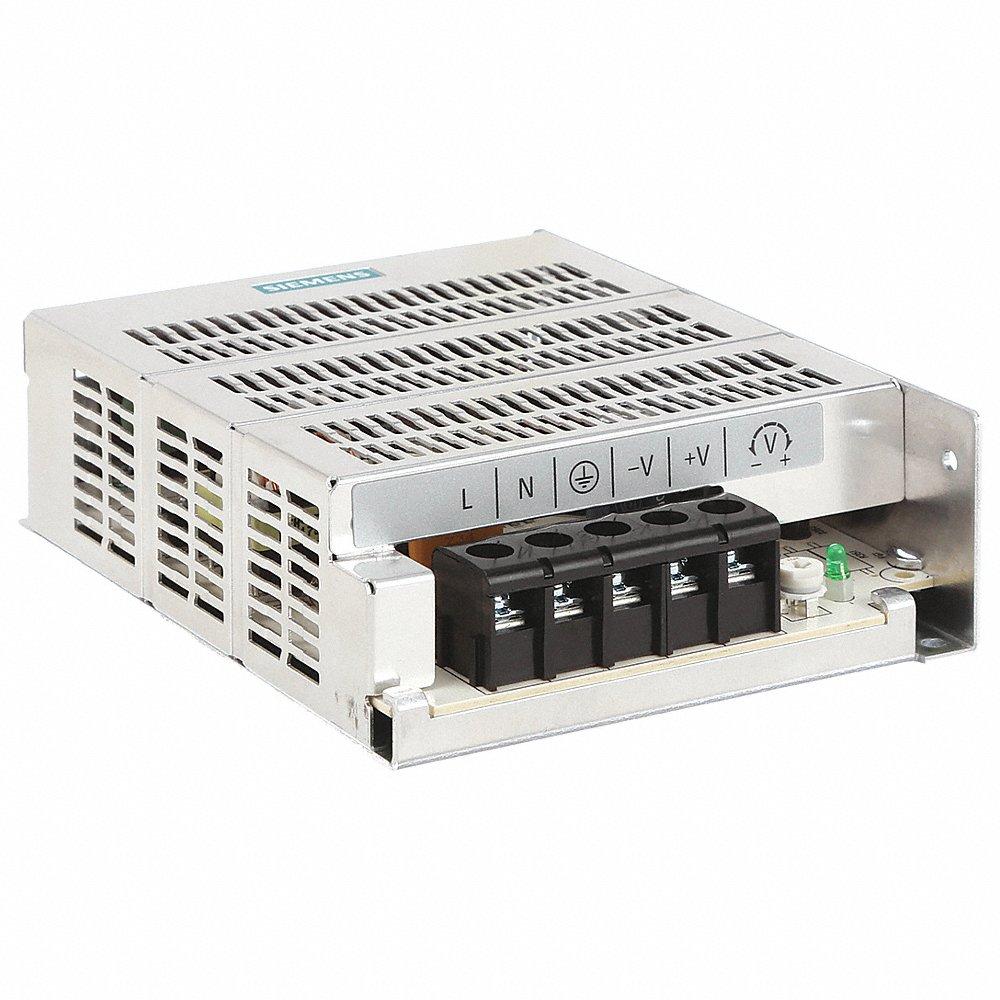

6EP13311LD00 | Wall | Single | 100-240V AC | IP20 | 60A | Aluminum | Greater Than 15 ms | - | - | RFQ
|
 |
6EP13225BA10 | Din Rail | Single | 100-230V AC/110-300V DC | IP20 | 31A | Plastic Case | Greater Than 20 ms | -20°C to +70°C | €273.05 | |
 |
6EP13215BA00 | Din Rail | Single | 100-230V AC/110-300V DC | IP20 | 33A | Plastic Case | Greater Than 20 ms | -20°C to +70°C | €176.32 | |
 |
6EP1331-5BA00 | Din Rail | Single | 100-230V AC/110-300V DC | IP20 | 1A | Plastic Case | Greater Than 20 ms | -20°C to +70°C | €110.41 | |
 |
6EP1331-5BA10 | Din Rail | Single | 110-300V DC/120-230V AC | IP20 | 3.1A | Plastic Case | Greater Than 20 ms | -20°C to +70°C | €141.40 | |
 |
6EP1332-5BA10 | Din Rail | Single | 100-230V AC/110-300V DC | IP20 | 4.8A | Plastic Case | Greater Than 20 ms | -20°C to +70°C | €266.32 | |
 |
6EP13337CA00 | Wall | Single | 120/230V AC | IP67 | 15A | Aluminum | 40 ms | - | €1,056.80 |
