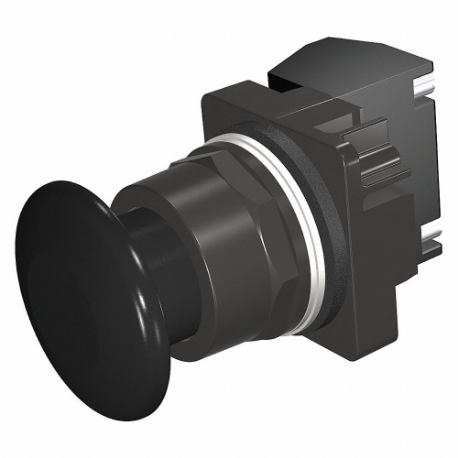

SIEMENS 52BM9W1A Non-Illuminated Push Button, 30 mm Size, Momentary Push, Black/4X | CU2VJF 32GG47

SIEMENS 52BM9W1A Non-Illuminated Push Button, 30 mm Size, Momentary Push, Black/4X

Item: CU2VJFModel: 52BM9W1ACross Ref: 32GG47
7 In Stock

Ships within 2 days via

€213.41
5.00% off
€202.74 /unit
Add To Cart
Request a Quote

Payment

Product Specifications:

Item Non-Illuminated Push Button
Ac Contact Rating 10A @ 600V
Action Momentary
Action Type Momentary Push
Basic Material Metal
Bezel Material Epoxy Coated Zinc Die Cast
Color Black
Contact Form 1NO/1NC
Contact Rating 10A @ 600V AC
Dc Contact Rating Not Rated
Display Qty 1
Features Bifurcated Movable Contacts, Boots Not Required, Nema A600/P600 Contacts, Octagonal Mounting Nuts, Positive Indexing Selectors, Positively Driven Contacts, Touchsafe Terminals
Head Material Plastic
Head/lens Color Black
Ip Rating IP10, IP11, IP14, IP52, IP54, IP56, IP66
Legend No Legend
Material Metal
Max. Operating Temp. 158°F
Max. Operator Voltage Rating 600V AC
Mechanical Operating Durability 5 x 10^6
Min. Operating Temp. 31°F
Mushroom Head Dia. 44.45 mm
Nema Contact Rating Designation A600/P600
Nema Enclosure Rating NEMA 1, NEMA 3, NEMA 3R, NEMA 4, NEMA 4X, NEMA 12, NEMA 13
Nema Rating NEMA 1, NEMA 12, NEMA 13, NEMA 3, NEMA 3R, NEMA 4, NEMA 4X
No. Of Indicator Lights 0
No. Of Operators 1
Operator Illumination Non Illuminated
Operator Material Metal
Overall Height 4.49"
Overall Width 2 3/25"
Panel Mounting Hole Dia. 30 mm
Product Type Push Button Operators
Push Button Style Mushroom Head
Resistance Properties Corrosion Resistant, Oil And Grease Resistant, Watertight
Series CLASS 52 Series
Terminal Connection Pressure Plate
Type Of Operator 44 mm Mushroom Head

Shipping Info:

Ship weight (kg) 0.21
Ship height (cm)2.54
Ship length (cm)2.54
Ship width (cm)2.54
Country of OriginMX
