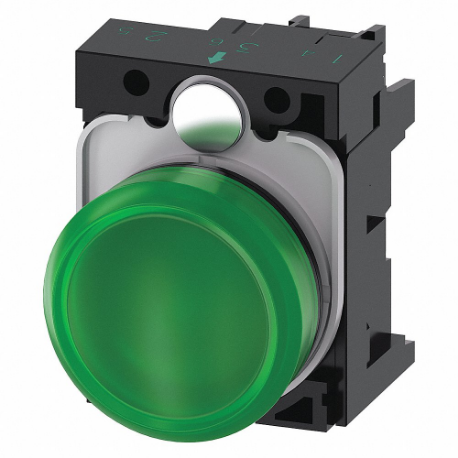

SIEMENS 3SU1102-6AA40-1AA0 Pilot Light Complete, 22 mm Size, Full Volt, 24VAC/DC, Green, LED
Item: CU2VUZModel: 3SU1102-6AA40-1AA0Cross Ref: 411J81
7 In Stock
Ships within 2 days via
5.00% off
€101.21 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Light |
| Basic Material | Polyamide |
| Body Material | Plastic |
| Color | Green |
| Included Lamp Module | Lamp Module Included |
| Included Lens | Lens Included |
| Included Push-to-test | No Push To Test Included |
| Ip Rating | IP67, IP69K |
| Lamp Bulb Color | Green |
| Lamp Bulb Type | LED |
| Lamp Module Type | Full Voltage |
| Lamp Type | LED |
| Lamp Voltage | 24V AC/DC |
| Lens Color | Green |
| Lens Material | Plastic |
| Lens Type | Smooth |
| Max. Lamp Bulb Voltage | 24V AC/DC |
| Max. Supply Voltage | 24V AC/DC |
| Nema Enclosure Rating | NEMA 1, NEMA 2, NEMA 3, NEMA 3R, NEMA 4, NEMA 4X, NEMA 12, NEMA 13 |
| Nema Rating | NEMA 1, NEMA 12, NEMA 2, NEMA 3, NEMA 3R, NEMA 4, NEMA 4X |
| Overall Depth | 3.49" |
| Overall Height | 1.57" |
| Overall Width | 1.18" |
| Panel Mounting Hole Dia. | 22 mm |
| Replacement Lamps | Integrated |
| Resistance Properties | Shock Resistant, Surge Voltage Resistant, Vibration Resistant |
| Series | 3SU Series |
| Shape | Round |
| Terminal Connection | Screw Terminal |
| Terminal Connection Type | Pressure Plate |
| Voltage | 24V AC/DC |
Shipping Info:
| Ship weight (kg) | 0.05 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 2.54 |
| Ship width (cm) | 2.54 |
| Country of Origin | CZ |
Product Variants
| Product | Model | Lens Material | Lamp Module Type | Lens Color | Panel Mounting Hole Dia. | Lamp Type | Lamp Voltage | Terminal Connection Type | Lens Type | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
52PL4EB | Plastic | Full Voltage | White | 30 mm | Incandescent | 120V AC | Pressure Plate | Concentric Ring | €177.01 | |
 |
52PL5E3XB | Glass | Full Voltage | Green | 30 mm | LED | 120V AC | Pressure Plate | Concentric Ring | €260.01 | |
 |
3SU1153-6AA30-1AA0 | Plastic | Full Voltage | Yellow | 22 mm | LED | 120V AC | Pressure Plate | Smooth | €113.52 | |
 |
52BL5D3XB | Glass | Full Voltage | Green | 30 mm | LED | 24V AC/DC | Pressure Plate | Concentric Ring | €229.35 | |
|
52BL5J3XB | Glass | Transformer | Green | 30 mm | LED | 6V AC/DC | Pressure Plate | Concentric Ring | €276.40 | |
|
52PL4HBXB | Plastic | Transformer | White | 30 mm | LED | 6V AC/DC | Pressure Plate | Concentric Ring | €279.67 | |
 |
52BL4J3XB | Plastic | Transformer | Green | 30 mm | LED | 6V AC/DC | Pressure Plate | Concentric Ring | €218.20 |
