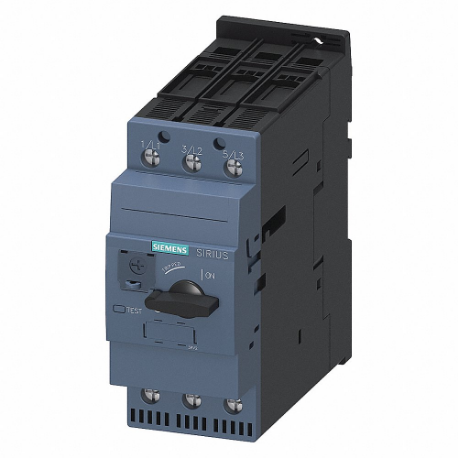

SIEMENS 3RV20314JA10 Manual Motor Starter, Rotary Knob, No Enclosure, 54 to 65, 3 Poles, 690V AC
Item: CU2UZZModel: 3RV20314JA10Cross Ref: 499K25
7 In Stock
Ships within 2 days via
10.00% off
€644.88 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Manual Motor Starter |
| Amps Rating | 65A |
| Connection Type | Screw Connection |
| Depth | 5.87" |
| Electrical Operating Durability | 100000 |
| Enclosure Nema Rating | No Enclosure |
| Features | Phase Loss Sensitivity |
| Frame Size | S2 |
| Frequency | 50/60 Hz |
| Height | 5.51" |
| Horsepower @ Single Phase - 120v Ac | 5 hp |
| Horsepower @ Three Phase | 60 hp |
| Horsepower @ Three Phase - 208v Ac | 20 hp |
| Horsepower @ Three Phase - 600v Ac | 60 hp |
| Hp @ 1 Phase - 120v | 5 hp |
| Hp @ 1 Phase - 230v | 15 hp |
| Hp @ 3 Phase - 208v | 20 hp |
| Hp @ 3 Phase - 240v | 25 hp |
| Hp @ 3 Phase - 480v | 50 hp |
| Hp @ 3 Phase - 575v | 60 hp |
| Hp @ Single Phase - 240v Ac | 15 hp |
| Includes Pilot Light | No |
| Integrated Auxiliary Switch Present | No |
| Integrated Undervoltage Tripper Present | No |
| Ip Rating | IP20 |
| Lowest | Of Setting Range For Overload Tripper |
| Manner Of Using | Toggle |
| Max Current (ac) | 65A |
| Max. Overload Relay Amps Setting | 65A |
| Max. Voltage | 690V AC |
| Maximum Operating Temperature | 140°F |
| Mechanical Operating Durability | 100000 |
| Minimum Operating Temperature | -4°F |
| Minimum Overload Relay Current Setting | 54A |
| Mounting Hole Dia. | 1.38" |
| Mounting Style | DIN Rail |
| Nema Size | Not Applicable |
| Number Of Poles | 3 |
| Operator | Selector Switch |
| Overall Depth | 7" |
| Overall Height | 7.1" |
| Overall Width | 2.9" |
| Overload Protection Type | Thermal |
| Overload Relay Amp Setting | 54-65A |
| Phase | Three |
| Phase Loss Sensitivity | Yes |
| Pilot Light | Yes |
| Pole Number | 3 |
| Release System | Magnetic |
| Reversing Capability | Non-reversing |
| Sensitive To Phase Failure | Yes |
| Series | SIRIUS 3RV20 Series |
| Starter Style | IEC |
| Terminal Connection Type | Screw Terminals |
| Thermal Units Required | None (Starter Includes Integrated Thermal Units) |
| Trip Class | 20 |
| Width | 2.17" |
| Wire Termination Type | Screws |
Shipping Info:
| Ship weight (kg) | 1.19 |
| Ship height (cm) | 18.03 |
| Ship length (cm) | 17.78 |
| Ship width (cm) | 7.37 |
| Country of Origin | DE |
Product Variants
| Product | Model | Amps Rating | Height | Max. Voltage | Depth | Operator | Hp @ 3 Phase - 480v | Overload Relay Amp Setting | Overall Depth | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
3RV20110GA10 | 0.63A | 97 mm | 600V AC | 96 mm | Selector Switch | 5/8 hp | 0.45-0.63A | 4.35" | €226.11 | |
|
3RV20110HA10 | 0.8A | 97 mm | 600V AC | 96 mm | Selector Switch | 51/64 hp | 0.55-0.8A | 4.35" | €285.19 | |
|
3RV20110JA10 | 1A | 97 mm | 600V AC | 96 mm | Selector Switch | 1/2 hp | 0.7-1A | 4.35" | €298.51 | |
|
3RV20110KA10 | 1.25A | 97 mm | 600V AC | 96 mm | Selector Switch | 1/2 hp | 0.9-1.25A | 4.35" | €257.92 | |
 |
3RV20111AA10 | 1.6A | 97 mm | 600V AC | 96 mm | Selector Switch | 3/4 hp | 1.1-1.6A | 4.35" | €281.99 | |
|
3RV20111BA10 | 2A | 97 mm | 600V AC | 96 mm | Selector Switch | 3/4 hp | 1.4-2A | 4.35" | €253.41 | |
 |
3RV20111CA10 | 2.5A | 97 mm | 600V AC | 96 mm | Selector Switch | 1 hp | 1.8-2.5A | 4.35" | €382.92 |
