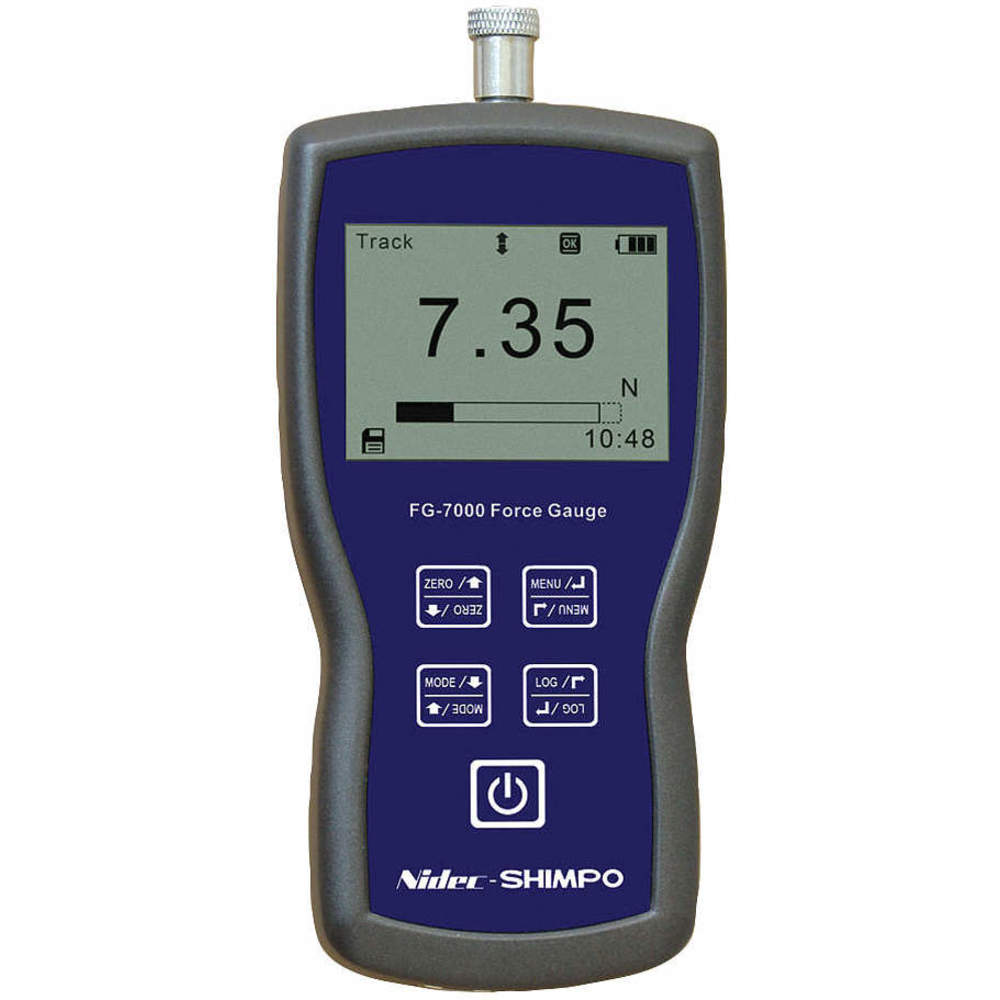

SHIMPO FG-7003 Force Gauge Lcd Aluminium 14 - 104f
Item: AF8PVXModel: FG-7003Cross Ref: 29FK06
7 In Stock
Ships within 2 days via
10.00% off
€996.10 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Force Gauge |
| Accuracy | +/-0.2% FS |
| Auto Power Off | Yes |
| Battery Chemistry | Nickel Metal Hybride |
| Battery Run Time | 16 hrs. |
| Battery Size | AAA |
| Battery Voltage | 3.6V |
| Certificate Of Calibration | Included |
| Digital Display Screen Type | LCD With Backlight |
| Digital Force Gauge Features | Compact |
| Display Type | Digital |
| Force Accuracy | -0.2% to +0.2% |
| Force Resolution | 0.0001 Kgf, 0.0005 Lbf, 0.001 N, 0.01 Ozf, 0.1 Gf, 1 Mn |
| Function | 180 Degrees Auto-Reversible Display, Tension/Compression & Data Storage Icons, High Low Limits With Audible & Visual Indication, Comparator Output, Data Logging For Sending To PC Or Printer |
| Gauge Adapters Included | Chisel, Cone, Extension Rod, Flat Head, Hook |
| Includes | Ac Adapter, Calibration Certificate, USB Cable |
| Interface | Usb |
| Manufacturer Warranty Length | 1 yr. |
| Max. Capacity | 2.2 lbf. |
| Maximum Force Measured | 2.2 lbf. |
| Measurement Modes | Real Time Track Mode, Peak Mode, Auto Peak with timed Peak Reset |
| Measuring Units | mN, N, gf, kgf, ozf, lbf |
| Measuring Units | gf, Kgf, Lbf, mN, N, ozf |
| Memory | 1000 Points |
| Minimum Force Measured | 0.0005 lbf. |
| Number Of Batteries Required | 3 |
| Number Of Records Stored | 1000 |
| Power Source | Battery |
| Range | 2.2 lbs. |
| Sampling Rate | 1000 Hz |
| Tester Type | Digital Force Gauge |
Shipping Info:
| Ship weight (kg) | 1.26 |
| Ship height (cm) | 6.99 |
| Ship length (cm) | 17.78 |
| Ship width (cm) | 27.31 |
| HS code | 9024800000 |
Product Variants
| Model | Measuring Units | Maximum Force Measured | Minimum Force Measured | Display Type | Range | Tester Type | Force Accuracy | Number Of Records Stored | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| FG-7002 | mN, N, gf, ozf, Lbf | 1.1 lbf. | 0.0001 lbf. | Digital | 1.1 lbs. | Digital Force Gauge | -0.2% to +0.2% | 1000 | €1,106.77 | |
| FG-7004 | gf, Kgf, Lbf, mN, N, ozf | 4.4 lbf. | 0.001 lbf. | Digital | 4.4 lbs. | Digital Force Gauge | -0.2% to +0.2% | 1000 | €1,106.77 | |
| FG-7005 | gf, Kgf, Lbf, mN, N, ozf | 11 lbf. | 0.001 lbf. | Digital | 11 lbs. | Digital Force Gauge | -0.2% to +0.2% | 1000 | €1,106.77 | |
| FG-7006 | gf, Kgf, Lbf, N, ozf | - | - | Dot Matrix LCD | 22 lbs. | - | - | - | €1,106.77 | |
| FG-7007 | gf, kgf, lbf, mN, N, ozf | 44 lbf. | 0.01 lbf. | Digital | 44 lbs. | Digital Force Gauge | -0.2% to +0.2% | 1000 | €1,106.77 | |
| FG-7008 | gf, kgf, lbf, mN, N, ozf | 110 lbf. | 0.01 lbf. | Digital | 110 lbs. | Digital Force Gauge | -0.2% to +0.2% | 1000 | €1,106.77 | |
| FG-7009 | gf, kgf, lbf, mN, N, ozf | 220 lbf. | 0.05 lbf. | Digital | 220 lbs. | Digital Force Gauge | -0.2% to +0.2% | 1000 | €1,106.77 |
