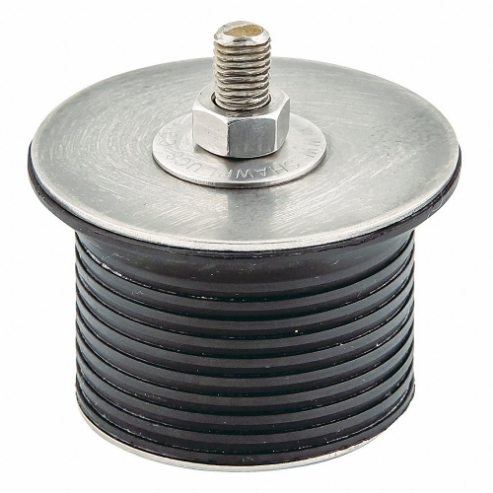

SHAW PLUGS 62001 Mechanical Expansion Plug, Hex-Nut, 1 Inch Size, Steel, Buna-Nitrile Rubber
Item: AA6PUMModel: 62001Cross Ref: 14M034
7 In Stock
Ships within 2 days via
10.00% off
€76.85 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Mechanical Expansion Plug |
| Finish | Zinc Plated |
| For Maximum Pipe Inside Diameter | 1.1" |
| For Minimum Pipe Inside Diameter | 0.94" |
| For Pipe Size | 1" |
| Head Type | Hex Nut |
| Material | Neoprene Rubber, Steel |
| Max. Back Pressure | 5 ft. of Head |
| Max. Dia. | 1.049" |
| Max. Diameter | 1.049" |
| Maximum Back Pressure | 10 psi |
| Maximum Back Pressure (air) | 10 psi |
| Maximum Back Pressure (water) | 23 Ft. Of Head |
| Min. Dia. | 0.94" |
| Nominal Size | 1" |
| Overall Height | 2.3" |
| Plate Material | Zinc-Plated Steel |
| Plug Seal Location | End Of Pipe |
| Plug Seal Material | Neoprene |
| Plug Type | Hex Nut |
| Standards | OSHA |
Shipping Info:
| Ship weight (kg) | 0.07 |
| Ship height (cm) | 5.84 |
| Ship length (cm) | 5.84 |
| Ship width (cm) | 3.56 |
| HS code | 4016991500 |
| Country of Origin | US |
Product Variants
| Model | For Pipe Size | For Minimum Pipe Inside Diameter | For Maximum Pipe Inside Diameter | Maximum Back Pressure (air) | Maximum Back Pressure (water) | Nominal Size | Head Type | Plug Seal Location | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| 62002 | 1 1/4" | 1.21" | 1.36" | 5 psi | 11.5 Ft. Of Head | 1 1/4" | Hex Nut | End Of Pipe | €87.23 | |
| 62003 | 1 1/2" | 1 11/25" | 1.58" | 5 psi | 11.5 Ft. Of Head | - | Hex Nut | End Of Pipe | €87.16 | |
| 62004 | 1 3/4" | 1.7" | 1.9" | 5 psi | 11.5 Ft. Of Head | 1 3/4" | Hex Nut | End Of Pipe | €88.73 | |
| 62005 | 2" | 1.93" | 2.16" | 5 psi | 11.5 Ft. Of Head | - | Hex Nut | End Of Pipe | €92.01 |
