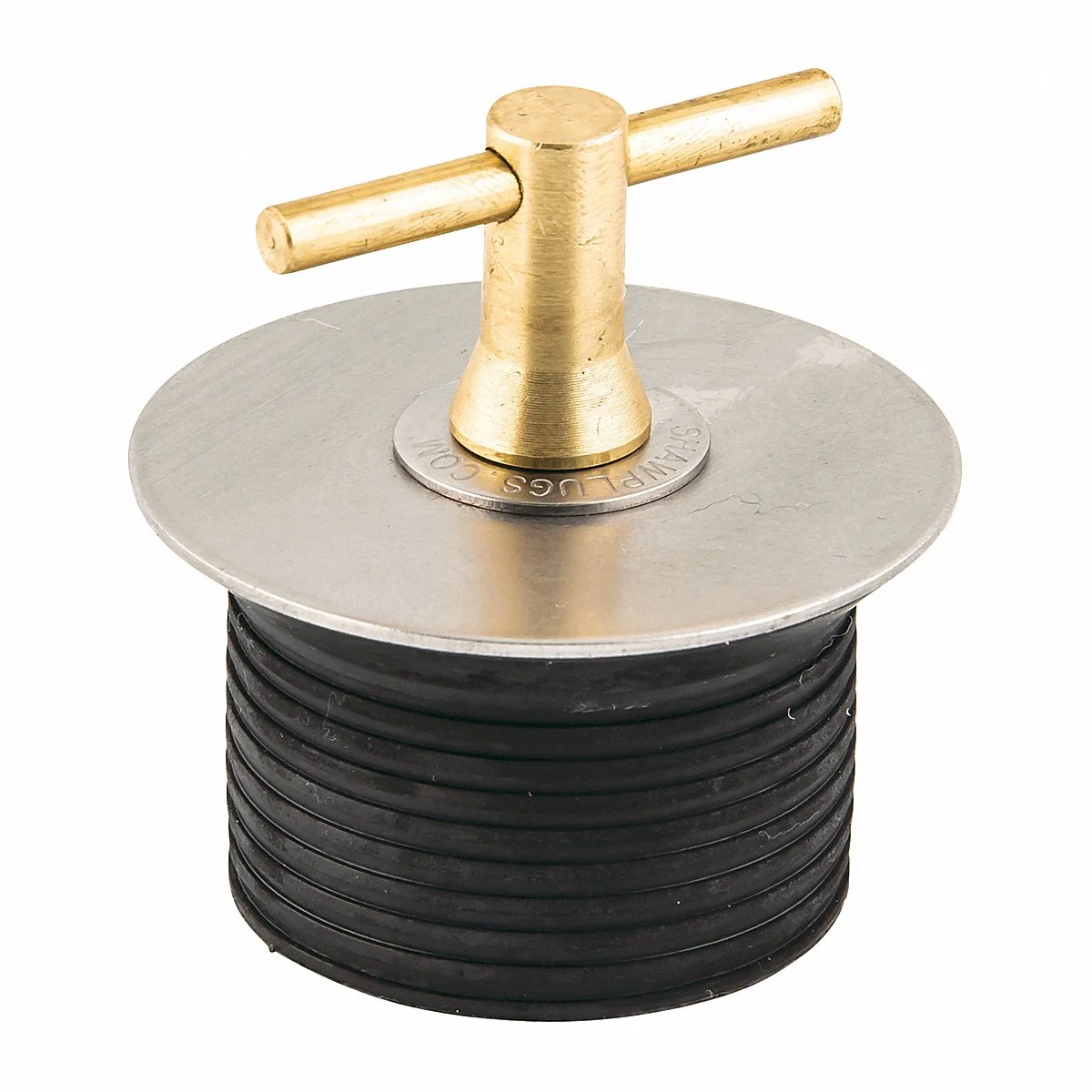

SHAW PLUGS 52004 Mechanical Expansion Plug, 1-3/4 Inch Size, Zinc Plated Steel, Neoprene Rubber
Item: AF2MHUModel: 52004Cross Ref: 6VFN4
7 In Stock
Ships within 2 days via
10.00% off
€80.22 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Mechanical Expansion Plug |
| Application | Commercial, Industrial |
| Body Finish | Zinc Plated |
| Body Material | Steel |
| For Maximum Pipe Inside Diameter | 1.87" |
| For Minimum Pipe Inside Diameter | 1.7" |
| For Pipe Size | 1 3/4" |
| Handle Material | Brass |
| Head Type | T Handle |
| Inside Dia. | 1.7" to 1.87" |
| Material | Neoprene Rubber |
| Max. Air Pressure | Up To 5 psi |
| Maximum Back Pressure | 5 psi |
| Maximum Back Pressure (air) | 5 psi |
| Maximum Back Pressure (water) | 11.5 Ft. Of Head |
| Nominal Size | 1 3/4" |
| Overall Height | 2 19/25" |
| Plate Material | Zinc-Plated Steel |
| Plug Seal Location | End Of Pipe |
| Plug Seal Material | Neoprene |
| Plug Type | Turn Tite |
Shipping Info:
| Ship weight (kg) | 0.16 |
| Ship height (cm) | 7.01 |
| Ship length (cm) | 8.89 |
| Ship width (cm) | 7.62 |
| HS code | 7326908588 |
| Country of Origin | US |
Product Variants
| Model | For Pipe Size | For Minimum Pipe Inside Diameter | For Maximum Pipe Inside Diameter | Plate Material | Inside Dia. | Max. Air Pressure | Nominal Size | Head Type | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| 52001-1 | 1 1/8" | 1.06" | 1.17" | Stainless Steel | 1.06" to 1.166" | Up To 10 psi | 1.125" | T Handle | €65.15 | |
| 52002-1 | 1 3/8" | 1 8/25" | 1.45" | Zinc-Plated Steel | 1.320" to 1.452" | Up To 10 psi | 1.375" | T Handle | €67.62 | |
| 52003-1 | 1 5/8" | 1.55" | 1.71" | Zinc-Plated Steel | 1.55" to 1.705" | Up To 10 psi | 1.625" | T Handle | €66.39 | |
| 52004-1 | 1 7/8" | 1.81" | 1.99" | Zinc-Plated Steel | 1.81" to 1.991" | Up To 5 psi | 1.875" | T Handle | €75.93 | |
| 52002 | 1 1/4" | 1.21" | 1.33" | Zinc-Plated Steel | 1.210" to 1.331" | Up To 10 psi | 1 1/4" | T Handle | €73.85 | |
| 52003 | 1 1/2" | 1 11/25" | 1.58" | Zinc-Plated Steel | 1.440" to 1.584" | Up To 10 psi | - | T Handle | €77.26 | |
| 52005 | 2" | 1 23/25" | 2.14" | Zinc-Plated Steel | 1.92" to 2.142" | Up To 5 psi | - | T Handle | €104.02 |
