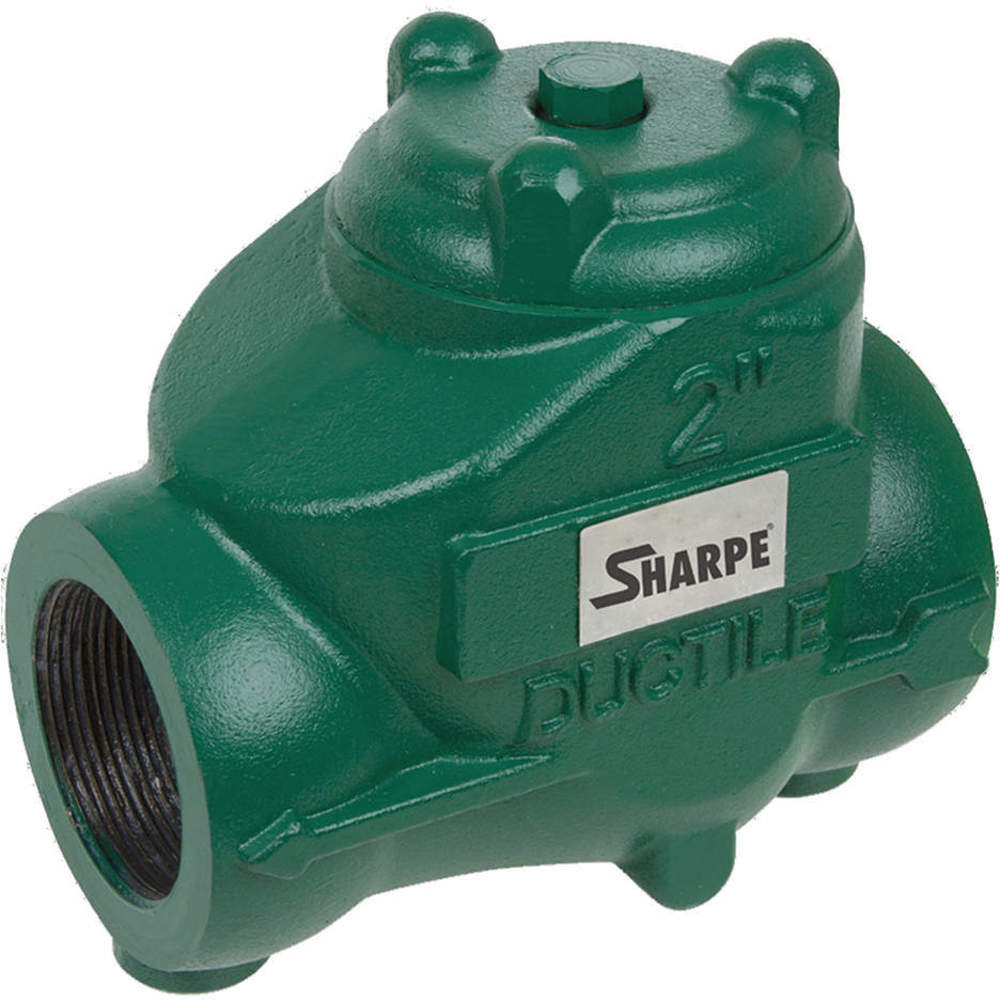

SHARPE VALVES SVOP20DB6VV010 Oil Patch Swing Check Valve Ductile Iron
Item: AC7ZURModel: SVOP20DB6VV010Cross Ref: 39C404
7 In Stock
Ships within 2 days via
10.00% off
€171.48 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Oil Patch Swing Check Valve |
| 3-a Compliance | Not Rated |
| Body Material | Ductile Iron |
| Check Mechanism | Swing |
| Connection Gender - Side 1 | Female |
| Connection Gender - Side 2 | Female |
| Connection Size - Side 1 | 1" |
| Connection Size - Side 2 | 1" |
| Connection Type | FNPSM x FNPSM |
| Connection Type - Side 1 | NPSM |
| Connection Type - Side 2 | Npsm |
| Cracking Pressure | 0 psi |
| Disc Material | Stainless Steel |
| Flow Rate | 24 GPM |
| For Media | Oil |
| Grade | Grade 316 |
| Includes Counterweight | No Counterweight |
| Length | 4 1/4" |
| Material | Ductile Cast Iron |
| Max. Pressure (cwp) | 2000 psi |
| Max. Pressure (steam) | Not Rated |
| Max. Temp. | 0°F to +280°F |
| Media Temperature Range | 0°F to 280°F |
| Mounting Orientation | Horizontal |
| Mounting Position | Horizontal |
| Operating Temperature - Maximum | 280°F |
| Operating Temperature - Minimum | 0°F |
| Overall Length | 4.25" |
| Pipe Size | 1" |
| Seal Material | FKM |
| Seat Material | Rubber |
| Silent Check | Standard |
| Size | 1" |
| Temp. Range | 0°F to +280°F |
| Vacuum Service Rating | Not Rated |
| Valve Body Style | Inline |
| Valve Series | OP20 Series |
| Valve Ways | 2-Way |
Shipping Info:
| Ship weight (kg) | 2.93 |
| Ship height (cm) | 14.22 |
| Ship length (cm) | 13.46 |
| Ship width (cm) | 13.97 |
| HS code | 8481302010 |
| Country of Origin | CN |
Product Variants
| Model | Body Material | Pipe Size | Flow Rate | Connection Type | Max. Temp. | Seat Material | Cracking Pressure | Seal Material | Price | |
|---|---|---|---|---|---|---|---|---|---|---|

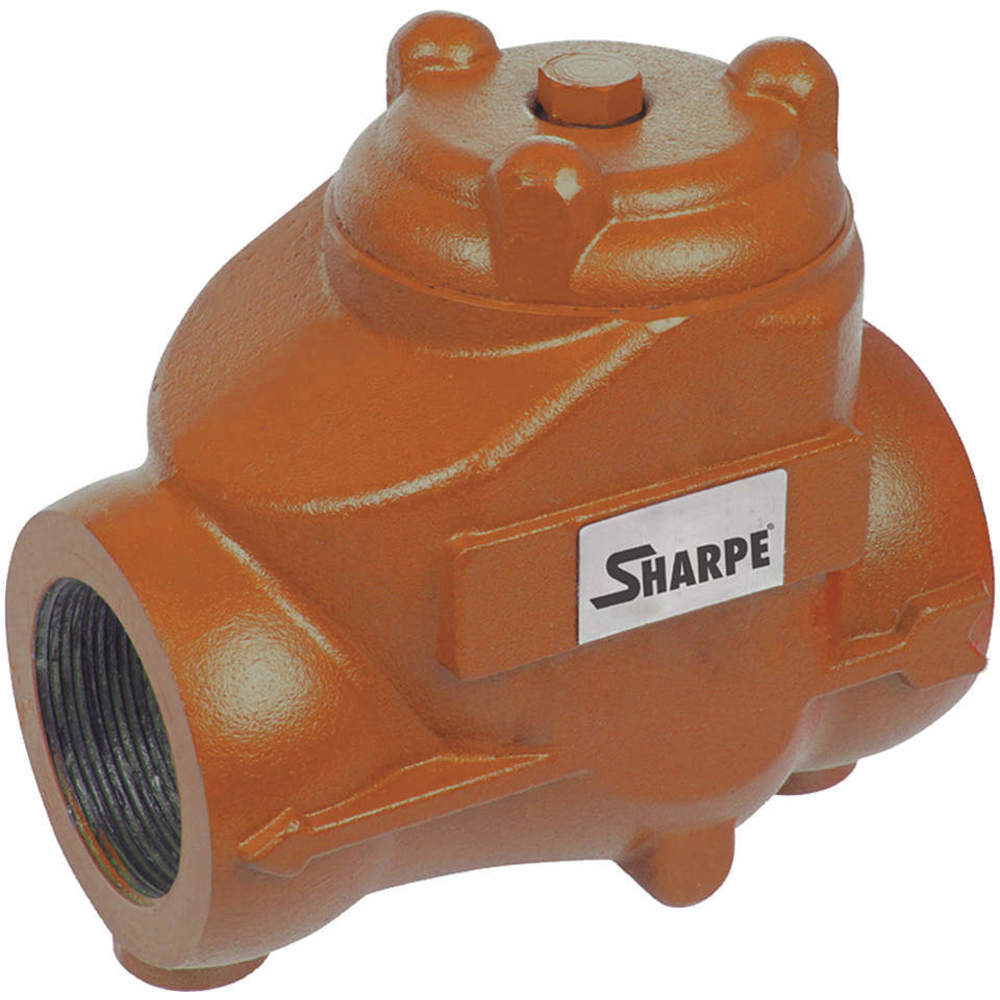

| SVOP20CC6VV020 | Carbon Steel | 2" | 100 GPM | FNPSM x FNPSM | 0°F to +280°F | Rubber | 0 psi | FKM | €410.64 | |
| SVOP20CC6VV030 | Carbon Steel | 3" | 225 GPM | FNPSM x FNPSM | 0°F to +280°F | Rubber | 0 psi | FKM | €664.00 | |
| SVOP20DB6VV020 | Ductile Iron | 2" | 100 GPM | FNPSM x FNPSM | 0°F to +280°F | Rubber | 0 psi | FKM | €312.95 | |
| SVOP20DB6VV030 | Ductile Iron | 3" | 225 GPM | FNPSM x FNPSM | 0°F to +280°F | Rubber | 0 psi | FKM | €572.19 | |
| SVOP20DB6VV040 | Ductile Iron | 4" | 400 GPM | FNPSM x FNPSM | 0°F to +280°F | Rubber | 0 psi | FKM | €1,236.87 |
