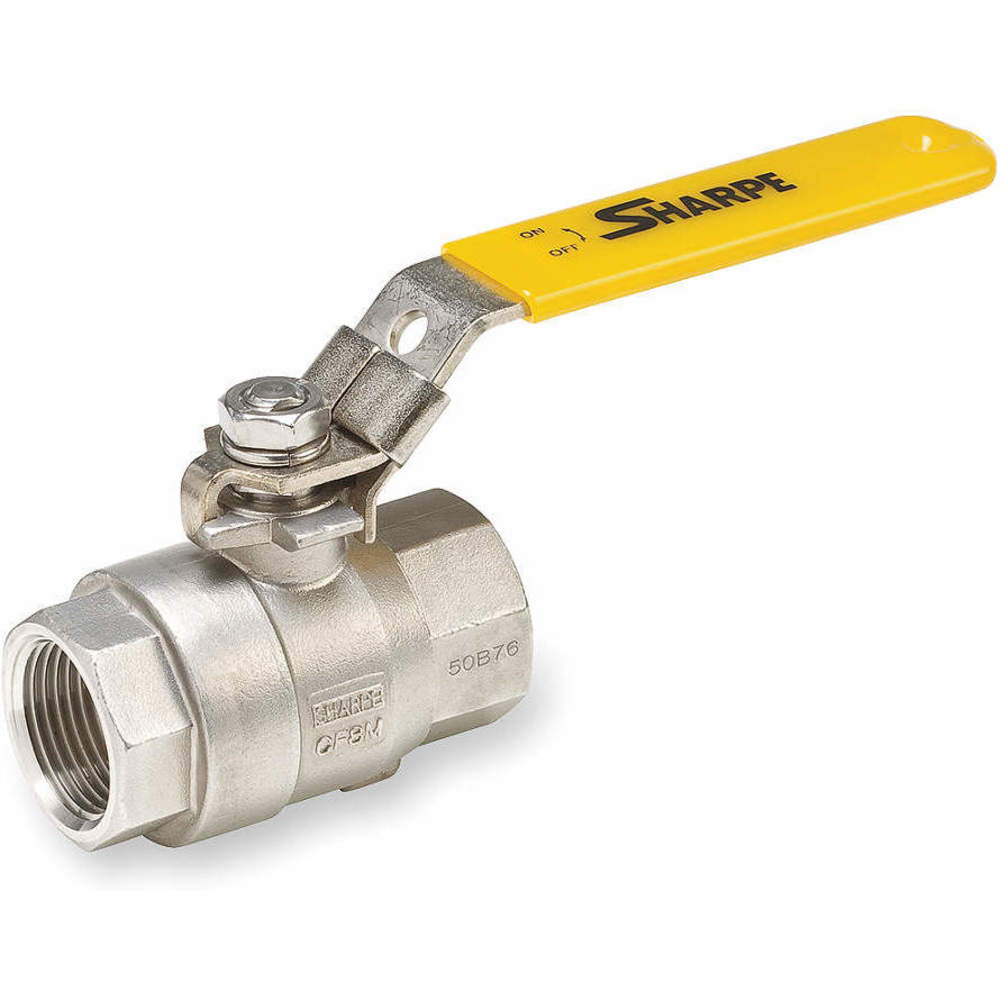

SHARPE VALVES SV50C76002 Stainless Steel Ball Valve Fnpt 1/4 In
Item: AD2CBKModel: SV50C76002Cross Ref: 3MRD6
7 In Stock
Ships within 2 days via
13.00% off
€153.81 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Ball Valve |
| 3-a Certified | Not Rated |
| Ball Material | Stainless Steel |
| Ball Port Style | Full Port |
| Ball Valve Product Group | Manual |
| Body Material | Stainless Steel |
| Body Style | Inline |
| Coefficient Of Volume | 7 |
| Connection Gender Side 2 | Female |
| Connection Gender-side 1 | Female |
| Connection Size-side 1 | 1/4" |
| Connection Size-side 2 | 1/4" |
| Connection Type | FNPT x FNPT |
| Connection Type-side 1 | NPT |
| Connection Type-side 2 | NPT |
| For Media | Air, Corrosive Chemicals, Non-Potable Water |
| Grade | Grade 316 |
| Handle | Locking Lever |
| Handle Color | Yellow |
| Handle Finish | Zinc Plated |
| Handle Height | 1 1/4" |
| Handle Length | 3.7" |
| Handle Material | Stainless Steel |
| Handle Type | Lever |
| Handle-locking | Locking |
| Included Mounting | Iso 5211 Actuator Mounting Pad |
| Max. Media Temp. | 200°F |
| Max. Pressure | 3000 psi WOG |
| Max. Pressure (cwp) | 3000 psi |
| Max. Pressure-combustible Gas | Not Rated |
| Media Temp. | 0°F to 200°F |
| Min. Media Temp. | 0°F |
| No. Of Pieces | 2 |
| Nominal Valve Size | 1/4" |
| Overall Length | 2.52" |
| Pipe Size | 1/4" |
| Port | Full |
| Pressure For Water | 3000 psi WOG |
| Seal Material | PTFE |
| Seat Material | Delrin, PEEK |
| Stem Grade | Grade 316 |
| Stem Material | Stainless Steel |
| Stem Type | Blowout Resistant |
| Temp. | 0°F to +200°F |
| Vacuum Service Rating | 29 in. hg |
| Valve Body Style | Straight |
| Valve Construction | Two-Piece |
| Valve Series | 50C |
Shipping Info:
| Ship weight (kg) | 0.41 |
| Ship height (cm) | 5.08 |
| Ship length (cm) | 15.24 |
| Ship width (cm) | 7.62 |
| HS code | 8481803070 |
| Country of Origin | TW |
