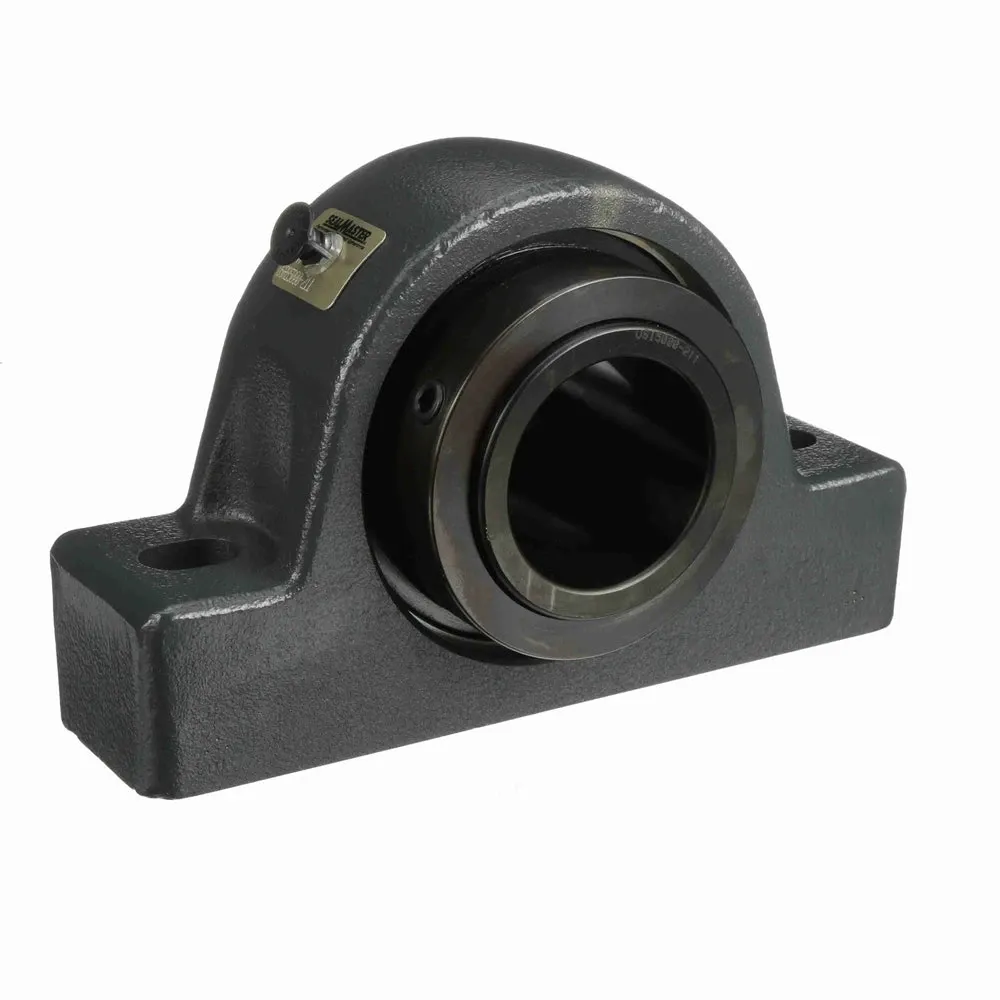

SEALMASTER USRB5000-211 Mounted Cast Iron Two Bolt Pillow Block Spherical Roller
Get it by Monday, Aug 31
€970.46 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Angle Of Misalignment | -2° to +2° |
| Base Height | 2 1/4" |
| Base Width | 2.813" |
| Bearing Design | Non Expansion |
| Bearing Insert Coating | Black Oxide |
| Bearing Insert Material | Bearing Steel |
| Bearing Insert Material Grade | Grade 52100 |
| Bearing Lubrication | Lithium Complex NLGI 2 Grease |
| Bearing Type | Spherical Roller |
| Bolt Center To Center Length | 8 1/8" |
| Bolt Hole | 2 |
| Bolt Size | 3/4" |
| Bore Dia. | 2.688" |
| Bore Shape | Straight |
| Bore Type | Round |
| Centerline To Front Face | 2 9/25" |
| Collar Outside Dia. | 4 13/25" |
| Duty Type | Standard Duty |
| Dynamic Radial Load Capacity | 47447 lbs. |
| Expansion Type | Non-Expansion Bearing (Fixed) |
| Family Series | Sealmaster Bearings, USRB Series |
| Finish, Coating | Uncoated |
| Foot Height | 2 1/4" |
| Housing Color | Gray |
| Housing Construction | One Piece |
| Housing Height | 6 7/16" |
| Inner Race Length | 3.688" |
| Insert Material | 52100 Bearing Steel, Black Oxided |
| Length Through Bore | 3 3/4" |
| Locking Device | Collar Mount |
| Max. Bolt | 8.438" |
| Max. Bolt Hole Spacing | 8 7/16" |
| Max. Operating Temp. | 220°F |
| Max. Temp. | 250°F |
| Min. Bolt Center | 7.813" |
| Min. Bolt Hole Spacing | 7 13/16" |
| Misalignment Type | Dynamic |
| Mounting Type | 2-Bolt Base |
| Overall Height | 6.438" |
| Overall Length | 10.438" |
| Pillow Block Type | 2 Bolt |
| Retainer Material | Steel |
| Retainer Type | Metal |
| Seal Type | Felt Labyrinth |
| Series | USRB Series |
| Temp. | Up To 220°F |
Shipping Info:
| Ship weight (kg) | 10.67 |
| Ship height (cm) | 16.35 |
| Ship length (cm) | 26.51 |
| Ship width (cm) | 9.84 |
Product Variants
| Product | Model | Seal Type | Locking Device | Bolt Size | Overall Height | Base Width | Bore Dia. | Bearing Type | Bore Type | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
USRB5000-408-C | Double Lip Contact | Double Collar Mount | - | - | - | - | - | - | €3,039.74 | |
 |
USRB5000-107 | Felt Labyrinth | Collar Mount | 1/2" | 3 7/8" | 2.188" | 1.438" | Spherical Roller | Round, Straight | €377.98 | |
 |
USRB5000-407-C | Double Lip Contact Seal | Double Collar Set Screw | 3/4" | 9 3/8" | 4 5/8" | 4 7/16" | Four Bolt Pillow Block | Round, Straight | €3,298.90 | |
 |
USRB5000-111-C | Double Lip Contact Seal | Collar Mount Set Screw | 1/2" | 4 1/4" | 2.188" | 1 11/16" | Two Bolt Pillow Block | Round, Straight | €452.01 | |
|
USRB5000-415 | Standard Felt Seal | Double Collar Set Screw | 7/8" | 10 7/8" | 5 1/8" | 4 15/16" | Four Bolt Pillow Block | Round, Straight | €4,559.25 | |
 |
USRB5000-307-C | Double Lip Contact | Collar Mount | 7/8" | 7 1/2" | 3.188" | 3 7/16" | Spherical Roller | Round, Straight | €1,397.13 | |
 |
USRB5000-307 | Felt Labyrinth | Collar Mount | 7/8" | 7 1/2" | 3.188" | 3 7/16" | Spherical Roller | Round, Straight | €1,397.13 |
