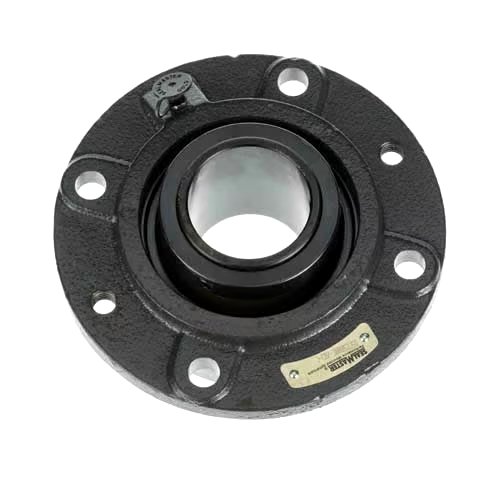

SEALMASTER USFC5000E-203-C
Get it by Wednesday, Aug 26
€676.72 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Angle Of Misalignment | -2° to +2° |
| Bearing Design | Expansion |
| Bearing Type | Spherical Roller |
| Bolt Hole Size Dimension | 1/2" |
| Bolt Hole Spacing | Not Available |
| Bolt Size | 1/2" |
| Bore Dia. | 1 3/16" |
| Bore Size | 2.188" |
| Centerline To Front Face | 1.656" |
| Collar Outside Dia. | 3 1/4" |
| Duty Type | Standard Duty |
| Dynamic Radial Load Capacity | 28087 lbs. |
| End Type | Open End |
| Expansion Type | Expansion Bearing (Floating) |
| Family Series | Sealmaster Bearings, USF Series |
| Flange Thickness | 17/32" |
| Housing Color | Gray |
| Housing Construction | One Piece |
| Housing Length | 7 1/8" |
| Housing Material | Cast Iron |
| Housing Width | 2 3/8" |
| Insert Material | Bearing Steel, Black Oxided |
| Insert Material | 52100 Bearing Steel, Black Oxided |
| Locking Device | Setscrew Locking Collar |
| Locking Type | Collar Mount |
| Max. Operating Temp. | 220°F |
| Max. Temp. | 250°F |
| Misalignment Angle | -2° to +2° |
| Misalignment Type | Dynamic |
| Operating Temp. Range | -20°F to +220°F |
| Overall Width | 1.578" |
| Pilot Configuration | No Pilot |
| Pilot Depth | 1 15/32" |
| Pilot Dia. | 5" |
| Replaceable Insert | No |
| Retainer Material | Steel |
| Retainer Type | Metal |
| Seal Type | Double Lip Contact |
| Series | USF Series |
Shipping Info:
| Ship weight (kg) | 4.73 |
| Ship length (cm) | 7.94 |
| Ship width (cm) | 4.01 |
Product Variants
| Model | Seal Type | Bore Dia. | Locking Device | Bolt Size | Overall Width | Pilot Dia. | Dynamic Radial Load Capacity | Bolt Circle Dia. | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| USFC5000E-211-C | Double Lip Contact | 2 11/16" | Concentric Collar | 5/8" | 1.9844" | 6 3/8" | 47447 lbs. | 7 1/2" | €1,163.80 | |
| USFC5000E-111 | Felt Labyrinth Seal | 1 11/16" | Concentric Collar | 7/16" | 1.4219" | 4 1/4" | 22689 lbs. | 5 1/8" | €560.36 | |
| USFC5000E-303-C | Double Lip Contact | 3 3/16" | Concentric Collar | 3/4" | 2.4063" | 7 3/8" | 72640 lbs. | 8 5/8" | €1,650.69 | |
| USFC5000E-303 | Felt Labyrinth Seal | 3 3/16" | Concentric Collar | 3/4" | 2.4063" | 7 3/8" | 72640 lbs. | 8 5/8" | €1,650.69 | |
| USFC5000E-311-C | Double Lip Contact | 3 11/16" | Concentric Collar | 3/4" | 2.6563" | 8 1/8" | 96050 lbs. | 9 3/8" | €2,386.53 | |
| USFC5000E-115-C | Double Lip Contact | 1 15/16" | Concentric Collar | 7/16" | 1.3906" | 4 1/2" | 23520 lbs. | 5 3/8" | €623.82 | |
| USFC5000E-211 | Felt Labyrinth Seal | 2 11/16" | Concentric Collar | 5/8" | 1.9844" | 6 3/8" | 47447 lbs. | 7 1/2" | €1,163.80 |
