SEALMASTER TXP-35 714372 Pillow Block Bearing, 2 Bolt, 2.1875 Inch Dia, Eccentric Locking, Spring Loaded Seal
Get it by Tuesday, Dec 23
€495.63 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Pillow Block Bearing |
| Ability To Relubricate | Yes |
| Base Length | 10.15" |
| Base To Center Height | 2 3/4" |
| Base Width | 3.13" |
| Bearing Insert Finish | Black Oxide |
| Bearing Insert Material | Steel |
| Bearing Insert Material Grade | 52100 |
| Bearing Insert Type | Standard Duty |
| Bolt Size | 3/4" |
| Bolt Spacing Max | 7.94" |
| Bolt Spacing Min | 6 14/25" |
| Bore Dia. | 2 3/16" |
| Bore Shape | Straight |
| Cage Material | Polyphenylene Sulfide |
| Cage Type | Land Riding Retainer |
| Centerline To Outermost Bearing Face | 1.719" |
| Dynamic Load Capacity | 9752 lbs. |
| End Cap | No |
| Fixed Vs. Expansion | Fixed |
| Foot Height | 1.06" |
| Grease Fitting Thread Size | 1/8" |
| Grease Fitting Thread Type | NPT |
| Housing Base | Solid |
| Housing Coating | Powder Coated |
| Housing Color | Black |
| Housing Construction | One Piece |
| Housing Material | Cast Iron |
| Housing Style | Pillow Block |
| Housing Type | Pillow Block, Two Bolt |
| Htc | 8483.20.8040 |
| Inner Race Heat Treat Method | Zone Hardened |
| Inner Ring Outside Diameter | 2.719" |
| Insert | TX-35 |
| Length Through Bore | 2.813" |
| Locking Collar Outside Diameter | 3" |
| Lubrication Type | Lithium Complex NLGI 2 Grease |
| Max. Operating Temperature | 220°F |
| Max. Speed | 3250 RPM |
| Misalignment Capability | -2° to +2° |
| Misalignment Type | Static Only |
| Outer Ring Land Profile | Standard |
| Overall Height | 5.63" |
| Overall Length | 10.15" |
| Overall Width | 3.13" |
| Radial Clearance | Standard |
| Rolling Element | Ball Bearing |
| Seal Type | Single Lip Contact Seal |
| Shaft Locking Type | Eccentric |
| Size Code | 2-23 |
| Static Load Rating | 6601 lbs. |
| Vibration Frequency Fundamental Train | 0.0068 cPS |
| Vibration Frequency Inner Ring Defect | 0.0987 cPS |
| Vibration Frequency Outer Ring Defect | 0.068 cPS |
| Vibration Frequency Roller Spin | 0.0437 cPS |
Shipping Info:
| Ship weight (kg) | 7.29 |
| Ship height (cm) | 16.03 |
| Ship length (cm) | 28.27 |
| Ship width (cm) | 8.1 |
| Country of Origin | US |
Product Variants
| Product | Model | Bore Dia. | Overall Length | Overall Width | Overall Height | Insert | Max. Speed | Bolt Size | Seal Type | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |

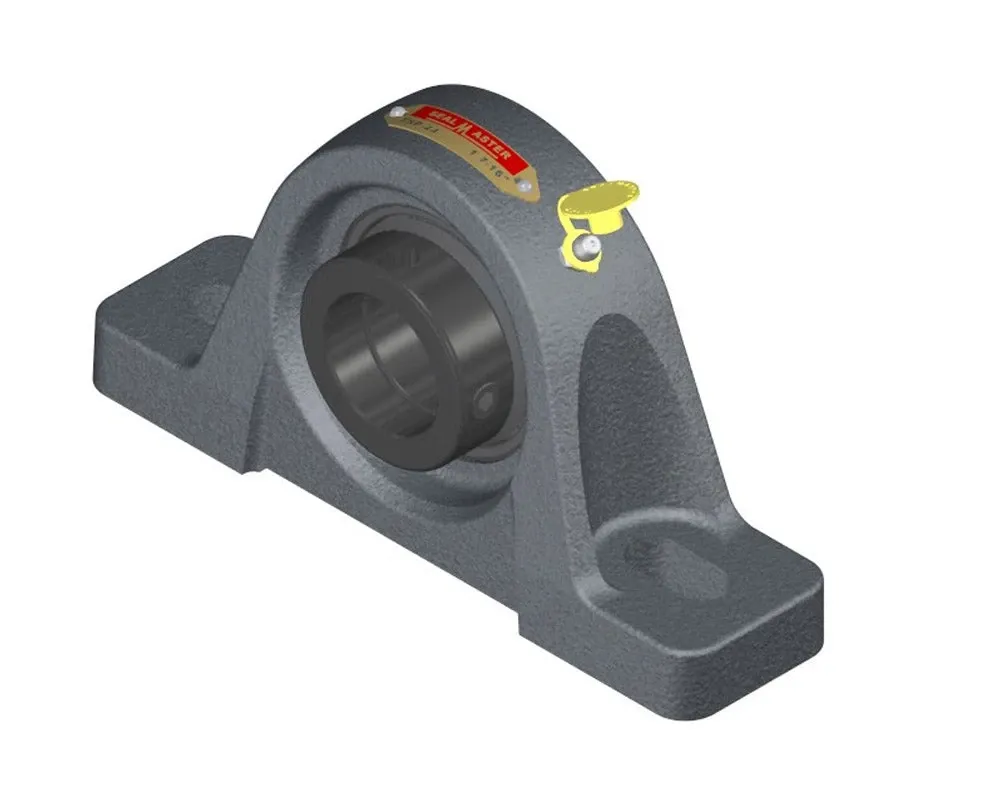

TX-35 | - | - | - | - | - | - | - | - | €1,153.33 | |
 |
TX-39 | - | - | - | - | - | - | - | - | €336.52 | |
|

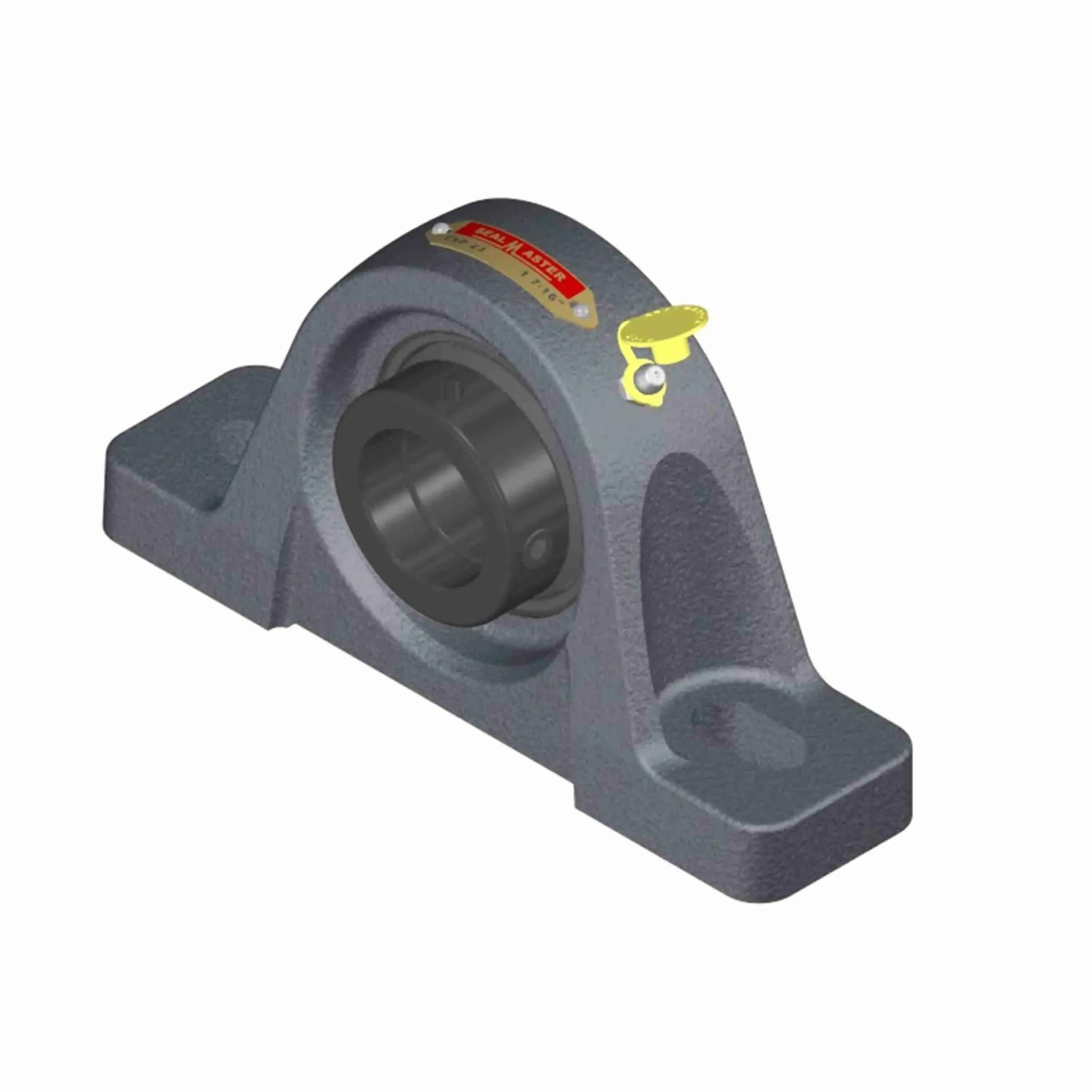

TXP-23 | 1 7/16" | 7.94" | 2.03" | 4.19" | TX-23 | 2000 RPM | 1/2" | V Spring Seal Seal | €293.77 | |
|
TXP-39 | 2 7/16" | 11.15" | 3 1/4" | 6 1/4" | TX-39 | 2550 RPM | 3/4" | V Spring Seal Seal | €595.52 | |
|
TX-23 | - | - | - | - | - | - | - | - | €172.42 | |
 |
TXP-207 | - | - | - | - | - | - | - | - | €320.19 |
