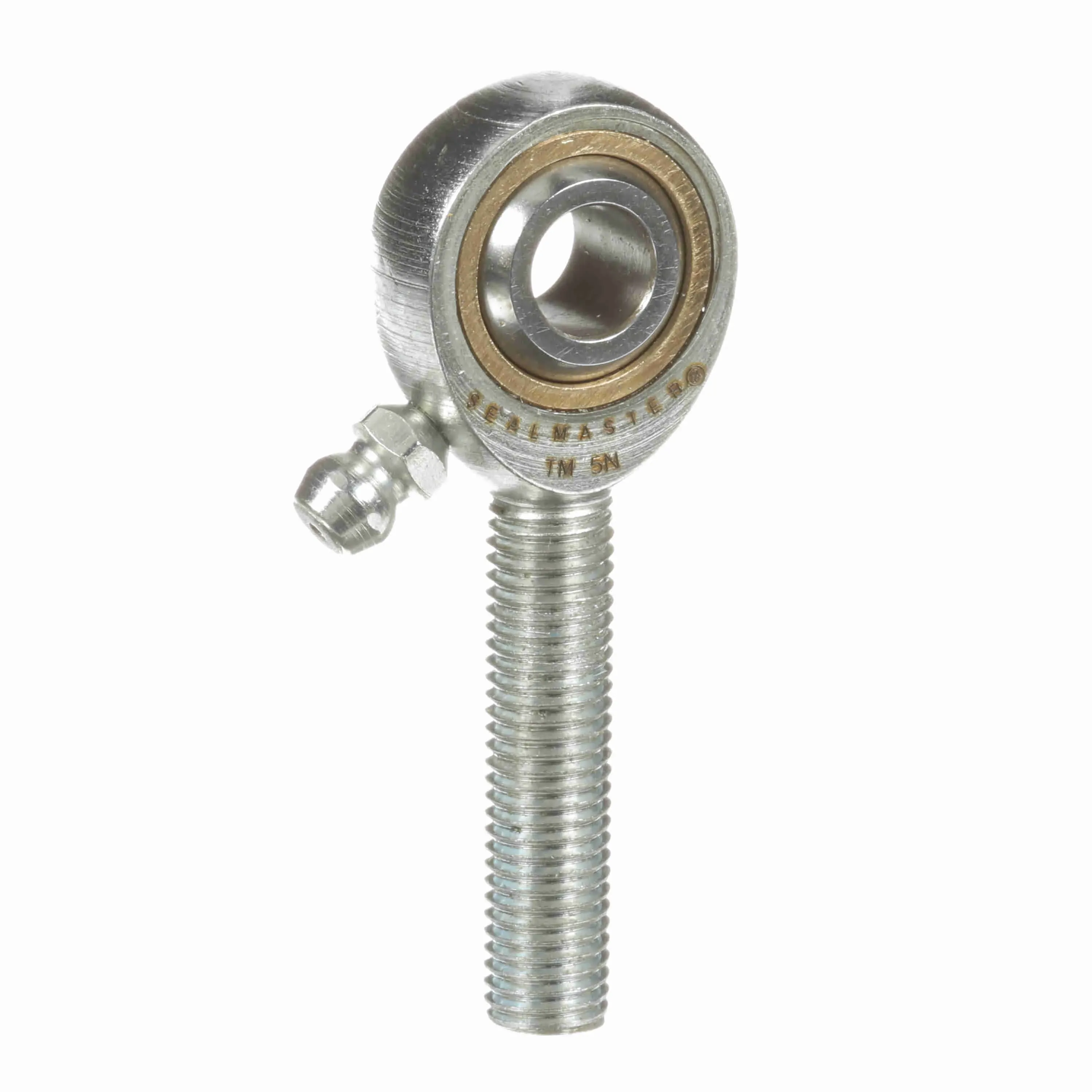

SEALMASTER TM 5N 1420501000 Rod End Bearing, 5/16 Inch Bore, 11/32 Inch Housing Width, Male, 5/16-24 UNF, Right Hand
Get it by Tuesday, Dec 23
€26.12 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Rod End Bearing |
| Ability To Relubricate | Yes |
| Axial Load | 250 |
| Ball Diameter | 5/8" |
| Ball Finish | Chrome Plated |
| Ball Flat Diameter | 0.447" |
| Ball Material | Alloy Steel |
| Ball Width | 0.437" |
| Bearing Insert Type | Rod End |
| Bore Dia. | 5/16" |
| Class | Commercial |
| Configuration | Male |
| Construction | Three Piece Rod End With Zerk Fitting |
| Head Diameter | 7/8" |
| Housing Style | Male Rod End |
| Housing Width | 0.344" |
| Htc | 8483.30.8055 |
| Length To Center Of Ball | 1 22/25" |
| Lubrication | Zerk Fitting |
| Lubrication Method | Fitting |
| Lubrication Type | Grease |
| Max Static Radial Load | 2500 |
| Max. Ambient Temp. | 350°F |
| Misalignment Angle | -7° to +7° |
| Outer Material | Carbon Steel |
| Outer Material Property | Corrosion Resistant Plating |
| Product Selection Available Sw | Yes |
| Product Type | TM |
| Race Material | Bronze |
| Series | Commercial Series |
| Thread Direction | RH |
| Thread Length | 1.219" |
| Thread Size | 5/16"-24 |
| Thread Type | UNF |
| Type | Male Rod End |
| Zerk Fitting Sw | Yes |
Shipping Info:
| Ship weight (kg) | 0.23 |
| Ship height (cm) | 5.59 |
| Ship length (cm) | 13.08 |
| Ship width (cm) | 1.65 |
| Country of Origin | MX |
Product Variants
| Product | Model | Bore Dia. | Ball Diameter | Bore Diameter | Ball Material | Race Material | Type | Price | |
|---|---|---|---|---|---|---|---|---|---|
 |
TM 10YN | 5/8" | - | - | Alloy Steel | Bronze | - | €71.87 | |
 |
TM 4 | - | 1/2" | 1/4" | Alloy Steel | Bronze | Male Rod End | €17.01 | |
 |
TM 6 | 3/8" | 0.718" | - | Alloy Steel | Bronze | Male Rod End | €19.80 | |
|
TM 4Y | - | - | - | - | - | - | €21.23 | |
 |
TML 7 | 7/16" | 0.812" | - | Alloy Steel | Bronze | Male Rod End | €24.39 | |
 |
TM 7 | 7/16" | 0.812" | - | Alloy Steel | Bronze | Male Rod End | €21.40 | |
|
TM 4YN | - | - | 1/4" | Alloy Steel | Bronze | - | €25.57 |
