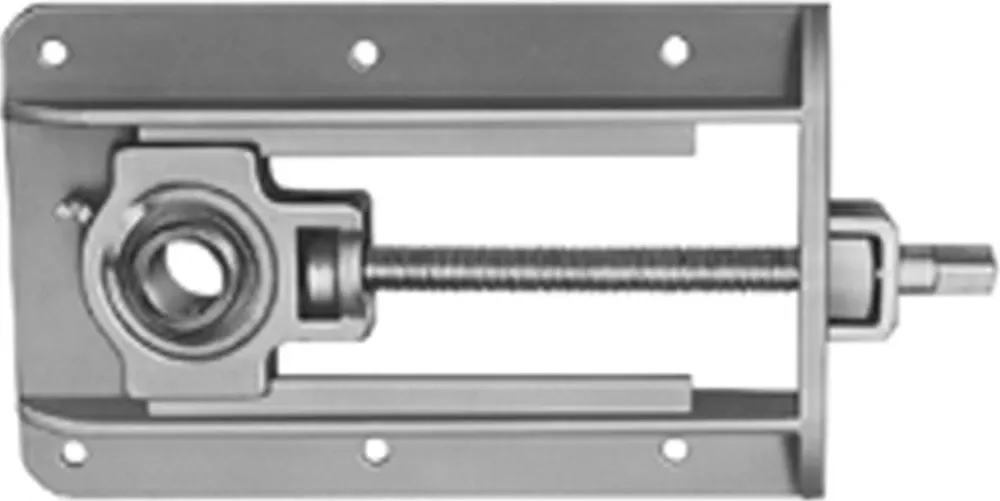

SEALMASTER STH-20-9 Take Up Bearing, 1.25 Inch Dia, Setscrew Locking, Cast Iron Housing, Standard Felt Seal
1 1/4"
9"
N/A
Get it by Tuesday, Sep 1
€696.74 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Take Up Bearing |
| Angle Of Misalignment | -2° to +2° |
| Bearing Insert Coating | Black Oxide |
| Bearing Material | Black Oxided Bearing Steel |
| Bearing Type | Ball Bearing |
| Bolt Size | 3/8" |
| Bore Shape | Straight |
| Duty Type | Standard Duty |
| Family Series | Sealmaster Bearings, STH Series |
| Finish, Coating | Coated |
| Frame Base Width | 8.0625 |
| Frame Overall Length | 16.875 |
| Frame Type | Center Pull Wide Slot |
| Housing Construction | One Piece |
| Housing Type | Wide-Slot Takeup |
| Housing Width | 2 1/2" |
| Inner Race Heat Treat Method | Zone Hardened |
| Insert Material | 52100 Bearing Steel, Black Oxided |
| Insert No. | 2 14 |
| Locking Device | Set Screw |
| Locking Type | Set Screws |
| Max. Operating Temp. | 220°F |
| Max. Speed | 4650 RPM |
| Misalignment Type | Static Only |
| Operating Temp. Range | Max. 220°F |
| Overall Length | 19 11/16" |
| Retainer Type | Land Riding |
| Seal Type | Felt Labyrinth |
| Series | STH Series |
| Shaft Height | 6.563" |
Shipping Info:
| Ship weight (kg) | 8.15 |
| Ship height (cm) | 4.45 |
| Ship length (cm) | 42.86 |
| Ship width (cm) | 20.47 |
Product Variants
| Product | Model | Overall Width | Overall Length | Seal Type | Retainer Type | Max. Speed | Bore Dia. | Locking Type | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
 |
STH-28T-12 | - | - | Standard Felt Seal | Metal Land Riding | - | - | - | €3,738.23 | |
 |
STH-19-9 | 8.06" | - | Standard Felt Seal | - | - | - | - | €675.00 | |
 |
STH-27-12 | - | - | Standard Felt Seal | Metal Land Riding | - | - | - | €1,016.49 | |
 |
STH-12-6 | - | - | Standard Felt Seal | Metal Land Riding | - | - | - | €1,215.23 | |
 |
STH-19C-6 | - | - | Contact Seal | Metal Land Riding | - | - | - | €783.28 | |
 |
STH-34-12 | - | - | Standard Felt Seal | Metal Land Riding | - | - | - | €5,946.59 | |
|
STH-16-6 | - | - | Standard Felt Seal | Metal Land Riding | - | - | - | €668.78 |
