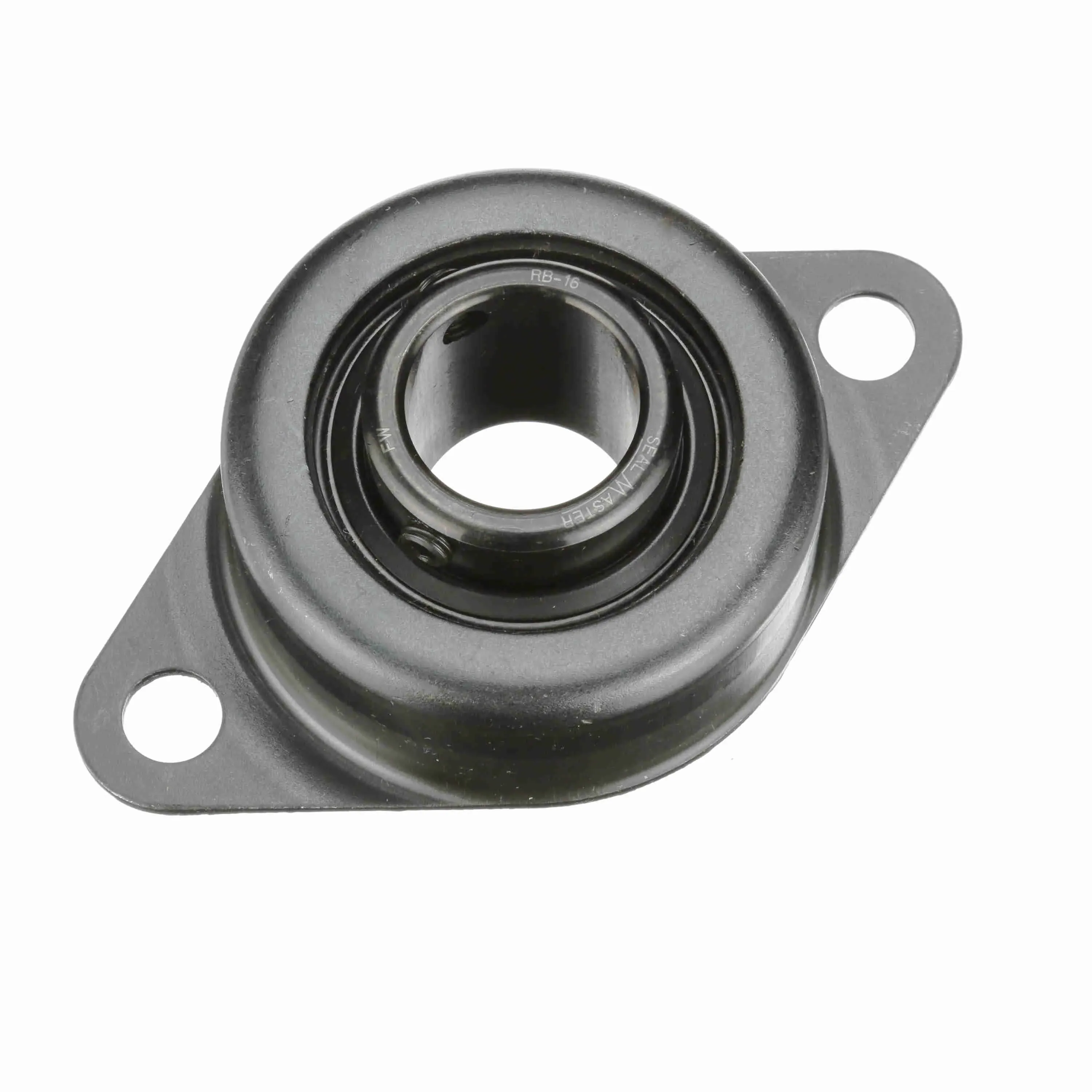

SEALMASTER SRF-16 700669 Flange Bearing, 2 Bolt, 1 Inch Bore, Steel, Set Screws, 4-1/2 Inch Length, Rhombus
Item: BF9HWRModel: SRF-16Cross Ref: 44A590 / 700669
7 In Stock
Ships within 2 days via
5.00% off
€339.24 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Ability To Relubricate | No |
| Bearing Insert Finish | Black Oxide |
| Bearing Insert Material | Steel |
| Bearing Insert Material Grade | 52100 |
| Bearing Insert Type | Standard Duty |
| Bearing Material Grade | Grade 52100 |
| Bolt Size | 3/8" |
| Bolt Spacing | 3 5/8" |
| Bore Dia. | 1" |
| Bore Shape | Straight |
| Bore Type | Cylindrical |
| Cage Material | Polyphenylene Sulfide |
| Cage Type | Land Riding Retainer |
| Closure | Double Sealed |
| Dynamic Load Capacity | 2801 lbs. |
| End Cap | No |
| Expansion Type | Fixed |
| Features | Lock Pin And Dimple For Direct Lubrication And Anti Rotation |
| Fixed Vs. Expansion | Fixed |
| Foot Height | 0.06" |
| Housing Color | Silver |
| Housing Construction | One Piece |
| Housing Material | Stamped Steel |
| Housing Material Finish | Black Oxide |
| Housing Material Grade | 52100 |
| Housing Style | Flange Block |
| Housing Type | Flange, Two Bolt |
| Htc | 8483.20.4040 |
| Included | Set Screw |
| Inner Race Heat Treat Method | Zone Hardened |
| Insert | SRC-16 |
| Inside Ring Outside Dia. | 1 3/8" |
| Length Through Bore | 1 3/8" |
| Lubricant Material | Nlgi #2 Equivalent |
| Lubrication Openings | None |
| Lubrication Type | Lithium Complex NLGI 2 Grease |
| Max. Operating Temp. | 220°F |
| Max. Speed | 6350 RPM |
| Max. Temp. | 220°F |
| Min. Temp. | -20°F |
| Misalignment Type | Static Only |
| Mount Hole Center To Center Height | 3 5/8" |
| Mount Hole Center To Center Length | 3 5/8" |
| Mount Hole Size | 7/16" |
| Mounting Bolt Size | 7/16" |
| No. Of Mount Holes | 2 |
| Outer Ring Land Profile | Standard |
| Overall Height | 1 3/8" |
| Overall Length | 4 1/2" |
| Overall Width | 2.7" |
| Pilot Configuration | No Pilot |
| Radial Clearance | Standard |
| Rolling Element | Ball Bearing |
| Rolling Element Rows | 1 |
| Seal Material | Felt |
| Seal Type | Felt Labyrinth Seal |
| Self Lubricating Bearing | No |
| Setscrew Torque | 85 lbs.-in. |
| Shaft Locking Type | Set Screw |
| Size Code | 2-015 |
| Static Load Rating | 1651 lbs. |
| Static Radial Load Capacity | 240 lbf. |
| Vibration Frequency Fundamental Train | 0.0068 cPS |
| Vibration Frequency Inner Ring Defect | 0.0985 cPS |
| Vibration Frequency Outer Ring Defect | 0.0682 cPS |
| Vibration Frequency Roller Spin | 0.0442 cPS |
Shipping Info:
| Ship weight (kg) | 0.38 |
| Ship height (cm) | 3.81 |
| Ship length (cm) | 10.16 |
| Ship width (cm) | 10.01 |
| Country of Origin | US |
Product Variants
| Product | Model | Seal Type | Housing Material | Bore Dia. | Housing Type | Rolling Element | Overall Height | Overall Width | Bearing Insert Material | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
SRF-15C | Contact Seal | - | - | Two Bolt Flange | Ball | - | - | - | €134.17 | |
 |
SRF-12 | Felt Labyrinth Seal | Stamped Steel | 3/4" | Flange, Two Bolt | Ball Bearing | 1 3/8" | 2.7" | Steel | €266.28 | |
|
SRF-16C | Contact Seal | - | - | Two Bolt Flange | Ball | - | - | - | €149.31 | |
 |
SRF-20RC | Single Lip Contact Seal | Stamped Steel | 1 1/4" | Flange, Two Bolt | Ball Bearing | 1.656" | 3 1/4" | Steel | €150.12 | |
 |
SRF-10 | Felt Labyrinth Seal | Stamped Steel | 5/8" | Flange, Two Bolt | Ball Bearing | 1 3/8" | 2.7" | Steel | €326.29 | |
 |
SRF-20R | Felt Labyrinth Seal | Stamped Steel | 1 1/4" | Flange, Two Bolt | Ball Bearing | 1.667" | 3 1/4" | Steel | €370.78 | |
 |
SRF-14C | Contact Seal | - | - | Two Bolt Flange | Ball | - | - | - | €156.44 |
