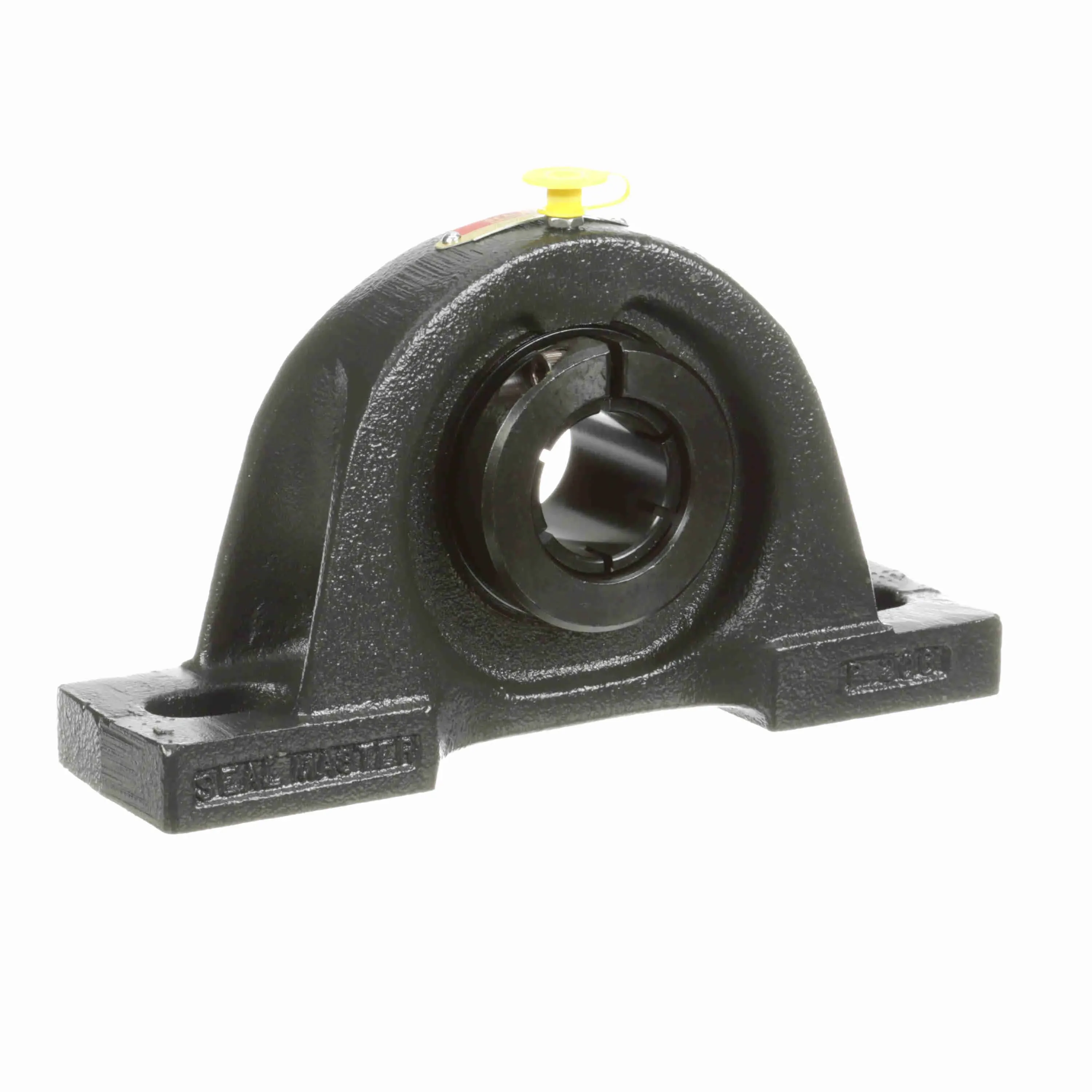

SEALMASTER SP-20T 705516 Pillow Block Bearing, 2 Bolt, 1.25 Inch Dia, Skwezloc Locking, Standard Felt Seal
Get it by Tuesday, Sep 1
€723.36 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Pillow Block Bearing |
| Ability To Relubricate | Yes |
| Base Length | 8 1/4" |
| Base To Center Height | 2 3/8" |
| Base Width | 2 1/4" |
| Bearing Insert Finish | Black Oxide |
| Bearing Insert Material | Steel |
| Bearing Insert Material Grade | 52100 |
| Bearing Insert Type | Standard Duty |
| Bolt Size | 5/8" |
| Bolt Spacing | 6 1/4" |
| Bore Dia. | 1 1/4" |
| Bore Shape | Straight |
| Cage Material | Polyphenylene Sulfide |
| Cage Type | Land Riding Retainer |
| Centerline To Outermost Bearing Face | 1 3/25" |
| Dynamic Load Capacity | 5782 lbs. |
| End Cap | No |
| Fixed Vs. Expansion | Fixed |
| Foot Height | 3/4" |
| Grease Fitting Thread Size | 1/4"-28 |
| Housing Base | Solid |
| Housing Coating | Powder Coated |
| Housing Color | Black |
| Housing Construction | One Piece |
| Housing Material | Cast Iron |
| Housing Style | Pillow Block |
| Housing Type | Pillow Block, Two Bolt |
| Htc | 8483.20.8040 |
| Inner Race Heat Treat Method | Zone Hardened |
| Insert | 2-14T |
| Inside Ring Outside Dia. | 1.851" |
| Length Through Bore | 1.81" |
| Locking Collar Outside Dia. | 2 1/2" |
| Lubrication Type | Lithium Complex NLGI 2 Grease |
| Max. Bolt Spacing | 6 22/25" |
| Max. Operating Temp. | 220°F |
| Max. Speed | 6500 RPM |
| Min. Bolt Spacing | 5.63" |
| Misalignment Capability | -2° to +2° |
| Misalignment Type | Static Only |
| Outer Ring Land Profile | Standard |
| Overall Height | 4 1/2" |
| Overall Length | 8 1/4" |
| Overall Width | 2 1/4" |
| Radial Clearance | Standard |
| Rolling Element | Ball Bearing |
| Seal Type | Felt Labyrinth Seal |
| Shaft Locking Type | Concentric |
| Size Code | 2-17 |
| Static Load Rating | 3493 lbs. |
| Vibration Frequency Fundamental Train | 0.0066 cPS |
| Vibration Frequency Inner Ring Defect | 0.0905 cPS |
| Vibration Frequency Outer Ring Defect | 0.0595 cPS |
| Vibration Frequency Roller Spin | 0.0386 cPS |
Shipping Info:
| Ship weight (kg) | 3.24 |
| Ship height (cm) | 13.18 |
| Ship length (cm) | 22.86 |
| Ship width (cm) | 6.05 |
| Country of Origin | US |
Product Variants
| Product | Model | Seal Type | Bore Dia. | Overall Width | Bolt Size | Overall Height | Base Width | Dynamic Load Capacity | Base To Center Height | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
SP-25C | Contact Seal | - | - | - | - | - | - | - | €1,737.20 | |
|
SP-24C | Single Lip Contact Seal | 1 1/2" | 2.38" | 5/8" | 4 14/25" | 2.38" | 7340 lbs. | 2 5/16" | €353.35 | |
|
SP-47C | - | 2 15/16" | 3.38" | 3/4" | 7.19" | 3.38" | 14839 lbs. | 3 3/4" | €1,246.01 | |
 |
SP-31 CXU | - | - | - | - | - | - | - | - | €486.17 | |
 |
SP-23 CSK | Standard Felt Seal | - | - | - | - | - | - | - | €455.12 | |
 |
SP-14C | Contact Seal | - | - | - | - | - | - | - | €266.55 | |
 |
SP-31 | Felt Labyrinth Seal | 1 15/16" | 2 1/2" | 5/8" | 5.31" | 2 1/2" | 7889 lbs. | 2 3/4" | €463.00 |
