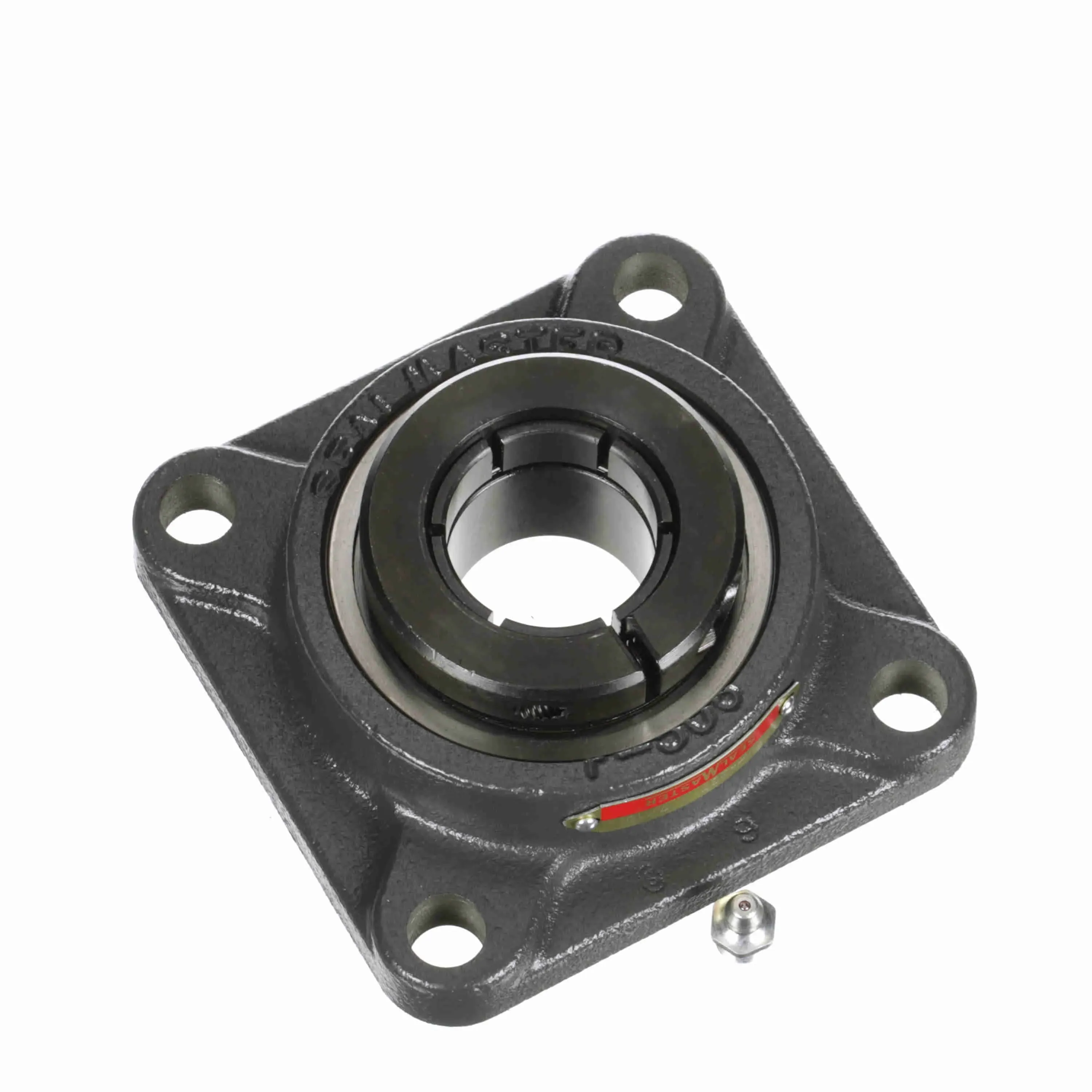

SEALMASTER SFMH-23T 716596 Mounted Cast Iron Four Bolt Flange Ball Bearing
Get it by Tuesday, Sep 1
€166.72 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Ability To Relubricate | Yes |
| Bearing Insert Finish | Black Oxide |
| Bearing Insert Material | Steel |
| Bearing Insert Material Grade | 52100 |
| Bearing Insert Type | Standard Duty |
| Bolt Size | 1/2" |
| Bolt Spacing | 3 5/8" |
| Bore Dia. | 1 7/16" |
| Bore Shape | Straight |
| Cage Material | Polyphenylene Sulfide |
| Cage Type | Land Riding Retainer |
| Dynamic Load Capacity | 5782 lbs. |
| End Cap | No |
| Fixed Vs. Expansion | Fixed |
| Foot Height | 14/25" |
| Grease Fitting Thread Size | M6 x 1 |
| Housing Coating | Powder Coated |
| Housing Color | Black |
| Housing Construction | One Piece |
| Housing Material | Cast Iron |
| Housing Style | Flange Block |
| Housing Type | Flange, Four Bolt |
| Htc | 8483.20.4040 |
| Inner Race Heat Treat Method | Zone Hardened |
| Insert | MH-23T |
| Inside Ring Outside Dia. | 1.86" |
| Length Through Bore | 1 3/4" |
| Locking Collar Outside Dia. | 2 14/25" |
| Lubrication Type | Lithium Complex NLGI 2 Grease |
| Max. Operating Temp. | 220°F |
| Max. Speed | 4000 RPM |
| Misalignment Capability | -2° to +2° |
| Misalignment Type | Static Only |
| Outer Ring Land Profile | Standard |
| Overall Height | 1.81" |
| Overall Length | 4.63" |
| Overall Width | 4.63" |
| Pilot Configuration | No Pilot |
| Radial Clearance | Standard |
| Rolling Element | Ball Bearing |
| Seal Type | Single Lip Contact Seal With Flinger |
| Shaft Locking Type | Concentric |
| Size Code | 207 |
| Static Load Rating | 3493 lbs. |
Shipping Info:
| Ship weight (kg) | 1.71 |
| Ship height (cm) | 5.08 |
| Ship length (cm) | 12.7 |
| Ship width (cm) | 12.7 |
| Country of Origin | MX |
Product Variants
| Product | Model | Bore Dia. | Length Through Bore | Lubrication Type | Static Radial Load Capacity | Bolt Size | Housing Color | Foot Height | Overall Height | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
SFMH-32T | 2" | 3 23/64" | Relubricatable | 6601 lbf. | - | - | - | - | €1,195.78 | |
 |
SFMH-20 | 1 1/4" | 2 43/64" | Relubricatable | 3493 lbf. | - | - | - | - | €218.34 | |
 |

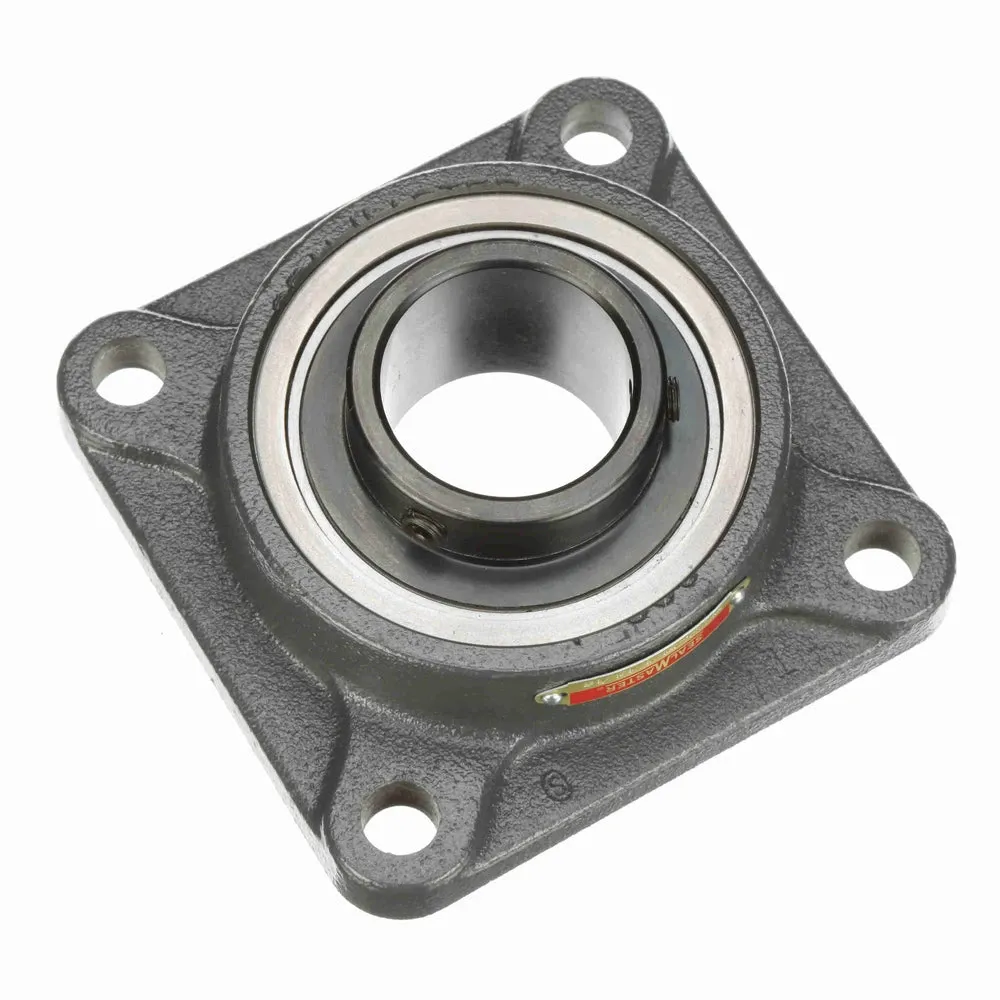

SFMH-39 | 2 7/16" | 3 45/64" | Relubricatable | 8150 lbf. | - | - | - | - | €1,409.38 | |
|
SFMH-20RT | 1 1/4" | 2 27/64" | - | 2567 lbf. | - | - | - | - | €210.75 | |
|
SFMH-20T | - | - | - | - | - | - | - | - | €244.15 | |
|
SFMH-31T CSK | 1 15/16" | 2 63/64" | - | 5216 lbf. | - | - | - | - | €1,041.51 | |
 |

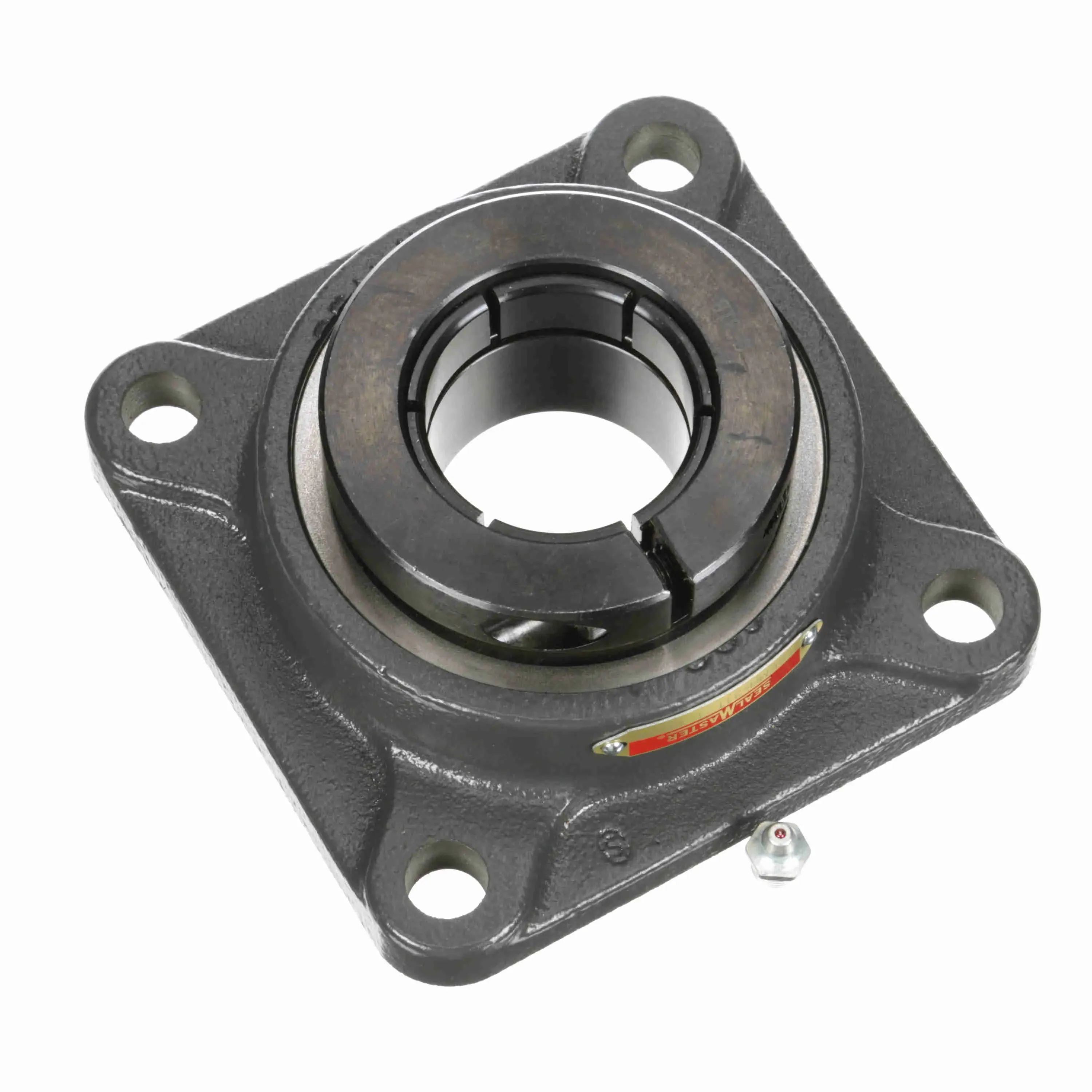

SFMH-31T | 1 15/16" | 2.17" | Lithium Complex NLGI 2 Grease | - | 9/16" | Black | 0.58" | 2.301" | €234.69 |
