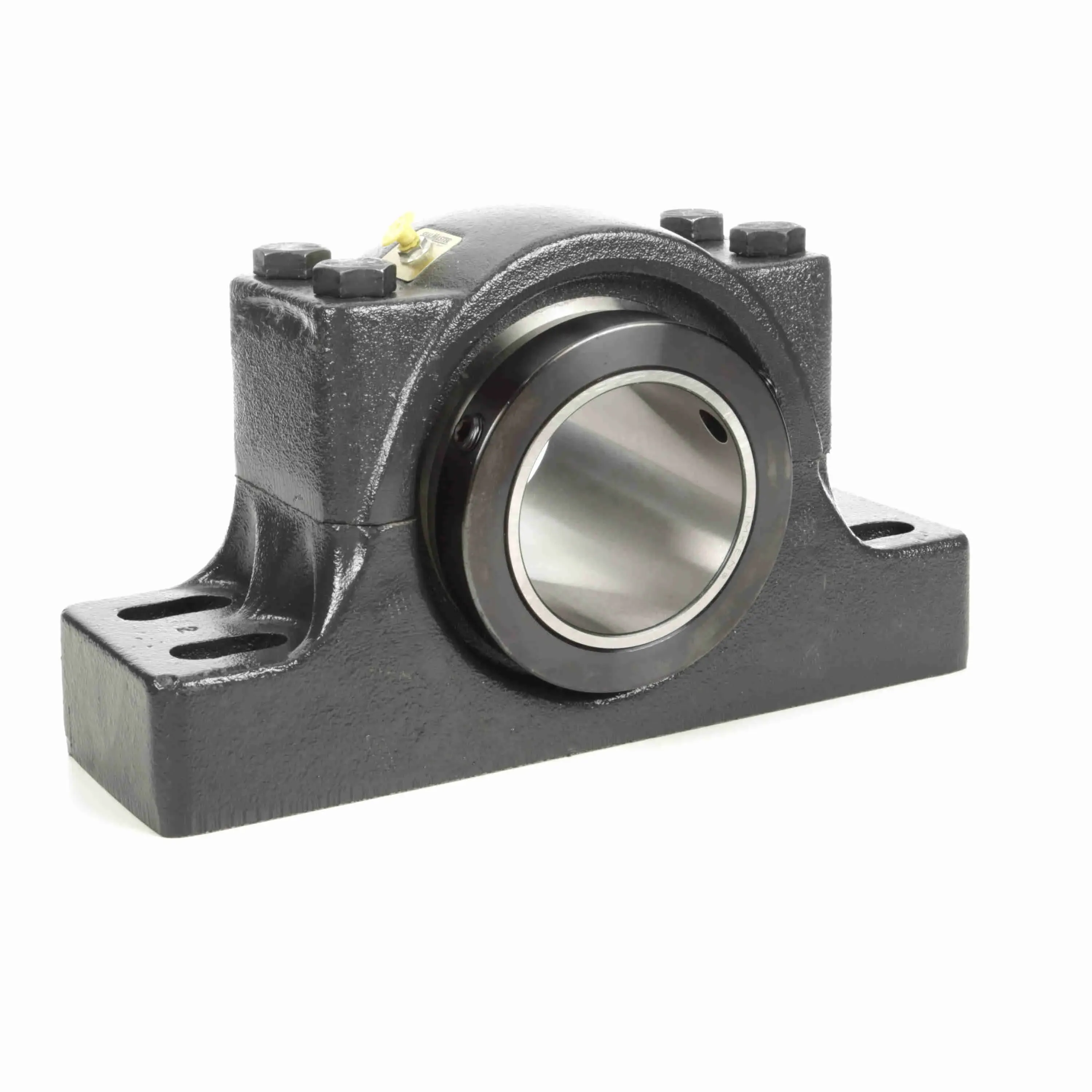

SEALMASTER RPB 415-4 550231 Pillow Block Bearing, 4 15/16 Inch Bore, 4 Holes, 5 1/2 Inch Shaft Height
Get it by Friday, Feb 27
5.00% off
€11,728.43 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Pillow Block Bearing |
| Ability To Relubricate | Yes |
| Base Height | 3 1/8" |
| Base To Center Height | 5 1/2" |
| Base Width | 5 1/8" |
| Bearing Insert Finish | Uncoated |
| Bearing Insert Material | Alloy Steel |
| Bearing Insert Type | Tapered Roller |
| Bearing Material Grade | Grade 52100 |
| Bolt Center Min | 13 1/2" |
| Bolt Size | 7/8" |
| Bore Dia. | 4 15/16" |
| Bore Diameter | 4 15/16" |
| Bore Shape | Straight |
| Bore Type | Cylindrical |
| Centerline To Front Face | 3 5/8" |
| Closure | Double Sealed |
| Collar Outer Dia. | 7.313" |
| Collar Outer Diameter | 7.313" |
| Duty Series | Standard |
| Duty/series | Standard Series |
| Dynamic Axial Load Capacity | 35520 lbf. |
| Dynamic Radial Load Capacity | 35520 lbs. |
| End Cap | No |
| Expansion | No |
| Expansion Type | Fixed |
| Features | Double-Collar Interlock With 120° Spacing Setscrew Lock, Diamond Faceted Setscrews, Heavy Duty Tapered Roller Bearings With Steel Cage For Radial, Thrust And Combined Loading, Powder Coat Epoxy 2-Bolt Split Cast Iron Housing, Race-Mounted Felt-Lined Flinger Seal |
| Foot Height | 3 1/8" |
| Grade | Grade 52100 |
| Grease Fitting Thread Size | 1/8" |
| Grease Fitting Thread Type | NPT |
| Height | 11" |
| Housing Color | Gray |
| Housing Construction | Split Two Piece |
| Housing Material | Cast Iron |
| Housing Material Finish | Black Oxide |
| Housing Style | Pillow Block |
| Htc | 8483.20.8080 |
| I.d. | 4 15/16" |
| Inner Race Heat Treat Method | Case Carburized Inner Ring |
| Inner Race Length | 7 1/4" |
| Insert Material | Steel |
| Insert Material Grade | 52100 |
| Insert Number | RCI-415 |
| Internal Clearance | Standard |
| Length | 18 3/4" |
| Locking Device | Double Set Screw |
| Locking Type | Double Collar Mount |
| Lubricant Material | Ngli #2 Equivalent |
| Lubrication Type | Lithium, EP, NLGI |
| Max. Angular Misalignment | 3° |
| Max. Speed | 1000 RPM |
| Max. Temp. | 220°F |
| Maximum Misalignment Angle | 3° |
| Minimum Temperature | -20°F |
| Misalignment Type | Static Only |
| Mount Hole Center-to-center Length | 15 7/8" |
| Mount Hole Center-to-center Width | 15 7/8" |
| Mounting Bolt Size | 7/8" |
| Mounting Surface To Shaft Center (height) | 5 1/2" |
| Mounting Type | Bolt Through |
| Number Of Mounting Holes | 4 |
| Outer Ring Land Profile | Standard |
| Overall Height | 11" |
| Overall Length | 18 1/2" |
| Overall Width | 7 1/4" |
| Platform | RPB Series |
| Replaceable Insert | Yes |
| Retainer Material | Steel |
| Retainer Type | Steel |
| Seal Flinger | Yes |
| Seal Material | Felt |
| Self Lubricating Bearing | Yes |
| Series | Rpb |
| Shaft Locking Type | Set Screws |
| Shaft Size | 4 15/16" |
| Split Housing | Split Horizontally |
| Static Radial Load Capacity | 16000 lbf. |
| Width | 7 1/2" |
Shipping Info:
| Ship weight (kg) | 64.62 |
| Ship height (cm) | 19.05 |
| Ship length (cm) | 47.63 |
| Ship width (cm) | 27.94 |
| Country of Origin | US |
Product Variants
| Product | Model | Overall Length | Overall Height | Bore Dia. | Overall Width | Mount Hole Center-to-center Length | Mounting Bolt Size | Lubricant Material | Housing Type | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
RPB 103-2 | 6 1/4" | 3 1/8" | 1 3/16" | 2 3/4" | 4 15/16" | 1/2" | Ngli #2 Equivalent | - | €1,500.34 | |
 |
RPB 100MM-4 | - | - | - | - | - | - | - | - | €3,413.94 | |
 |
RPB 100MM-4 TF RC | - | - | - | - | - | - | - | - | €3,584.59 | |
|
RPB 100MM-C4 CR | - | - | - | - | - | - | - | Four Bolt Pillow Block | €18,642.68 | |
 |
RPB 103-C2 | 6 1/4" | 3 1/8" | 1 3/16" | 2 3/4" | - | - | - | - | €761.29 | |
 |
RPB 103-C2 CR | 6 1/4" | 3 1/8" | 1 3/16" | 2 3/4" | - | - | - | - | €952.43 | |
 |
RPB 104-2 | 6.25" | 3 1/8" | 1 1/4" | 2 3/4" | 4 15/16" | 1/2" | Ngli #2 Equivalent | - | €1,290.56 |
