SEALMASTER RPB 110-2 550209 Pillow Block Bearing, 2 Bolt, 1.62 Inch Bore, 2.12 Inch Base to Center Height
Item: BD6MHNModel: RPB 110-2Cross Ref: 550209
7 In Stock
Ships within 2 days via
€899.94 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Pillow Block Bearing |
| Ability To Relubricate | Yes |
| Base To Center Height | 2.13" |
| Base Width | 2.313" |
| Bearing Insert Finish | Uncoated |
| Bolt Center To Center Length | 6" |
| Bolt Size | 1/2" |
| Bore Dia. | 1 5/8" |
| Bore Shape | Straight |
| Centerline To Front Face | 1.688" |
| Collar Outside Dia. | 2 7/8" |
| Duty Series | Standard , Standard Series |
| Dynamic Radial Load Capacity | 6140 lbs. |
| End Cap | No |
| Expansion | No |
| Foot Height | 1 1/4" |
| Grade | Grade 52100 |
| Grease Fitting Thread Size | 1/8" |
| Grease Fitting Thread Type | NPT |
| Height | 3.38" |
| Housing Color | Gray |
| Housing Construction | Split Two Piece |
| Housing Material | Cast Iron |
| Housing Style | Pillow Block |
| Htc | 8483.20.8080 |
| Inner Race Heat Treat Method | Case Carburized Inner Ring |
| Inner Race Length | 3 3/8" |
| Insert Material | Steel |
| Insert Material Grade | 52100 |
| Insert Number | RCI-110 |
| Inside Dia. | 1 5/8" |
| Internal Clearance | Standard |
| Length | 9" |
| Locking Device | Double Set Screw |
| Locking Type | Double Collar Mount |
| Lubrication Type | Lithium, EP, NLGI |
| Max. Bolt Center | 6.438" |
| Max. Speed | 3000 RPM |
| Min. Bolt Center | 5.563" |
| Misalignment Type | Static Only |
| No. Links/ft. | 0 |
| Outer Ring Land Profile | Standard |
| Overall Height | 4 3/8" |
| Overall Length | 7 3/4" |
| Overall Width | 3.38" |
| Platform | RPB Series |
| Replaceable Insert | Yes |
| Retainer Material | Steel |
| Retainer Type | Steel |
| Seal Flinger | Yes |
| Series | Rpb |
| Shaft Size | 1 5/8" |
| Width | 5" |
Shipping Info:
| Ship weight (kg) | 4.91 |
| Ship height (cm) | 12.7 |
| Ship length (cm) | 22.86 |
| Ship width (cm) | 8.59 |
| Country of Origin | US |
Product Variants
| Product | Model | Overall Height | Bolt Size | Base Width | Base To Center Height | Bore Dia. | Overall Width | Seal Type | Shaft Size | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
RPB 203-2 | 5 1/8" | 5/8" | 2.563" | 2 1/2" | 2 3/16" | 3 3/4" | - | 2 3/16" | €1,556.12 | |
 |
RPB 200-2 | 4 5/8" | 5/8" | 2.438" | 2 1/4" | 2" | 3 1/2" | - | 2" | €1,536.67 | |
 |
RPB 106-2 | 3.813" | 1/2" | 2.063" | 1 22/25" | 1 3/8" | 3" | - | 1 3/8" | €1,581.81 | |
 |
RPB 204-C2 CR | 5 5/8" | 5/8" | 2 3/4" | 2 3/4" | 2 1/4" | 4" | - | 2 1/4" | €1,316.34 | |
|
RPB 107-2 | 3.813" | 1/2" | 2.063" | 1 22/25" | 1 7/16" | 3" | - | 1 7/16" | €1,217.70 | |
 |
RPB 115-2 | 4 5/8" | 5/8" | 2.438" | 2 1/4" | 1 15/16" | 3 1/2" | - | 1 15/16" | €1,510.89 | |
 |

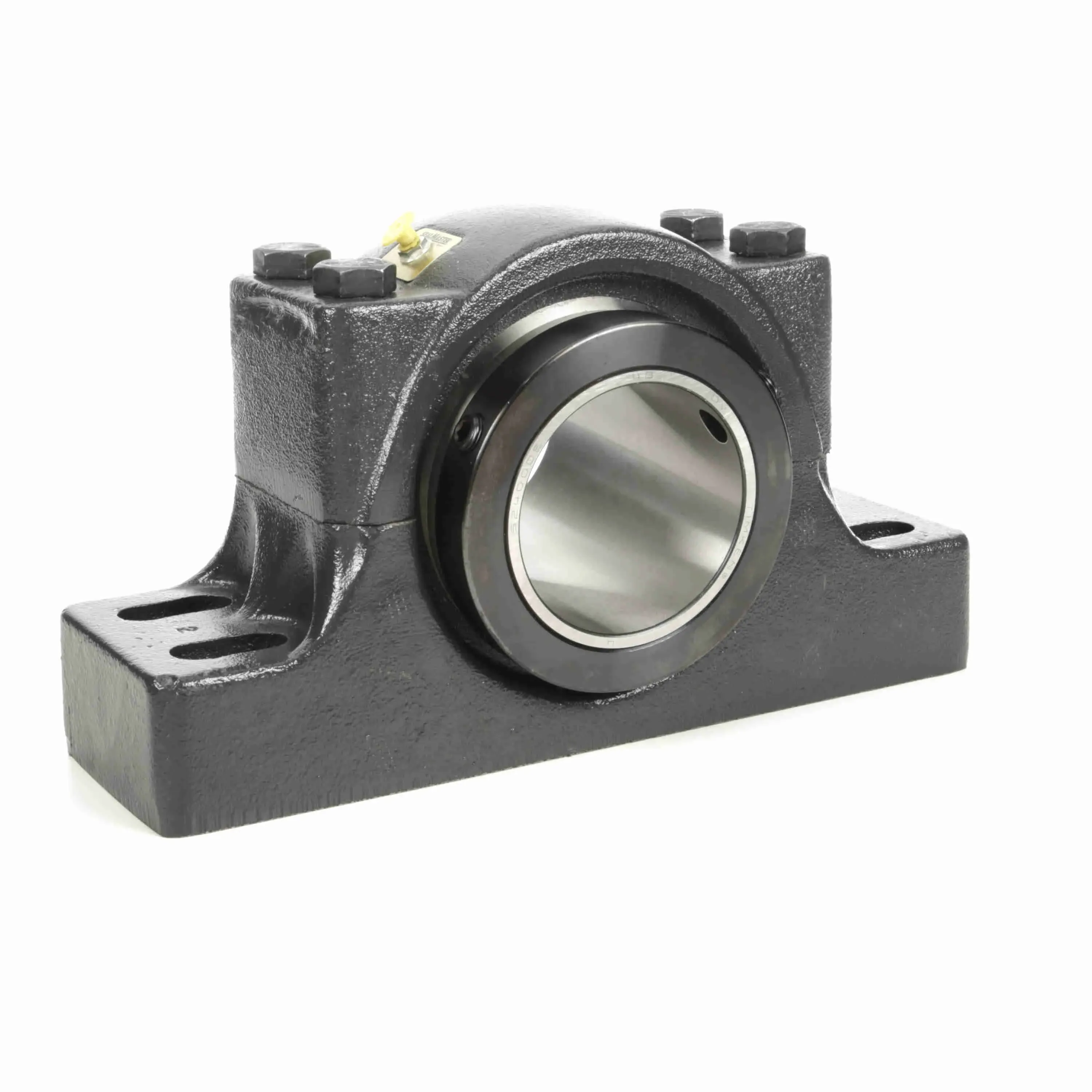

RPB 400-4 | 8 5/8" | 3/4" | 4 1/2" | 4 1/4" | 4" | 6 1/4" | - | 4" | €3,101.51 |
