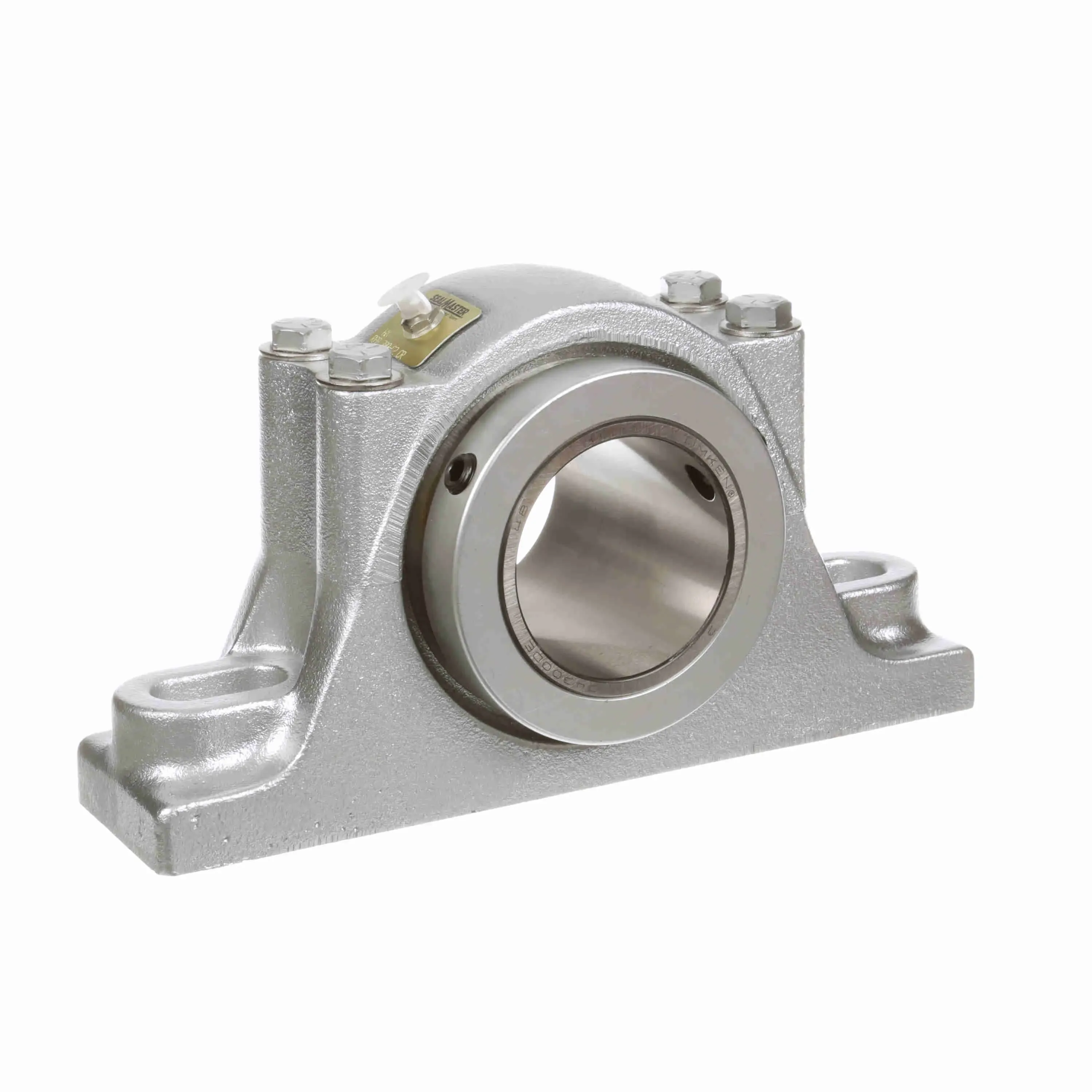

SEALMASTER RPB 300-C2 CR 554870 Pillow Block Bearing, 2 Bolt, 3 Inch Bore, 3.12 Inch Base to Center Height
Get it by Monday, Dec 22
€2,000.43 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Pillow Block Bearing |
| Ability To Relubricate | Yes |
| Base To Center Height | 3.13" |
| Base Width | 3" |
| Bearing Insert Finish | Uncoated |
| Bolt Center Max | 9.688" |
| Bolt Center Min | 8.063" |
| Bolt Center-to-center Length | 8 7/8" |
| Bolt Size | 3/4" |
| Bore Dia. | 3" |
| Bore Shape | Straight |
| Centerline To Front Face | 2 1/4" |
| Collar Outer Dia. | 4.719" |
| Collar Outer Diameter | 4.719" |
| Duty Series | Standard |
| Duty/series | Standard Series |
| Dynamic Radial Load Capacity | 9630 lbs. |
| End Cap | No |
| Expansion | No |
| Foot Height | 1 3/4" |
| Grade | Grade 52100 |
| Grease Fitting Thread Size | 1/8" |
| Grease Fitting Thread Type | NPT |
| Height | 4.63" |
| Housing Color | Silver, Gray |
| Housing Construction | Split Two Piece |
| Housing Style | Pillow Block |
| Htc | 8483.20.8080 |
| I.d. | 3" |
| Inner Race Heat Treat Method | Case Carburized Inner Ring |
| Inner Race Length | 4 1/2" |
| Insert Material | Steel |
| Insert Material Grade | 52100 |
| Insert Number | RCI-300C FG1 |
| Internal Clearance | Standard |
| Length | 12.13" |
| Locking Device | Double Set Screw |
| Locking Type | Double Collar Mount |
| Lubrication Type | Lithium, EP, NLGI |
| Max. Speed | 1750 RPM |
| Misalignment Type | Static Only |
| Options | Corrosion Resistant |
| Outer Ring Land Profile | Standard |
| Overall Height | 6 3/8" |
| Overall Length | 11 3/4" |
| Overall Width | 4 1/2" |
| Platform | Cr Series |
| Replaceable Insert | Yes |
| Retainer Material | Steel |
| Retainer Type | Steel |
| Seal Flinger | No |
| Series | Rpb |
| Shaft Size | 3" |
| Width | 6 3/4" |
Shipping Info:
| Ship weight (kg) | 13.19 |
| Ship height (cm) | 17.15 |
| Ship length (cm) | 30.81 |
| Ship width (cm) | 11.76 |
| Country of Origin | US |
Product Variants
| Product | Model | Overall Length | Overall Height | Bore Dia. | Overall Width | Mount Hole Center-to-center Length | Mounting Bolt Size | Lubricant Material | Housing Type | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
RPB 203-2 | 9.625" | 5 1/8" | 2 3/16" | 3 3/4" | 7 15/16" | 5/8" | Ngli #2 Equivalent | - | €1,556.12 | |
 |
RPB 200-2 | 8.875" | 4 5/8" | 2" | 3 1/2" | 7 3/16" | 5/8" | Ngli #2 Equivalent | - | €1,536.67 | |
 |
RPB 106-2 | 7.25" | 3.813" | 1 3/8" | 3" | 5 15/16" | 1/2" | Ngli #2 Equivalent | - | €1,581.81 | |
 |
RPB 204-C2 CR | 10 3/8" | 5 5/8" | 2 1/4" | 4" | - | - | - | - | €1,316.34 | |
|
RPB 107-2 | 7.25" | 3.813" | 1 7/16" | 3" | 5 15/16" | 1/2" | Ngli #2 Equivalent | - | €1,217.70 | |
 |
RPB 115-2 | 8.875" | 4 5/8" | 1 15/16" | 3 1/2" | 7 3/16" | 5/8" | Ngli #2 Equivalent | - | €1,510.89 | |
 |
RPB 315-4 AH | - | - | - | - | - | - | - | - | €2,618.33 |
