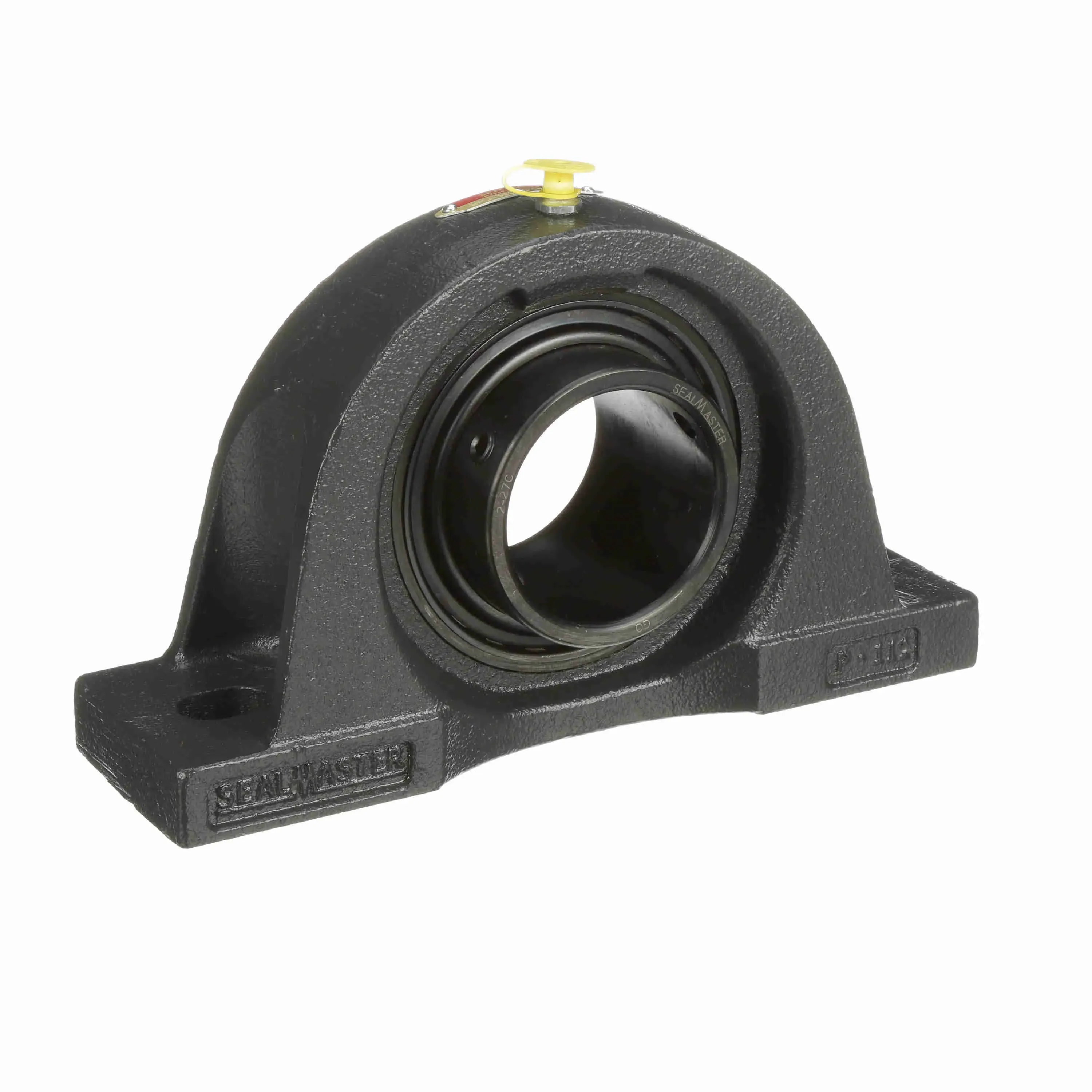

SEALMASTER NPL-39C 703580 Pillow Block Ball Bearing Unit, 2-Bolt Base, 2-7/16 Inch Bore
Get it by Wednesday, Feb 25
€431.26 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Ability To Relubricate | Yes |
| Base Length | 9 1/2" |
| Base To Center Height | 2 11/16" |
| Base Width | 2 3/4" |
| Bearing Insert Finish | Black Oxide |
| Bearing Insert Material | Steel |
| Bearing Insert Material Grade | 52100 |
| Bearing Insert Type | Standard Duty |
| Bolt Size | 5/8" |
| Bolt Spacing Max | 7.63" |
| Bolt Spacing Min | 6 22/25" |
| Bore Dia. | 2 7/16" |
| Bore Shape | Straight |
| Cage Material | Polyphenylene Sulfide |
| Cage Type | Land Riding Retainer |
| Centerline To Outermost Bearing Face | 1.563" |
| Dynamic Load Capacity | 11789 lbs. |
| End Cap | No |
| Fixed Vs. Expansion | Fixed |
| Foot Height | 0.81" |
| Grease Fitting Thread Size | 1/8" |
| Grease Fitting Thread Type | NPT |
| Housing Base | Solid |
| Housing Coating | Powder Coated |
| Housing Color | Black |
| Housing Construction | One Piece |
| Housing Material | Cast Iron |
| Housing Style | Pillow Block |
| Housing Type | Pillow Block, Two Bolt, Low Base |
| Htc | 8483.20.8040 |
| Inner Race Heat Treat Method | Zone Hardened |
| Inner Ring Outside Diameter | 2.984" |
| Insert | 2-27C |
| Length Through Bore | 2.563" |
| Lubrication Type | Lithium Complex NLGI 2 Grease |
| Max. Operating Temperature | 220°F |
| Max. Speed | 2550 RPM |
| Misalignment Capability | -2° to +2° |
| Misalignment Type | Static Only |
| Outer Ring Land Profile | Standard |
| Overall Height | 5 1/2" |
| Overall Length | 9 1/2" |
| Overall Width | 2 3/4" |
| Radial Clearance | Standard |
| Rolling Element | Ball Bearing |
| Seal Type | Single Lip Contact Seal |
| Setscrew Torque | 230 lbs.-in. to 300 lbs.-in. |
| Shaft Locking Type | Set Screw |
| Size Code | 2-27 |
| Static Load Rating | 8150 lbs. |
| Vibration Frequency Fundamental Train | 0.0068 cPS |
| Vibration Frequency Inner Ring Defect | 0.0989 cPS |
| Vibration Frequency Outer Ring Defect | 0.0678 cPS |
| Vibration Frequency Roller Spin | 0.0432 cPS |
Shipping Info:
| Ship weight (kg) | 6.02 |
| Ship height (cm) | 16.51 |
| Ship length (cm) | 26.37 |
| Ship width (cm) | 7.62 |
| Country of Origin | US |
Product Variants
| Product | Model | Bearing Insert Type | Shaft Locking Type | Bearing Insert Material | Overall Length | Overall Width | Overall Height | Bore Dia. | Mount Hole Center-to-center Length | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
NPL-35 | Standard Duty | Set Screws | Steel | 8 5/8" | 2 3/8" | 4.937" | 2.188" | 7" | €788.15 | |
 |
NPL-10 | Standard Duty | Set Screw | Steel | 5" | 1 1/2" | 2.31" | 5/8" | 4 1/8" | €334.52 | |
 |
NPL-10 DBB | Standard Duty | Set Screw | Steel | 5" | 1 1/2" | 2.31" | 5/8" | - | €129.83 | |
 |
NPL-10 HI | - | - | - | - | - | - | - | - | €726.81 | |
 |
NPL-10 RM | - | - | - | - | - | - | - | - | €131.85 | |
 |
NPL-10 XLO | - | - | - | - | - | - | - | - | €160.06 | |
 |
NPL-10-12C | - | - | - | - | - | - | - | - | €703.56 |
