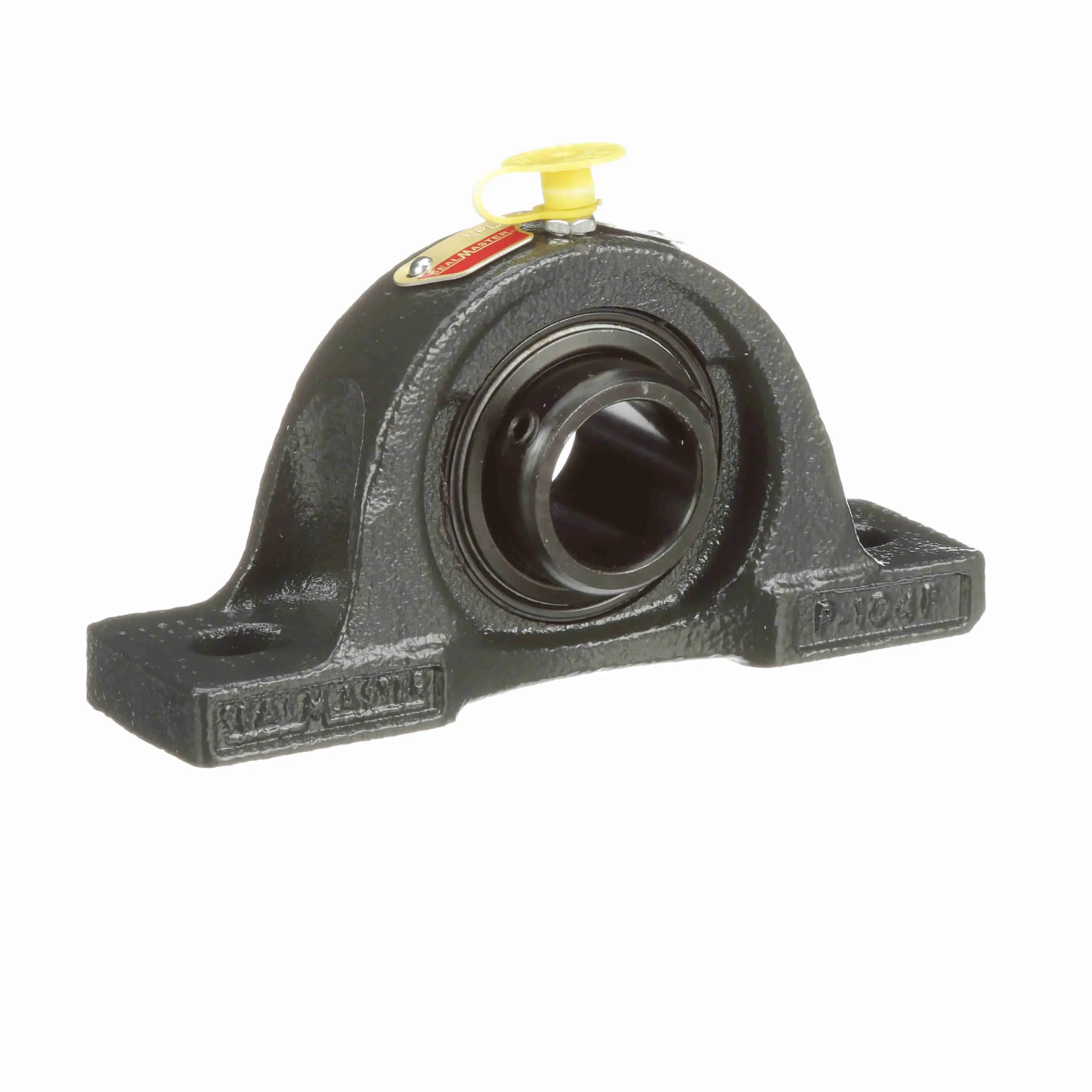

SEALMASTER NPL-16 700572 Pillow Block Bearing, 1 Inch Bore, Cast Iron, Set Screws, 1 5/16 Inch Shaft Ht
Item: BE2EYXModel: NPL-16Cross Ref: 44A423 / 700572
7 In Stock
Ships within 2 days via
10.00% off
€297.69 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Ability To Relubricate | Yes |
| Base Height | 0.5" |
| Base Length | 5 1/2" |
| Base To Center Height | 1 5/16" |
| Base Width | 1 1/2" |
| Bearing Insert Finish | Black Oxide |
| Bearing Insert Material | Steel |
| Bearing Insert Material Grade | 52100 |
| Bearing Insert Type | Standard Duty |
| Bearing Material Grade | Grade 52100 |
| Bolt Size | 3/8" |
| Bolt Spacing Max | 4.38" |
| Bolt Spacing Min | 3 22/25" |
| Bore Dia. | 1" |
| Bore Diameter | 1" |
| Bore Shape | Straight |
| Cage Material | Polyphenylene Sulfide |
| Cage Type | Land Riding Retainer |
| Centerline To Outermost Bearing Face | 0.813" |
| Closure | Double Sealed |
| Dynamic Load Capacity | 2801 lbs. |
| Dynamic Radial Load Capacity | 2801 lbf. |
| End Cap | No |
| Fixed Vs. Expansion | Fixed |
| Foot Height | 1/2" |
| Grease Fitting Thread Size | 1/4"-28 |
| Housing Base | Solid |
| Housing Coating | Powder Coated |
| Housing Color | Black |
| Housing Construction | One Piece |
| Housing Material | Cast Iron |
| Housing Style | Pillow Block |
| Housing Type | Pillow Block, Two Bolt, Low Base |
| Htc | 8483.20.8040 |
| Inner Race Heat Treat Method | Zone Hardened |
| Inner Ring Outside Diameter | 1 3/8" |
| Insert | 2-1 |
| Length Through Bore | 1 3/8" |
| Lubricant Material | Ngli #2 Equivalent |
| Lubrication Type | Lithium Complex NLGI 2 Grease |
| Max. Operating Temperature | 220°F |
| Max. Speed | 6350 RPM |
| Maximum Misalignment Angle | 2° |
| Maximum Temperature | 220°F |
| Minimum Temperature | -20°F |
| Misalignment Capability | -2° to +2° |
| Misalignment Type | Static Only |
| Mount Hole Center-to-center Length | 4 3/8" |
| Mount Type | Bolt Through |
| Mounting Bolt Size | 3/8" |
| Mounting Surface To Shaft Center Height | 1 5/16" |
| Number Of Mount Holes | 2 |
| Outer Ring Land Profile | Standard |
| Overall Height | 2.69" |
| Overall Length | 5 1/2" |
| Overall Width | 1 1/2" |
| Radial Clearance | Standard |
| Rolling Element | Ball Bearing |
| Seal Material | Felt |
| Seal Type | Felt Labyrinth Seal |
| Shaft Locking Type | Set Screw |
| Size Code | 2-015 |
| Static Load Rating | 1651 lbs. |
| Static Radial Load Capacity | 1651 lbf. |
| Vibration Frequency Fundamental Train | 0.0068 cPS |
| Vibration Frequency Inner Ring Defect | 0.0985 cPS |
| Vibration Frequency Outer Ring Defect | 0.0682 cPS |
| Vibration Frequency Roller Spin | 0.0442 cPS |
Shipping Info:
| Ship weight (kg) | 0.95 |
| Ship height (cm) | 4.29 |
| Ship length (cm) | 8.89 |
| Ship width (cm) | 14.61 |
| Country of Origin | US |
Product Variants
| Product | Model | Bearing Insert Type | Shaft Locking Type | Bearing Insert Material | Overall Length | Overall Width | Overall Height | Bore Dia. | Mount Hole Center-to-center Length | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
NPL-46 | Radial Ball | Set Screws | Alloy Steel | 12" | 3 3/8" | 6.437" | - | 9 1/2" | €6,412.04 | |
 |
NPL-10 DBB | Standard Duty | Set Screw | Steel | 5" | 1 1/2" | 2.31" | 5/8" | - | €129.83 | |
 |
NPL-206TM | - | - | - | - | - | - | - | - | €195.95 | |
|
NPL-21 | Radial Ball | Set Screws | Alloy Steel | 6.562" | 1 7/8" | 3.687" | - | 5 19/64" | €855.72 | |
 |
NPL-11 | Standard Duty | Set Screw | Steel | 5" | 1 1/2" | 2.31" | 11/16" | - | €165.07 | |
 |
NPL-35 HT | - | - | - | - | - | - | - | - | €479.60 | |
 |
NPL-10 | Standard Duty | Set Screw | Steel | 5" | 1 1/2" | 2.31" | 5/8" | 4 1/8" | €334.52 |
