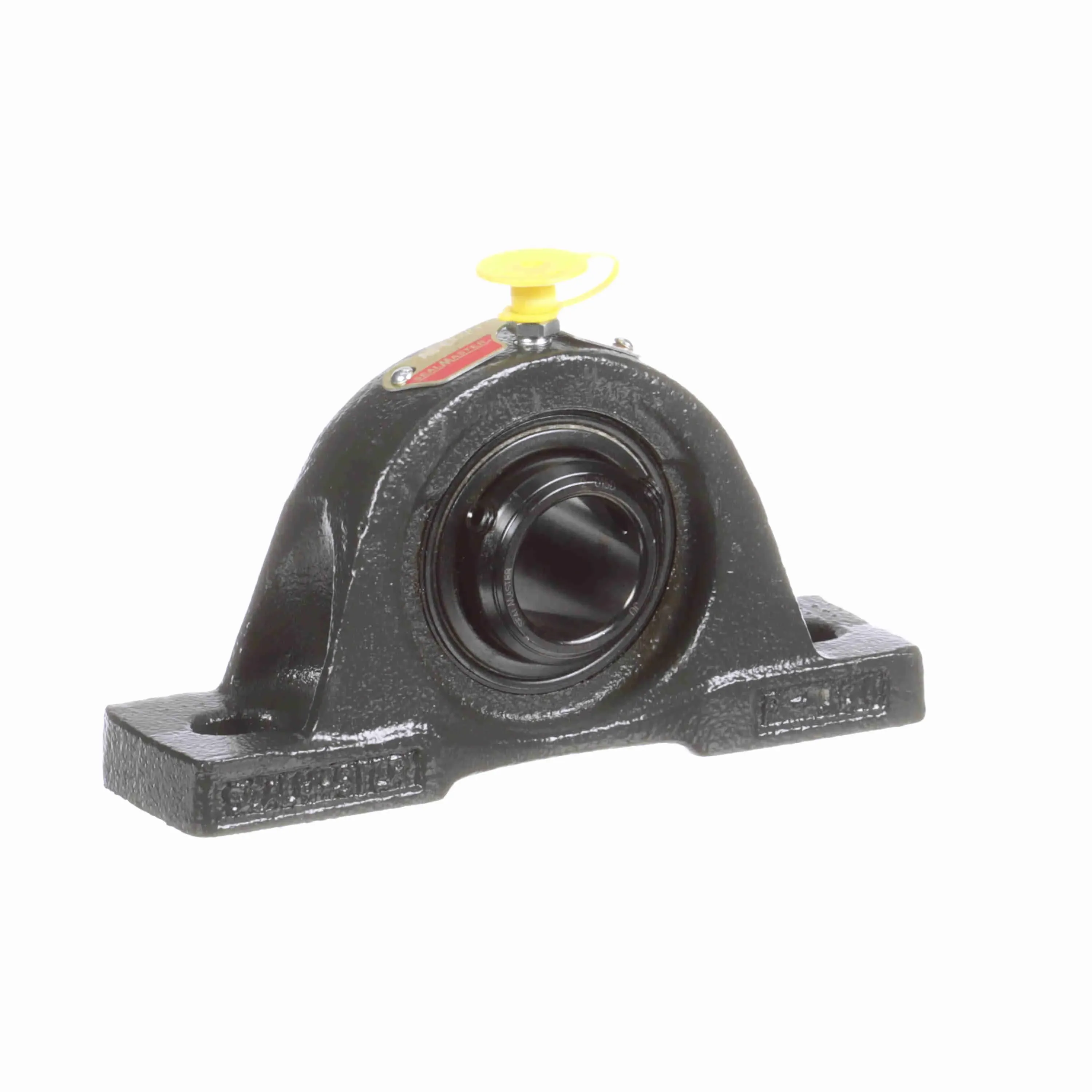

SEALMASTER NPD-15 702092 Pillow Block Ball Bearing Unit, 2-Bolt Base, 15/16 Inch Bore
Get it by Tuesday, Dec 23
€207.60 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Ability To Relubricate | Yes |
| Base Length | 5 1/2" |
| Base To Center Height | 1 7/16" |
| Base Width | 1 1/2" |
| Bearing Insert Finish | Black Oxide |
| Bearing Insert Material | Steel |
| Bearing Insert Material Grade | 52100 |
| Bearing Insert Type | Standard Duty |
| Bolt Size | 3/8" |
| Bolt Spacing Max | 4.38" |
| Bolt Spacing Min | 3 22/25" |
| Bore Dia. | 15/16" |
| Bore Shape | Straight |
| Cage Material | Polyphenylene Sulfide |
| Cage Type | Land Riding Retainer |
| Centerline To Outermost Bearing Face | 3/4" |
| Dynamic Load Capacity | 2801 lbs. |
| End Cap | No |
| Fixed Vs. Expansion | Fixed |
| Foot Height | 1/2" |
| Grease Fitting Thread Size | 1/4"-28 |
| Housing Base | Solid |
| Housing Coating | Powder Coated |
| Housing Color | Black |
| Housing Construction | One Piece |
| Housing Material | Cast Iron |
| Housing Style | Pillow Block |
| Housing Type | Pillow Block, Two Bolt |
| Htc | 8483.20.8040 |
| Inner Race Heat Treat Method | Zone Hardened |
| Inner Ring Outside Diameter | 1 3/8" |
| Insert | 2-015D |
| Length Through Bore | 1 1/2" |
| Lubrication Type | Lithium Complex NLGI 2 Grease |
| Max. Operating Temperature | 220°F |
| Max. Speed | 9000 RPM |
| Misalignment Capability | -2° to +2° |
| Misalignment Type | Static Only |
| Outer Ring Land Profile | Standard |
| Overall Height | 2.81" |
| Overall Length | 5 1/2" |
| Overall Width | 1 1/2" |
| Radial Clearance | Standard |
| Rolling Element | Ball Bearing |
| Seal Type | Felt Labyrinth Seal |
| Shaft Locking Type | Double Set Screw |
| Size Code | 2-015 |
| Static Load Rating | 1651 lbs. |
| Vibration Frequency Fundamental Train | 0.0068 cPS |
| Vibration Frequency Inner Ring Defect | 0.0985 cPS |
| Vibration Frequency Outer Ring Defect | 0.0682 cPS |
| Vibration Frequency Roller Spin | 0.0442 cPS |
Shipping Info:
| Ship weight (kg) | 1.01 |
| Ship height (cm) | 4.29 |
| Ship length (cm) | 8.89 |
| Ship width (cm) | 14.61 |
| Country of Origin | US |
Product Variants
| Product | Model | Bore Dia. | Overall Length | Overall Width | Overall Height | Seal Type | Insert | Max. Speed | Bolt Size | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
NPD-14C | - | - | - | - | Contact Seal | - | - | - | €234.31 | |
 |
NPD-20 | - | - | - | - | - | - | - | - | €225.44 | |
 |
NPD-35 | 2 3/16" | 8.63" | 2.63" | 5" | Felt Labyrinth Seal | 2-23D | 4500 RPM | 5/8" | €380.66 | |
 |
NPD-16 | 1" | 5 1/2" | 1 1/2" | 2.81" | Felt Labyrinth Seal | 2-1D | 9000 RPM | 3/8" | €160.50 | |
 |
NPD-24C | - | - | - | - | - | - | - | - | €243.80 | |
 |
NPD-35 CXU | 2 3/16" | 8.63" | 2.63" | 5" | Felt Labyrinth Seal | 2-23D CXU | 4500 RPM | 5/8" | €380.66 | |
 |
NPD-35 W | - | - | - | - | Standard Felt Seal | - | - | - | €443.05 |
