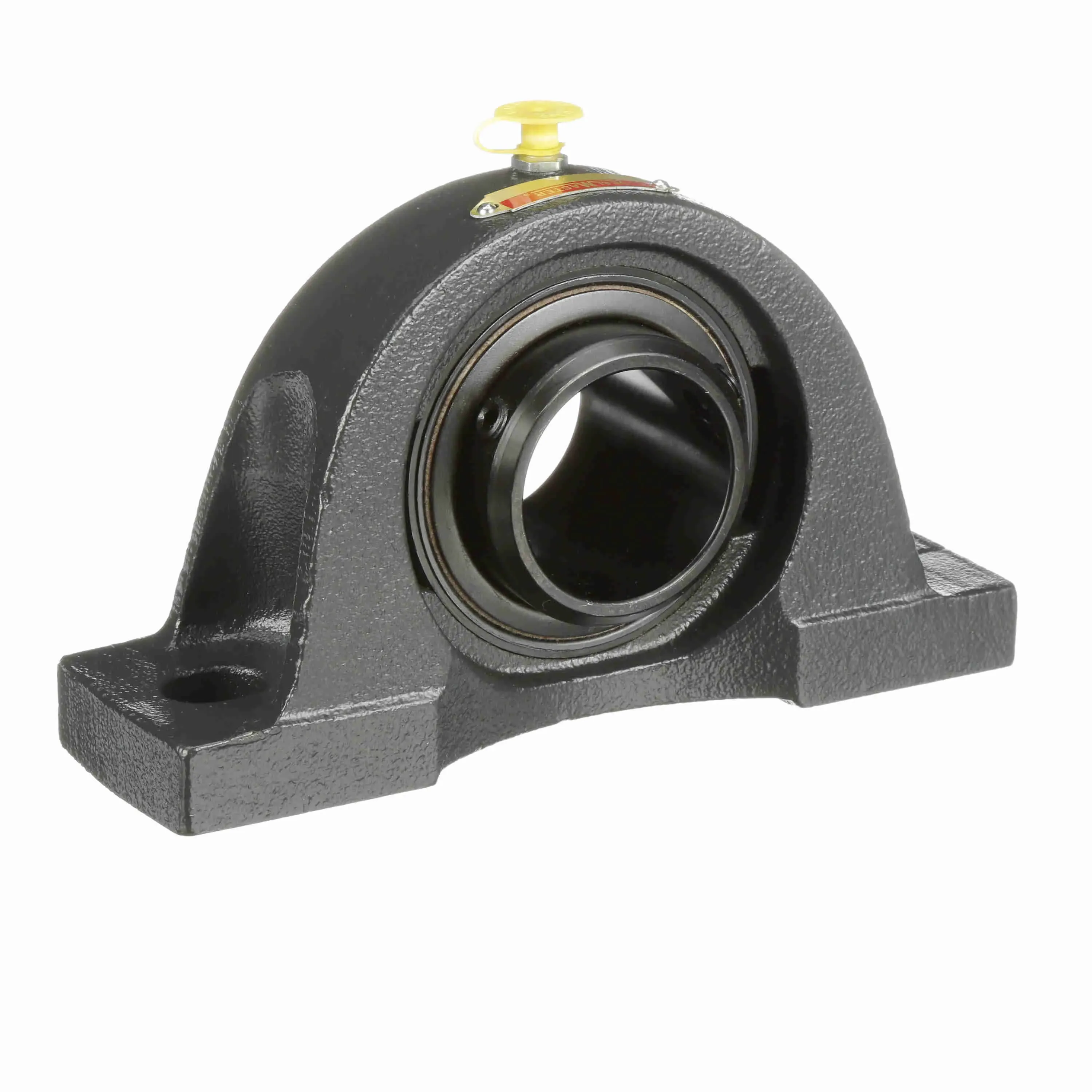

SEALMASTER NPD-28 702105 Ball Bearing
Get it by Tuesday, Dec 23
€283.06 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Ability To Relubricate | Yes |
| Base Length | 7 1/2" |
| Base To Center Height | 2.13" |
| Base Width | 2.13" |
| Bearing Insert Finish | Black Oxide |
| Bearing Insert Material | Steel |
| Bearing Insert Material Grade | 52100 |
| Bearing Insert Type | Standard Duty |
| Bolt Size | 1/2" |
| Bolt Spacing Max | 6.06" |
| Bolt Spacing Min | 5 11/25" |
| Bore Dia. | 1 3/4" |
| Bore Shape | Straight |
| Cage Material | Polyphenylene Sulfide |
| Cage Type | Land Riding Retainer |
| Centerline To Outermost Bearing Face | 1.188" |
| Dynamic Load Capacity | 7901 lbs. |
| End Cap | No |
| Fixed Vs. Expansion | Fixed |
| Foot Height | 0.69" |
| Grease Fitting Thread Size | 1/4"-28 |
| Housing Base | Solid |
| Housing Coating | Powder Coated |
| Housing Color | Black |
| Housing Construction | One Piece |
| Housing Material | Cast Iron |
| Housing Style | Pillow Block |
| Housing Type | Pillow Block, Two Bolt |
| Htc | 8483.20.8040 |
| Inner Race Heat Treat Method | Zone Hardened |
| Inner Ring Outside Diameter | 2.063" |
| Insert | 2-112D |
| Length Through Bore | 2 3/8" |
| Lubrication Type | Lithium Complex NLGI 2 Grease |
| Max. Operating Temperature | 220°F |
| Max. Speed | 5300 RPM |
| Misalignment Capability | -2° to +2° |
| Misalignment Type | Static Only |
| Outer Ring Land Profile | Standard |
| Overall Height | 4 1/4" |
| Overall Length | 7 1/2" |
| Overall Width | 2.38" |
| Radial Clearance | Standard |
| Rolling Element | Ball Bearing |
| Seal Type | Felt Labyrinth Seal |
| Setscrew Torque | 125 lbs.-in. to 165 lbs.-in. |
| Shaft Locking Type | Double Set Screw |
| Size Code | 2-111 |
| Static Load Rating | 5139 lbs. |
| Vibration Frequency Fundamental Train | 0.0067 cPS |
| Vibration Frequency Inner Ring Defect | 0.0994 cPS |
| Vibration Frequency Outer Ring Defect | 0.0673 cPS |
| Vibration Frequency Roller Spin | 0.0417 cPS |
Shipping Info:
| Ship weight (kg) | 3.02 |
| Ship height (cm) | 5.41 |
| Ship length (cm) | 13.18 |
| Ship width (cm) | 19.84 |
| Country of Origin | US |
Product Variants
| Product | Model | Bore Dia. | Overall Length | Overall Width | Overall Height | Seal Type | Insert | Max. Speed | Bolt Size | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |

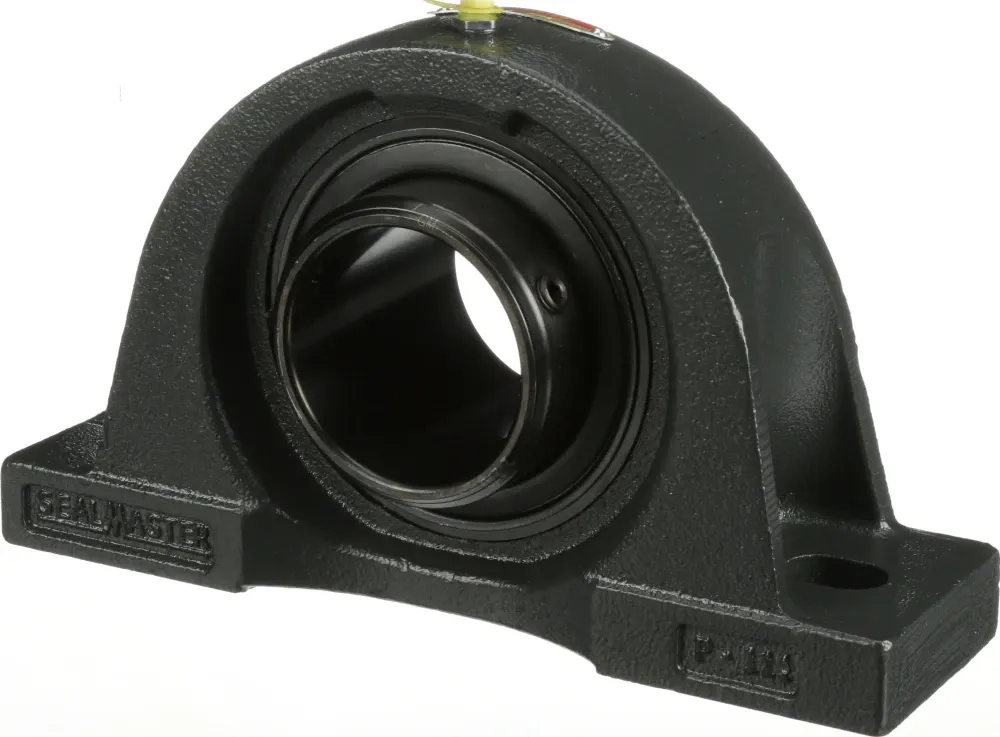

NPD-14C | - | - | - | - | Contact Seal | - | - | - | €234.31 | |
 |
NPD-20 | - | - | - | - | - | - | - | - | €225.44 | |
 |

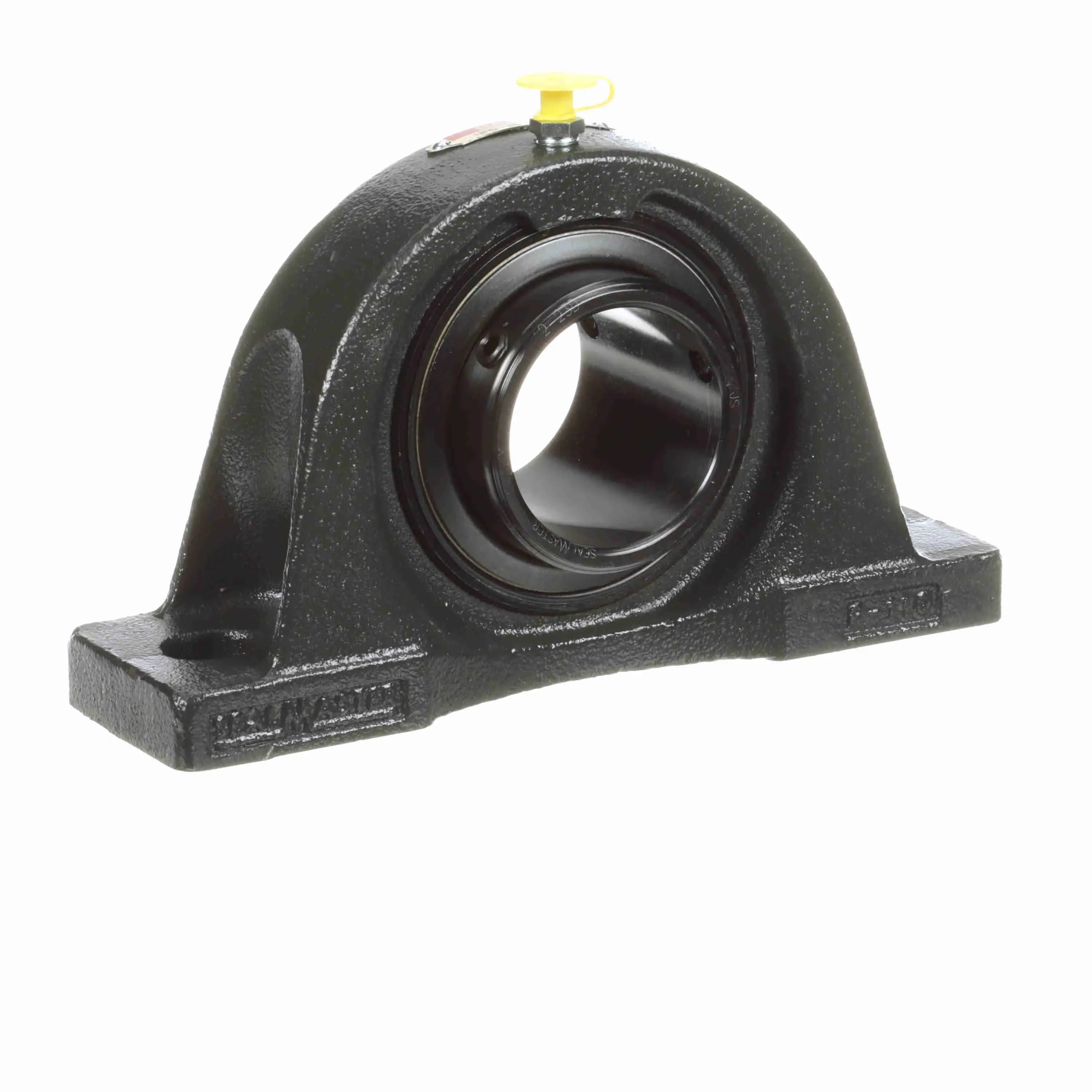

NPD-35 | 2 3/16" | 8.63" | 2.63" | 5" | Felt Labyrinth Seal | 2-23D | 4500 RPM | 5/8" | €380.66 | |
 |

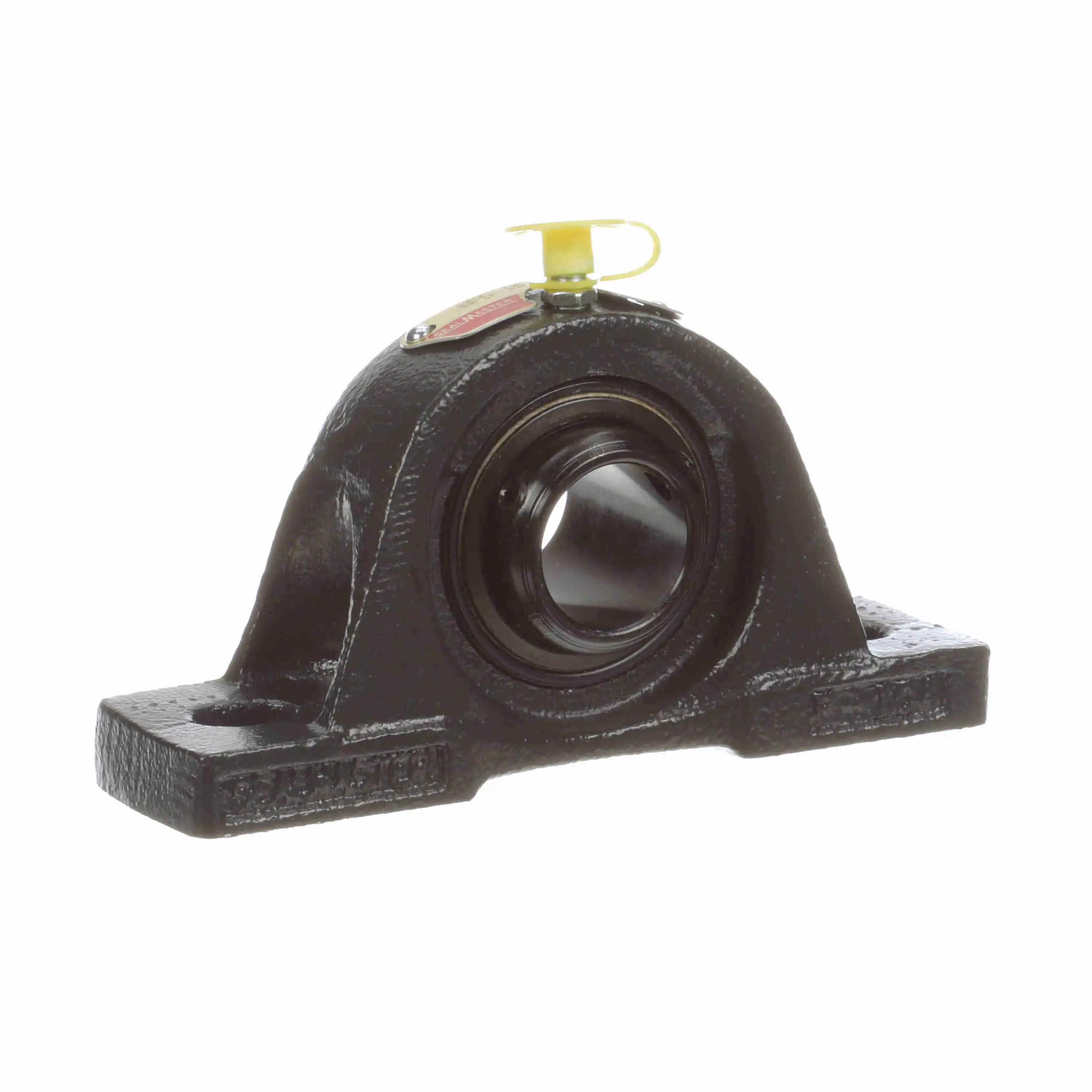

NPD-16 | 1" | 5 1/2" | 1 1/2" | 2.81" | Felt Labyrinth Seal | 2-1D | 9000 RPM | 3/8" | €160.50 | |
 |
NPD-24C | - | - | - | - | - | - | - | - | €243.80 | |
 |

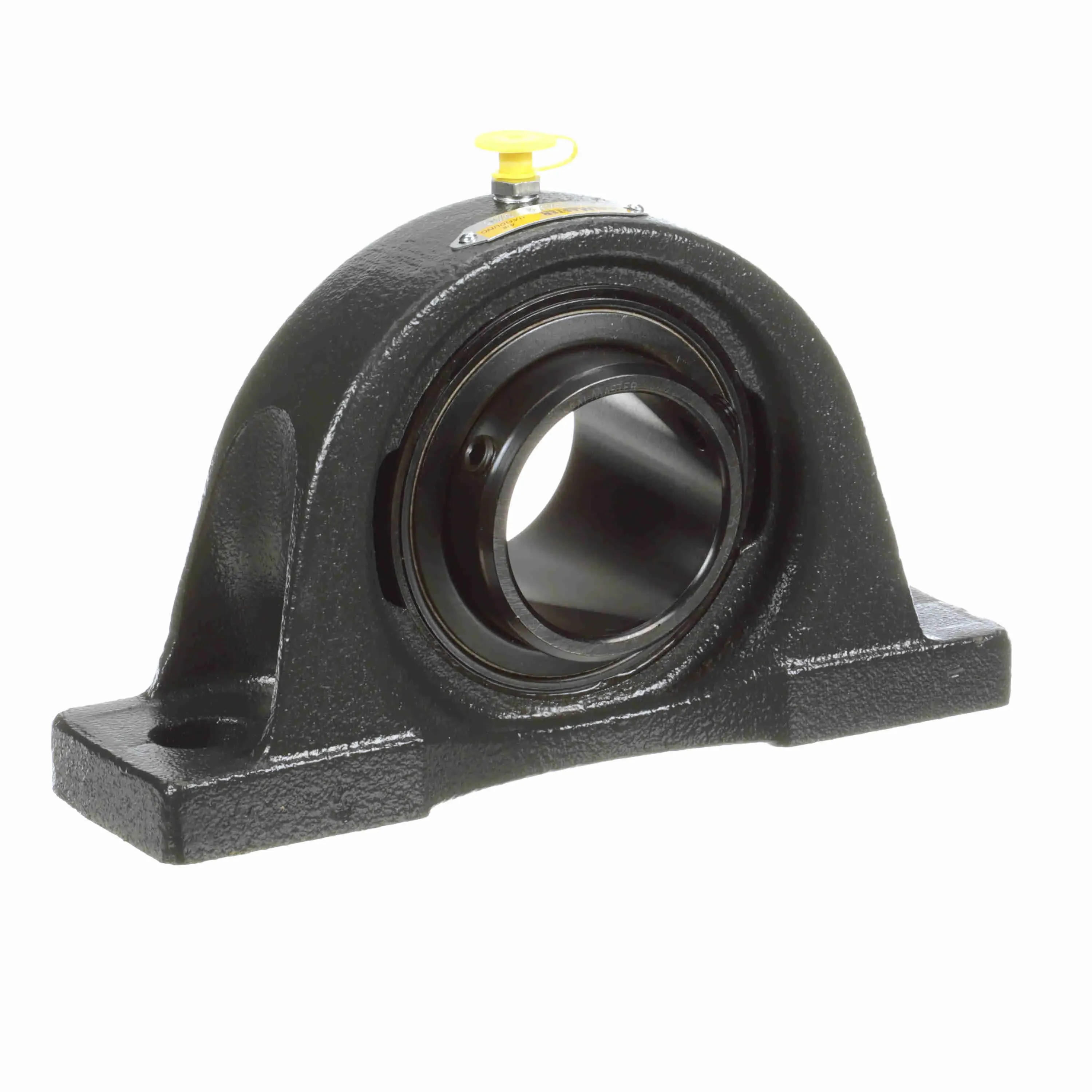

NPD-35 CXU | 2 3/16" | 8.63" | 2.63" | 5" | Felt Labyrinth Seal | 2-23D CXU | 4500 RPM | 5/8" | €380.66 | |
 |

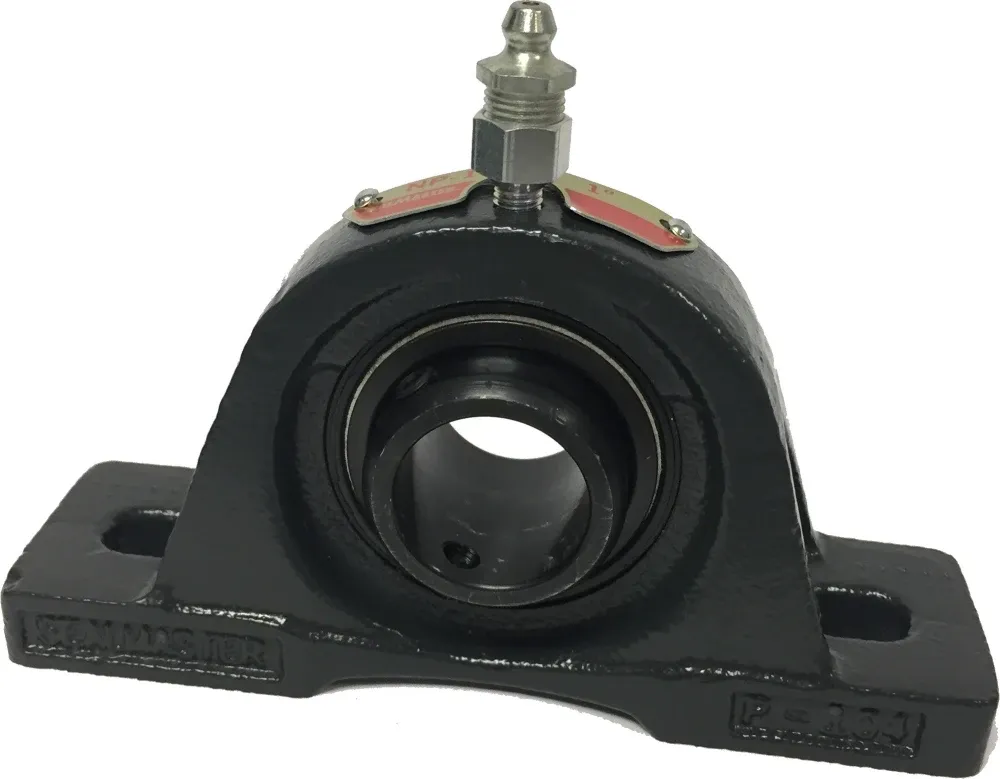

NPD-35 W | - | - | - | - | Standard Felt Seal | - | - | - | €443.05 |
