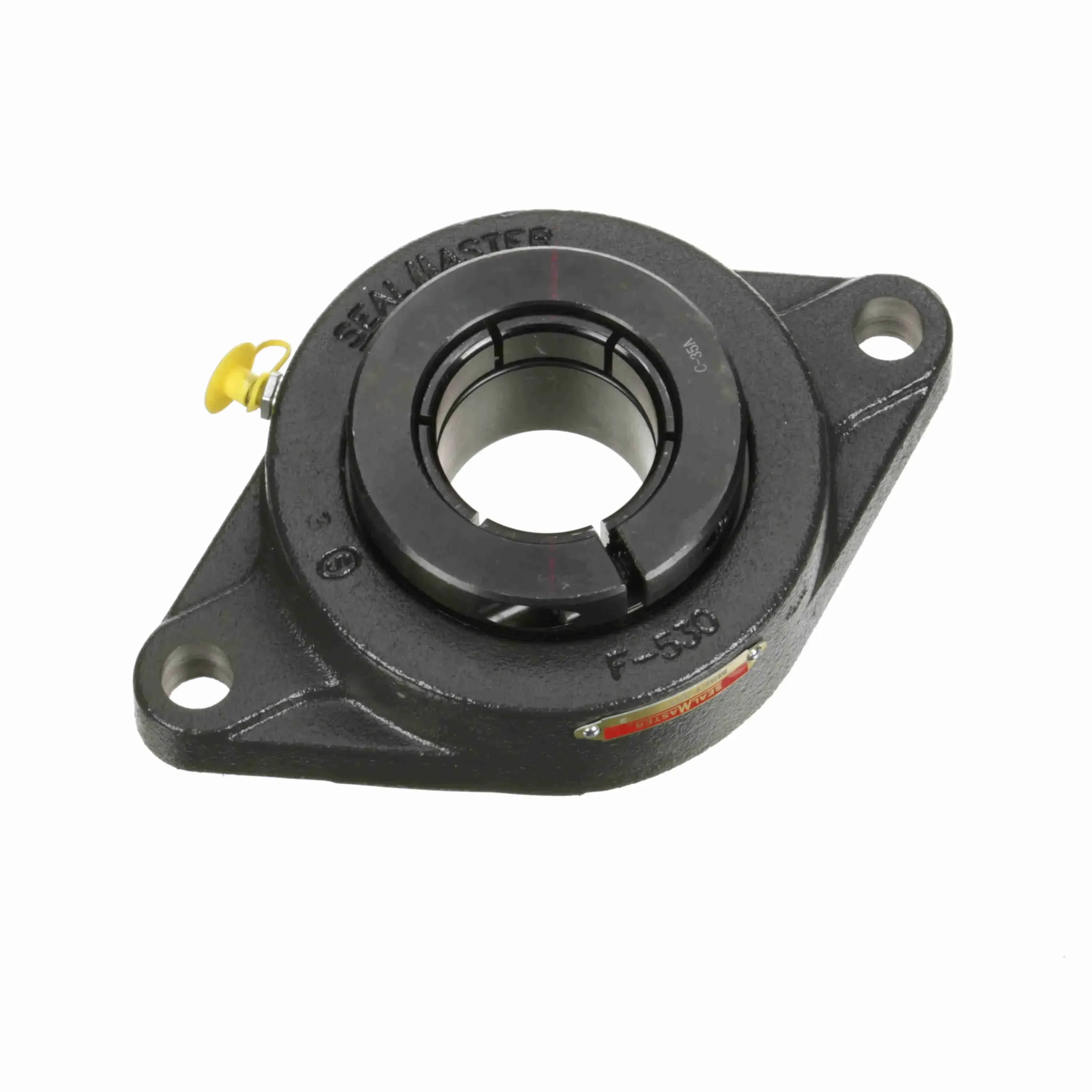

SEALMASTER MSFT-32T 705352 Flange Block Bearing, 2 Bolt Flange Block, 2 Inch Bore, 7.2 Inch Bolt Dia
Get it by Tuesday, Sep 1
€394.30 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Flange Block Bearing |
| Ability To Relubricate | Yes |
| Bearing Insert Finish | Black Oxide |
| Bearing Insert Material | Steel |
| Bearing Insert Material Grade | 52100 |
| Bearing Insert Type | Medium Duty |
| Bolt Size | 5/8" |
| Bolt Spacing | 7 1/4" |
| Bore Dia. | 2" |
| Bore Shape | Straight |
| Cage Material | Polyphenylene Sulfide |
| Cage Type | Land Riding Retainer |
| Dynamic Load Capacity | 9752 lbs. |
| End Cap | No |
| Fixed Vs. Expansion | Fixed |
| Foot Height | 0.81" |
| Housing Coating | Powder Coated |
| Housing Color | Black |
| Housing Construction | One Piece |
| Housing Material | Cast Iron |
| Housing Style | Flange Block |
| Housing Type | Flange, Two Bolt |
| Htc | 8483.20.4040 |
| Inner Race Heat Treat Method | Zone Hardened |
| Insert | 2-2T |
| Length Through Bore | 2 1/4" |
| Locking Collar Outside Dia. | 3 1/2" |
| Lubrication Type | Lithium Complex NLGI 2 Grease |
| Max. Operating Temp. | 220°F |
| Max. Speed | 4500 RPM |
| Misalignment Capability | -2° to +2° |
| Misalignment Type | Static Only |
| Outer Ring Land Profile | Standard |
| Overall Height | 2.38" |
| Overall Length | 8 1/2" |
| Overall Width | 5 1/4" |
| Pilot Configuration | No Pilot |
| Radial Clearance | Standard |
| Rolling Element | Ball Bearing |
| Seal Type | Felt Labyrinth Seal |
| Shaft Locking Type | Concentric |
| Size Code | 2-23 |
| Static Load Rating | 6601 lbs. |
Shipping Info:
| Ship weight (kg) | 4.03 |
| Ship height (cm) | 16.51 |
| Ship length (cm) | 17.15 |
| Ship width (cm) | 6.2 |
| Country of Origin | US |
Product Variants
| Product | Model | Seal Type | Bore Dia. | Housing Type | Rolling Element | Bolt Size | Overall Height | Foot Height | Length Through Bore | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
MSFT-31 | Felt Labyrinth Seal | 1 15/16" | Flange, Two Bolt | Ball Bearing | 5/8" | 2.313" | 0.81" | 2.188" | €870.00 | |
 |
MSFT-23C | - | 1 7/16" | - | - | 1/2" | 2.016" | 14/25" | 1.938" | €298.65 | |
 |
MSFT-32 | Felt Labyrinth Seal | 2" | Flange, Two Bolt | Ball Bearing | 5/8" | 2.313" | 0.81" | 2.188" | €882.28 | |
 |
MSFT-20 | - | 1 1/4" | - | - | 1/2" | 3 17/32" | 14/25" | 1.688" | €556.96 | |
 |
MSFT-16C | Single Lip Contact Seal | 1" | Flange, Two Bolt | Ball Bearing | 7/16" | 1.563" | 0.53" | 1 1/2" | €179.70 | |
 |
MSFT-24 | Felt Labyrinth Seal | 1 1/2" | Flange, Two Bolt | Ball Bearing | 9/16" | 2.047" | 14/25" | 1.938" | €716.27 | |
 |
MSFT-16 | Felt Labyrinth Seal | 1" | Flange, Two Bolt | Ball Bearing | 7/16" | 1.563" | 0.53" | 1 1/2" | €484.93 |
