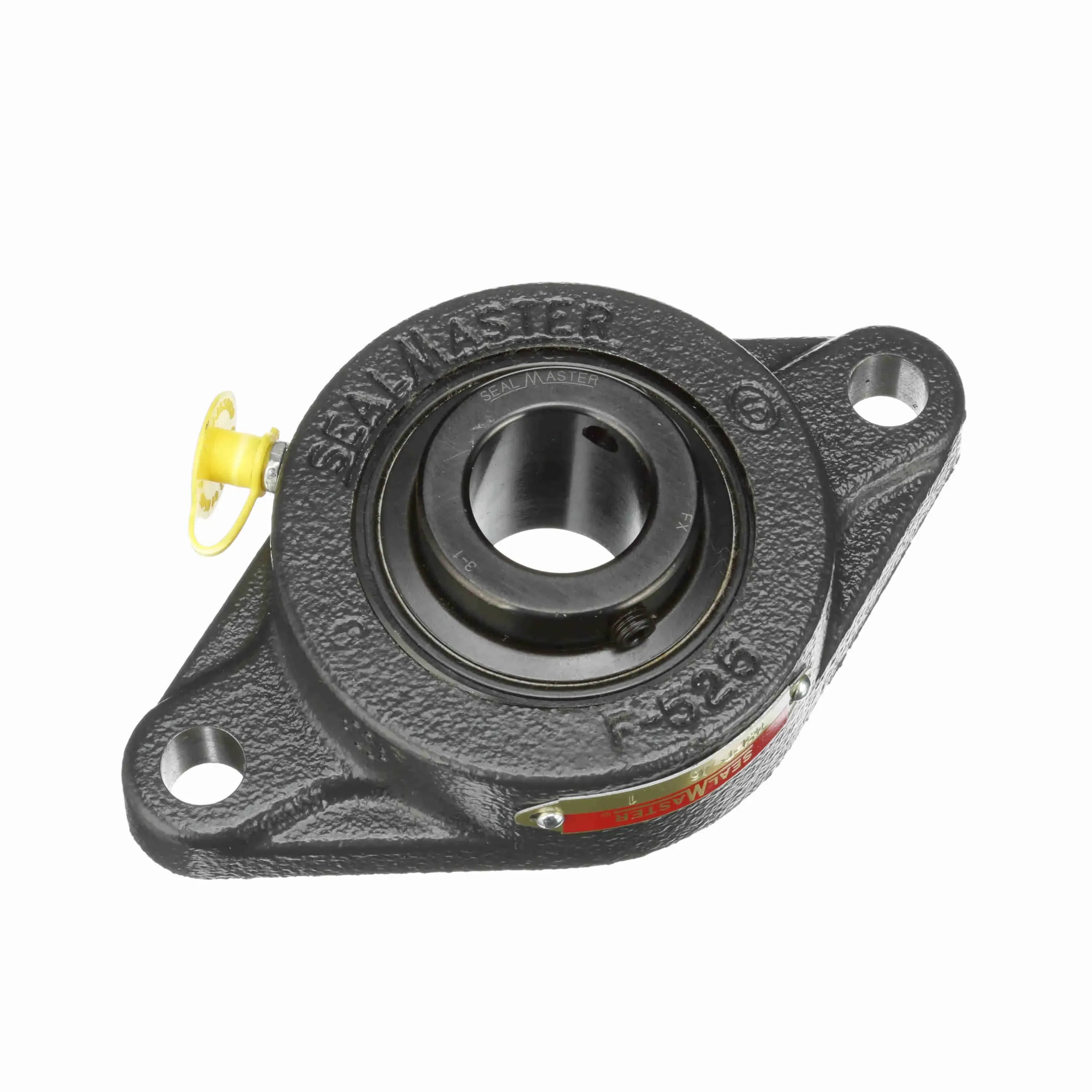

SEALMASTER MSFT-16 700129 Flange Bearing, 2 Bolt, 1 Inch Bore, Cast Iron, Concentric Collar, 3-5/32 in Length
Item: BD7FGFModel: MSFT-16Cross Ref: 44A374 / 700129
7 In Stock
Ships within 2 days via
5.00% off
€460.69 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Ability To Relubricate | Yes |
| Back Side To Center Width | 0.703" |
| Bearing Insert Finish | Black Oxide |
| Bearing Insert Material | Steel |
| Bearing Insert Material Grade | 52100 |
| Bearing Insert Type | Medium Duty |
| Bearing Material Grade | Grade 52100 |
| Bolt Size | 7/16" |
| Bolt Spacing | 4.594" |
| Bore Dia. | 1" |
| Bore Shape | Straight |
| Bore Type | Cylindrical |
| Cage Material | Polyphenylene Sulfide |
| Cage Type | Land Riding Retainer |
| Closure | Double Sealed |
| Dynamic Load Capacity | 4381 lbs. |
| End Cap | No |
| Expansion Type | Fixed |
| Features | Wide Inner Race Bearing With Greater Load Carrying Capacity |
| Fixed Vs. Expansion | Fixed |
| Flange Thickness | 1/2" |
| Foot Height | 0.53" |
| Grease Fitting Thread Size | 1/4"-28 |
| Housing Coating | Powder Coated |
| Housing Color | Black |
| Housing Construction | One Piece |
| Housing Material | Cast Iron |
| Housing Style | Flange Block |
| Housing Type | Flange, Two Bolt |
| Htc | 8483.20.4040 |
| Included | Set Screw |
| Included Bearing | Ucx05-16 |
| Inner Race Heat Treat Method | Zone Hardened |
| Insert | 3-1 |
| Inside Ring Outside Dia. | 1.587" |
| Length Through Bore | 1 1/2" |
| Lubricant Material | Nlgi #2 Equivalent |
| Lubrication Openings | One Zirc Fitting |
| Lubrication Type | Lithium Complex NLGI 2 Grease |
| Max. Operating Temp. | 220°F |
| Max. Speed | 5450 RPM |
| Max. Temp. | 220°F |
| Min. Temp. | -20°F |
| Misalignment Capability | -2° to +2° |
| Misalignment Type | Static Only |
| Mount Hole Center To Center Height | 4 19/32" |
| Mount Hole Center To Center Length | 4 19/32" |
| Mount Hole Size | 15/32" |
| Mounting Bolt Size | 3/8" |
| No. Of Mount Holes | 2 |
| Outer Ring Land Profile | Standard |
| Overall Height | 1.563" |
| Overall Length | 5 14/25" |
| Overall Width | 3 1/4" |
| Pilot Configuration | No Pilot |
| Radial Clearance | Standard |
| Rolling Element | Ball Bearing |
| Rolling Element Rows | 1 |
| Seal Material | Felt |
| Seal Type | Felt Labyrinth Seal |
| Self Lubricating Bearing | No |
| Setscrew Torque | 85 lbs.-in. |
| Shaft Locking Type | Set Screw |
| Size Code | 2-13 |
| Static Load Rating | 2567 lbs. |
| Static Radial Load Capacity | 2567 lbf. |
| Vibration Frequency Fundamental Train | 0.0066 cPS |
| Vibration Frequency Inner Ring Defect | 0.0905 cPS |
| Vibration Frequency Outer Ring Defect | 0.0595 cPS |
| Vibration Frequency Roller Spin | 0.0385 cPS |
Shipping Info:
| Ship weight (kg) | 1.02 |
| Ship height (cm) | 4.29 |
| Ship length (cm) | 8.89 |
| Ship width (cm) | 14.61 |
| Country of Origin | US |
Product Variants
| Product | Model | Seal Type | Bore Dia. | Housing Type | Rolling Element | Bolt Size | Overall Height | Foot Height | Length Through Bore | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
MSFT-31 | Felt Labyrinth Seal | 1 15/16" | Flange, Two Bolt | Ball Bearing | 5/8" | 2.313" | 0.81" | 2.188" | €812.00 | |
 |
MSFT-23C | - | 1 7/16" | - | - | 1/2" | 2.016" | 14/25" | 1.938" | €298.65 | |
 |
MSFT-32 | Felt Labyrinth Seal | 2" | Flange, Two Bolt | Ball Bearing | 5/8" | 2.313" | 0.81" | 2.188" | €823.45 | |
 |
MSFT-15 | Felt Labyrinth Seal | 15/16" | Flange, Two Bolt | Ball Bearing | 7/16" | 1.563" | 0.53" | 1 1/2" | - | RFQ
|
 |
MSFT-20 | - | 1 1/4" | - | - | 1/2" | 3 17/32" | 14/25" | 1.688" | €556.96 | |
 |
MSFT-16C | Single Lip Contact Seal | 1" | Flange, Two Bolt | Ball Bearing | 7/16" | 1.563" | 0.53" | 1 1/2" | €179.70 | |
 |
MSFT-24 | Felt Labyrinth Seal | 1 1/2" | Flange, Two Bolt | Ball Bearing | 9/16" | 2.047" | 14/25" | 1.938" | €668.52 |
