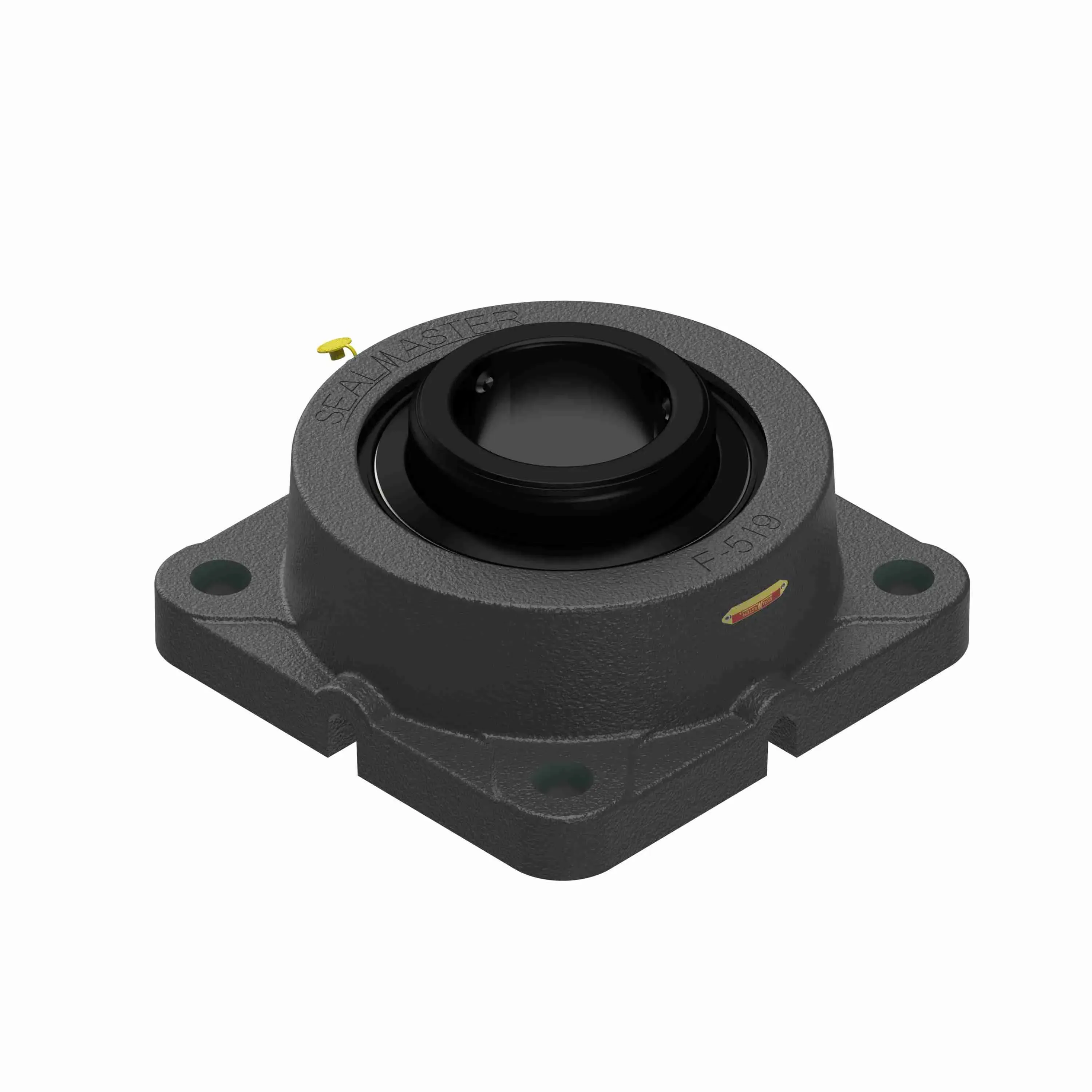

SEALMASTER MSFD-71 702321 Flange-Mount Ball Bearing Unit, 4-7/16 Inch Bore
4 7/16"
Get it by Tuesday, Aug 25
€8,053.61 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Ability To Relubricate | Yes |
| Bearing Insert Finish | Black Oxide |
| Bearing Insert Material | Steel |
| Bearing Insert Material Grade | 52100 |
| Bearing Insert Type | Medium Duty |
| Bearing Type | Medium Duty |
| Bolt Size | 1 1/4" |
| Bolt Spacing | 10" |
| Bore Dia. | 4 7/16" |
| Bore Shape | Straight |
| Cage Material | Brass |
| Cage Type | Land Riding Retainer |
| Duty Series | Medium |
| Dynamic Load Capacity | 37482 lbs. |
| End Cap | No |
| Finish | Black Oxide |
| Fixed Vs. Expansion | Fixed |
| Foot Height | 1 14/25" |
| Grade | Grade 52100 |
| Grease Fitting Thread Size | 1/4" |
| Grease Fitting Thread Type | NPT |
| Grease Type | Goldplex-HP |
| Height | 6 1/4" |
| Housing Backside Inside Dia. | 9 1/4" |
| Housing Base | Solid |
| Housing Coating | Powder Coated |
| Housing Color | Black |
| Housing Construction | One Piece |
| Housing Material | Cast Iron |
| Housing Style | Flange Block |
| Htc | 8483.20.4040 |
| Inner Race Heat Treat Method | Zone Hardened |
| Insert | 3-47D |
| Insert Material | Steel |
| Inside Ring Outside Dia. | 6.34" |
| Length | 13 1/4" |
| Length Through Bore | 5 3/4" |
| Locking Device | Double Set Screw |
| Lubricant | Lithium Complex NLGI 2 Grease |
| Lubrication Type | Lithium Complex NLGI 2 Grease |
| Max. Speed | 1950 RPM |
| Misalignment Type | Static Only |
| No. Links/ft. | 0 |
| Outer Ring Land Profile | Standard |
| Overall Height | 6" |
| Overall Length | 12 3/4" |
| Overall Width | 12 3/4" |
| Pilot Configuration | No Pilot |
| Product Line | Sealmaster Gold Standard |
| Radial Clearance | Standard |
| Retainer Type | Metal Land Riding |
| Shaft Locking Type | Double Set Screw |
| Shaft Size | 4 7/16" |
| Size Code | 3-47 |
| Static Load Rating | 33267 lbs. |
| Width | 13 1/4" |
Shipping Info:
| Ship weight (kg) | 47.88 |
| Ship height (cm) | 33.66 |
| Ship length (cm) | 33.66 |
| Ship width (cm) | 15.88 |
| Country of Origin | US |
Product Variants
| Product | Model | Seal Type | Bore Dia. | Max. Operating Temp. | Shaft Size | Insert Material | Housing Type | Rolling Element | Bolt Size | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |

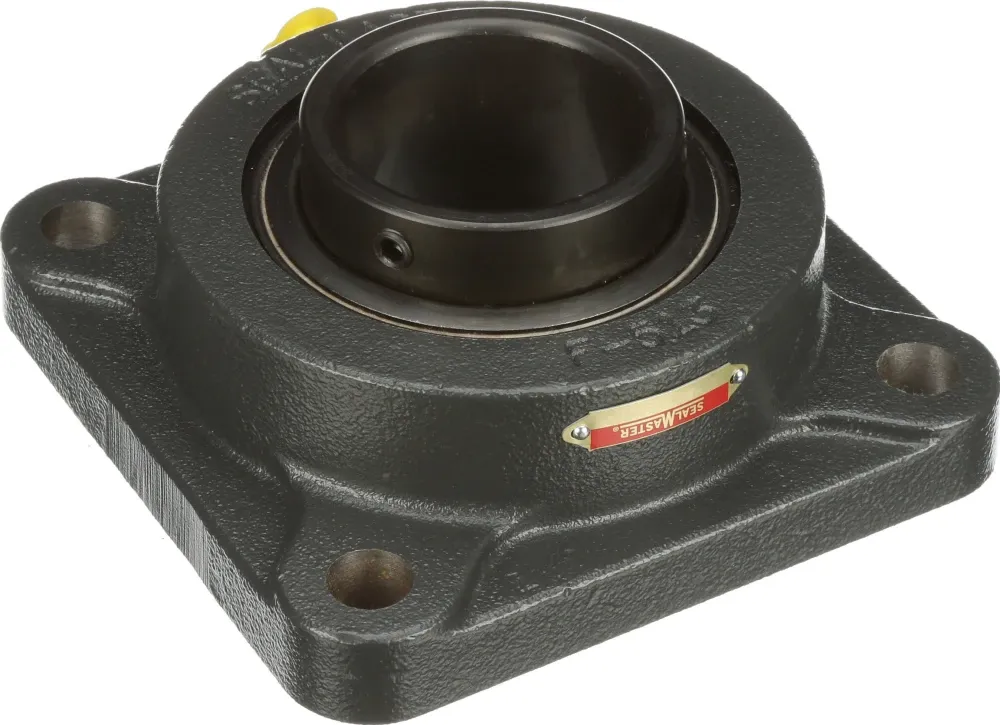

MSFD-39C | Contact Seal | - | 250°F | 2 7/16" | Steel | Four Bolt Flange | Ball | - | €814.91 | |
 |
MSFD-28 | Standard Felt Seal | - | 250°F | 1 3/4" | Steel | Four Bolt Flange | Ball | - | €498.81 | |
 |
MSFD-19 | Standard Felt Seal | - | 250°F | 1 3/16" | Steel | Four Bolt Flange | Ball | - | €275.04 | |
 |
MSFD-48 | Standard Felt Seal | - | 250°F | 3" | Steel | Four Bolt Flange | Ball | - | €1,315.31 | |
 |
MSFD-43 | Standard Felt Seal | - | 250°F | 2 11/16" | Steel | Four Bolt Flange | Ball | - | €912.74 | |
 |
MSFD-27 | Standard Felt Seal | - | 250°F | 1 11/16" | Steel | Four Bolt Flange | Ball | - | €434.29 | |
 |
MSFD-32 | Standard Felt Seal | - | 220°F | - | Black Oxide, Cast Steel | - | - | - | €484.64 |
