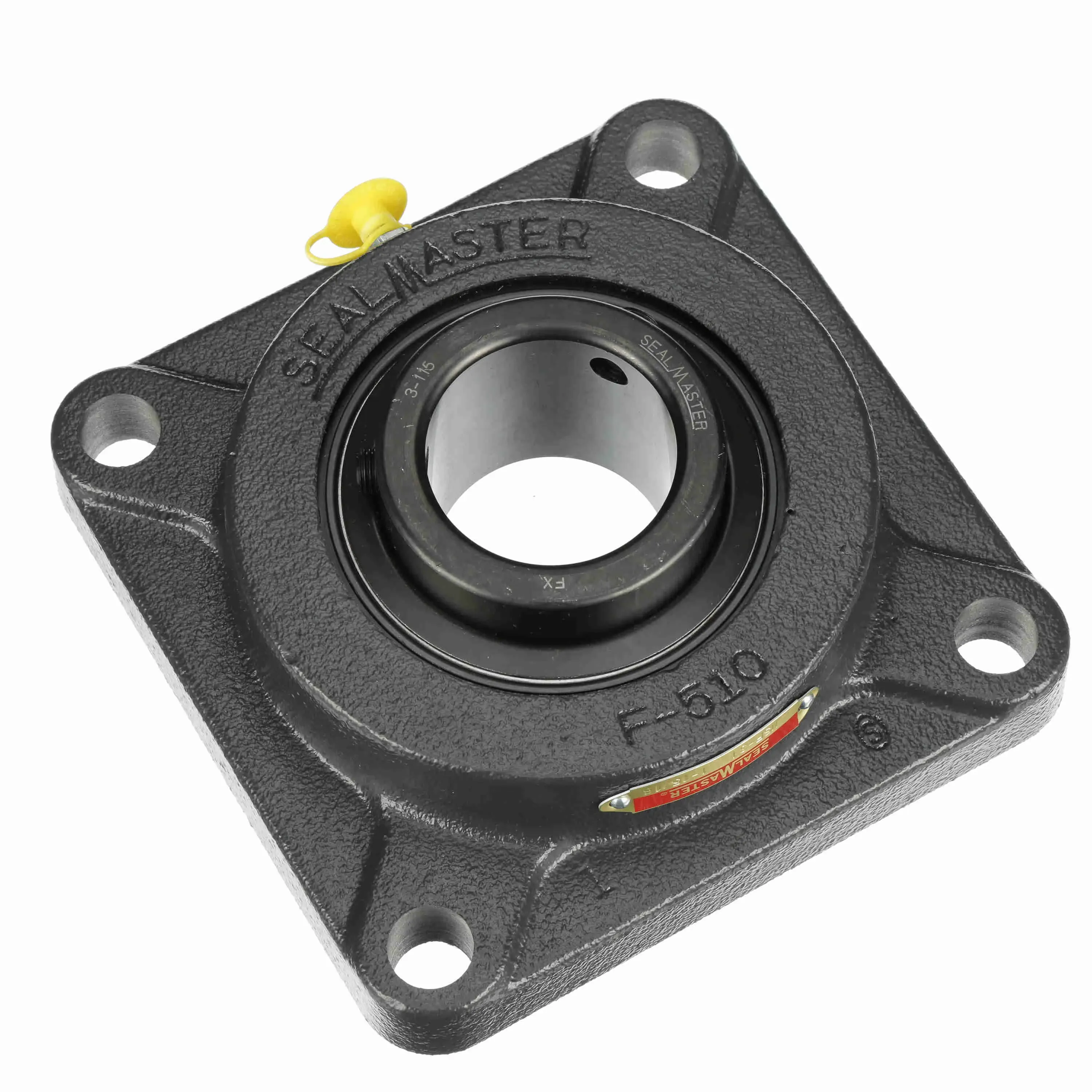

SEALMASTER MSFD-24 726139 Flange-Mount Ball Bearing Unit, 1-1/2 Inch Bore
1 1/2"
Get it by Tuesday, Aug 25
€363.86 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Ability To Relubricate | Yes |
| Bearing Insert Finish | Black Oxide |
| Bearing Insert Material | Steel |
| Bearing Insert Material Grade | 52100 |
| Bearing Insert Type | Medium Duty |
| Bolt Size | 9/16" |
| Bolt Spacing | 4 1/8" |
| Bore Dia. | 1 1/2" |
| Bore Shape | Straight |
| Cage Material | Polyphenylene Sulfide |
| Cage Type | Land Riding Retainer |
| Dynamic Load Capacity | 7901 lbs. |
| End Cap | No |
| Fixed Vs. Expansion | Fixed |
| Foot Height | 14/25" |
| Grease Fitting Thread Size | 1/4"-28 |
| Housing Backside Inside Dia. | 3.88" |
| Housing Coating | Powder Coated |
| Housing Color | Black |
| Housing Construction | One Piece |
| Housing Material | Cast Iron |
| Housing Style | Flange Block |
| Housing Type | Flange, Four Bolt |
| Htc | 8483.20.4040 |
| Inner Race Heat Treat Method | Zone Hardened |
| Insert | 3-18D |
| Inside Ring Outside Dia. | 2.307" |
| Length Through Bore | 2 3/8" |
| Lubrication Type | Lithium Complex NLGI 2 Grease |
| Max. Operating Temp. | 220°F |
| Max. Speed | 5300 RPM |
| Misalignment Capability | -2° to +2° |
| Misalignment Type | Static Only |
| Outer Ring Land Profile | Standard |
| Overall Height | 2 3/8" |
| Overall Length | 5.38" |
| Overall Width | 5.38" |
| Pilot Configuration | No Pilot |
| Radial Clearance | Standard |
| Rolling Element | Ball Bearing |
| Seal Type | Felt Labyrinth Seal |
| Shaft Locking Type | Double Set Screw |
| Size Code | 2-111 |
| Static Load Rating | 5139 lbs. |
Shipping Info:
| Ship weight (kg) | 2.84 |
| Ship height (cm) | 13.67 |
| Ship length (cm) | 13.97 |
| Ship width (cm) | 8.89 |
| Country of Origin | US |
Product Variants
| Product | Model | Seal Type | Bore Dia. | Max. Operating Temp. | Shaft Size | Insert Material | Housing Type | Rolling Element | Bolt Size | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
MSFD-39C | Contact Seal | - | 250°F | 2 7/16" | Steel | Four Bolt Flange | Ball | - | €814.91 | |
 |
MSFD-28 | Standard Felt Seal | - | 250°F | 1 3/4" | Steel | Four Bolt Flange | Ball | - | €498.81 | |
 |
MSFD-19 | Standard Felt Seal | - | 250°F | 1 3/16" | Steel | Four Bolt Flange | Ball | - | €275.04 | |
 |
MSFD-71 | - | 4 7/16" | - | 4 7/16" | Steel | - | - | 1 1/4" | €8,053.61 | |
 |
MSFD-48 | Standard Felt Seal | - | 250°F | 3" | Steel | Four Bolt Flange | Ball | - | €1,315.31 | |
 |
MSFD-43 | Standard Felt Seal | - | 250°F | 2 11/16" | Steel | Four Bolt Flange | Ball | - | €912.74 | |
 |
MSFD-27 | Standard Felt Seal | - | 250°F | 1 11/16" | Steel | Four Bolt Flange | Ball | - | €434.29 |
