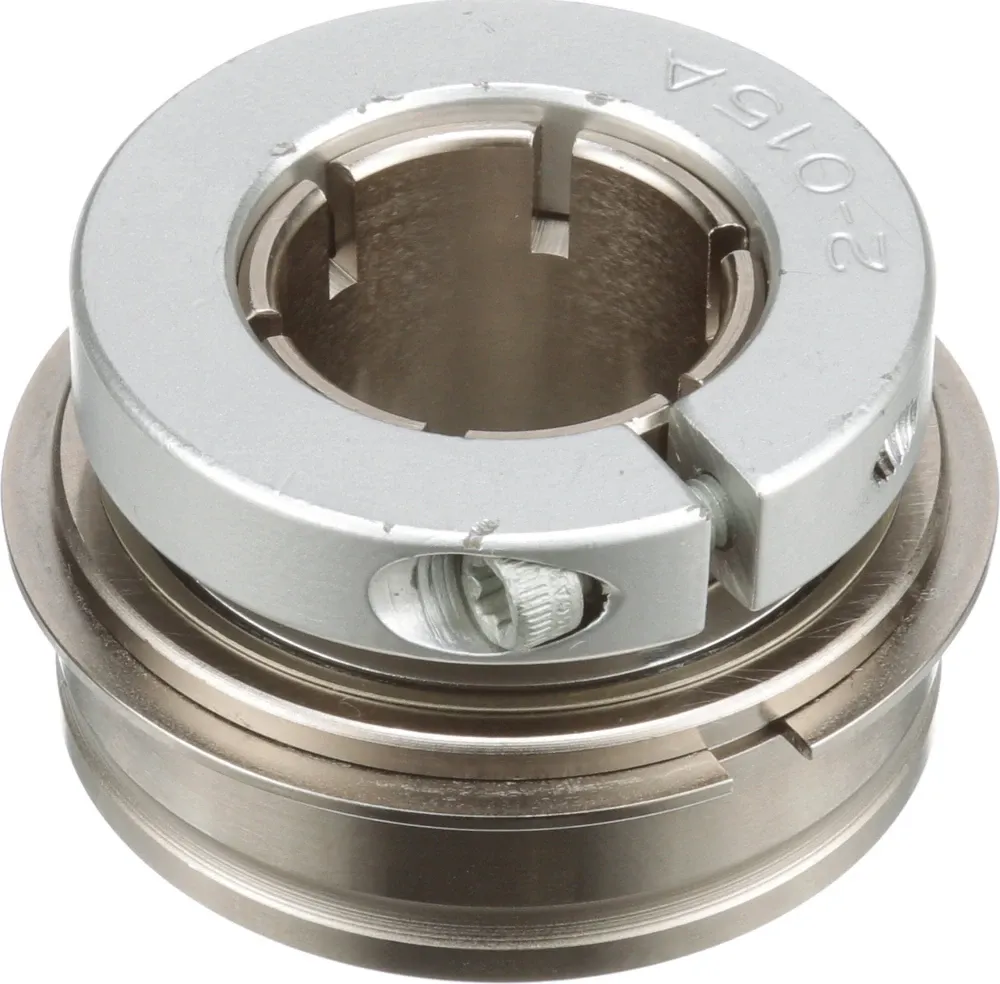

SEALMASTER ERX-PN20RT Ball Insert Bearing, Cylindrical Bore, 1-1/4 Inch Inside Dia.
Get it by Tuesday, Jul 14
€316.62 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Bearing Type | Insert |
| Bore Type | Round |
| Cage Material | PPS |
| Collar Dia. | 2.188" |
| Duty Type | Standard Duty |
| Dynamic Radial Load Capacity | 4381 lbs. |
| Expansion Type | Non-Expansion Bearing (Fixed) |
| Family Series | Sealmaster Bearings, ERX Series |
| Fillet Radius | 1/25" |
| Housing Type | Insert (Er Style) |
| Insert Material | Bearing Steel, Phosphorus Nickel Coated |
| Insert Material | 52100 Bearing Steel, Phosphorus Nickel Coated |
| Locking Device | Skwezloc |
| Lubricant | Calcium Sulfonate Nlgi 2 Nsf H1 Food Grade Grease |
| Operating Temp. Range | -20°F to +220°F |
| Outer Ring Width | 7/8" |
| Outside Dia. | 2.441" |
| Relubricatable | Yes |
| Retainer Type | Land Riding Retainer |
| Seal Type | High Performance Seal |
| Series | ERX Series |
| Set Screw Thread Size | 5/16"-24 UNF, 0.313" |
| Static Radial Load Capacity | 2567 lbs. |
Shipping Info:
| Ship weight (kg) | 0.45 |
| Ship width (cm) | 3.97 |
Product Variants
| Product | Model | Housing Type | Bore Dia. | Overall Width | Seal Type | Max. Operating Temp. | Max. Speed | Dynamic Radial Load Capacity | Locking Device | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
ERX-35 HI | Insert Er Style | 2 3/16" | 2.188" | High Temp Labyrinth | 400°F | 1400 RPM | 9752 lbs. | - | €270.45 | |
 |
ERX-PN31T | Insert Er Style | 1 15/16" | 2.094" | Triple Lip Contact Seal | 220°F | 1500 RPM | 7889 lbs. | - | €432.75 | |
 |
ERX-12T LO | Insert Er Style | 3/4" | 1.281" | Cut Down Felt Labyrinth | 220°F | 5800 RPM | 2611 lbs. | - | €140.54 | |
 |
ERX-PN20 | Insert Er Style | 1 1/4" | 1.688" | Triple Lip Contact Seal | 220°F | 2000 RPM | 5782 lbs. | - | €237.30 | |
|
ERX-PN23T | Insert Er Style | 1 7/16" | 1 3/4" | Triple Lip Contact Seal | 220°F | 2000 RPM | 5782 lbs. | - | €290.90 | |
 |
ERX-39 XLO | Insert Only | - | - | Extra Low Drag Felt | - | - | - | Single Set Screw | €336.38 | |
 |
ERX-12 XLO | Insert Er Style | 3/4" | 1.219" | Cut Down Felt Labyrinth | 220°F | 2900 RPM | 2611 lbs. | - | €68.45 |
