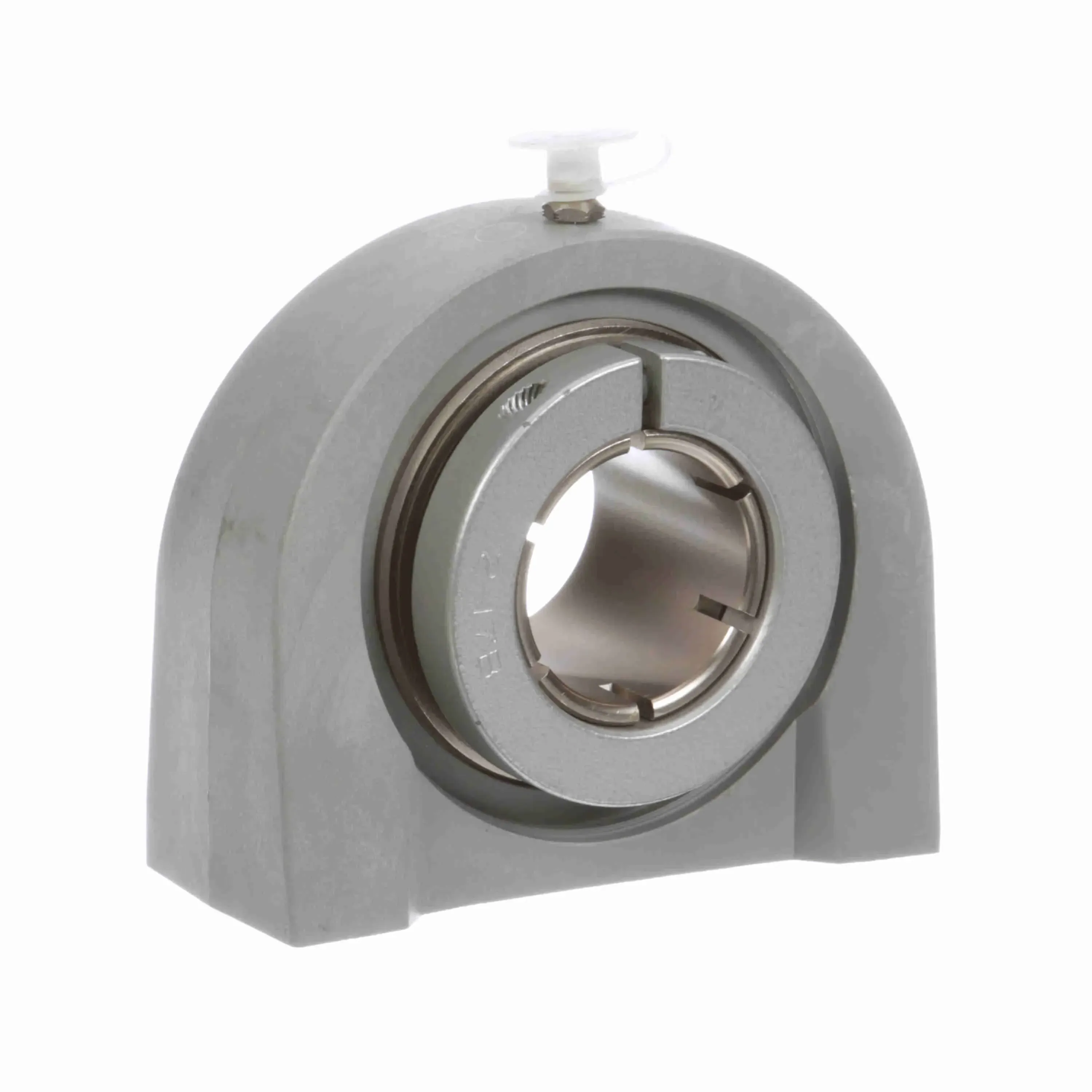

SEALMASTER CRTBC-PN23T 711407 Tapped Base Pillow Block Unit, 1-7/16 Inch Bore, Composite Material, Standard Duty
Get it by Tuesday, Sep 1
€378.71 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Ability To Relubricate | Yes |
| Base Length | 4 1/4" |
| Base To Center Height | 1 7/8" |
| Base Width | 1 22/25" |
| Bearing Insert Finish | Phosphorus Nickel Coated |
| Bearing Insert Material | Steel |
| Bearing Insert Material Grade | 52100 |
| Bearing Insert Type | Standard Duty |
| Bolt Spacing | 3 1/4" |
| Bore Dia. | 1 7/16" |
| Bore Shape | Straight |
| Cage Material | Polyphenylene Sulfide |
| Cage Type | Land Riding Retainer |
| Centerline To Outermost Bearing Face | 1" |
| Dynamic Load Capacity | 5782 lbs. |
| End Cap | Yes |
| Fixed Vs. Expansion | Fixed |
| Grease Fitting Thread Size | 1/4"-28 |
| Housing Base | Solid |
| Housing Color | Gray |
| Housing Construction | One Piece |
| Housing Material | Composite |
| Housing Style | Pillow Block |
| Housing Type | Pillow Block, Tapped Base |
| Housing Width | 1 22/25" |
| Htc | 8483.20.8040 |
| Inner Race Heat Treat Method | Zone Hardened |
| Insert | PN-23T |
| Inside Ring Outside Dia. | 1.862" |
| Ip Rating | IP69K |
| Length Through Bore | 1 11/16" |
| Locking Collar Outside Dia. | 2.563" |
| Lubrication Type | Calcium Sulfonate Nlgi 2 Nsf H1 Food Grade Grease |
| Max. Operating Temp. | 220°F |
| Max. Speed | 2000 RPM |
| Misalignment Capability | -2° to +2° |
| Misalignment Type | Static Only |
| Options | Corrosion Resistant |
| Outer Ring Land Profile | Standard |
| Overall Height | 3 3/4" |
| Overall Length | 4.41" |
| Overall Width | 1 22/25" |
| Radial Clearance | Standard |
| Rolling Element | Ball Bearing |
| Seal Type | Multi-Lip Contact Seal |
| Shaft Locking Type | Concentric |
| Size Code | 2-17 |
| Static Load Rating | 3493 lbs. |
| Thread Depth | 3/4" |
| Thread Size | 1/2"-13 |
Shipping Info:
| Ship weight (kg) | 1.02 |
| Ship height (cm) | 5.08 |
| Ship length (cm) | 12.7 |
| Ship width (cm) | 12.7 |
| Country of Origin | US |
Product Variants
| Product | Model | Seal Type | Bore Dia. | Overall Height | Dynamic Load Capacity | Overall Width | Base Width | Base To Center Height | Htc | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
CRTBC-PN208T | Multi-Lip Contact Seal | 1 1/2" | 3.93" | 7340 lbs. | 2" | 1 22/25" | 1 15/16" | 8483.20.8040 | €489.64 | |
 |
CRTBC-PN16 RMW | Multi-Lip Contact Seal | 1" | 2.81" | 2801 lbs. | 1 1/2" | 1 1/2" | 1.438" | 8483.20.8040 | €242.21 | |
|
CRTBC-PN16T RMW | Multi-Lip Contact Seal | 1" | 2.81" | 2801 lbs. | 1 1/2" | 1 1/2" | 1.688" | 8483.20.8040 | €250.51 | |
 |
CRTBC-PN12 | Multi-Lip Contact Seal | 3/4" | 2 14/25" | 2611 lbs. | 1 1/2" | 1 1/2" | 1.312" | 8483.20.8040 | €230.81 | |
|
CRTBC-PN20T | Multi-Lip Contact Seal | 1 1/4" | 3 3/4" | 5782 lbs. | 1 22/25" | 1 22/25" | 1 7/8" | 8483.20.8040 | €378.68 | |
 |
CRTBC-PN24T RMW | Multi-Lip Contact Seal | 1 1/2" | 3.93" | 7340 lbs. | 2" | 1 22/25" | 1 15/16" | 8483.20.8040 | €406.28 | |
 |
CRTBC-PN23 RMW | Multi-Lip Contact Seal | 1 7/16" | 3 3/4" | 5782 lbs. | 1 22/25" | 1 22/25" | 1 7/8" | 8483.20.8040 | €325.63 |
