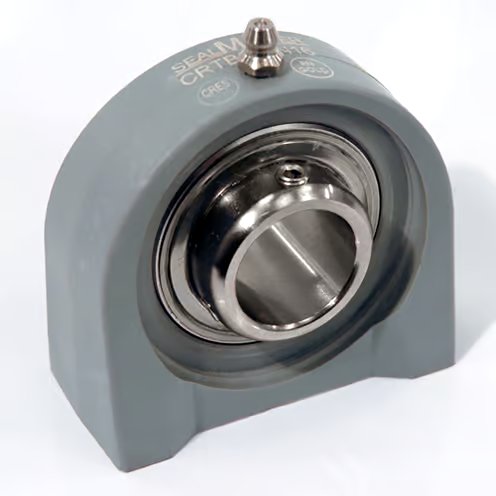

SEALMASTER CRTBC-PN23 RMW 706476 Pillow Block Bearing, 2 Bolt Tap Base Pillow Block, 1.43 Inch Bore, Set Screw Mount
Get it by Friday, Apr 17
€325.63 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Pillow Block Bearing |
| Ability To Relubricate | No |
| Base Length | 4 1/4" |
| Base To Center Height | 1 7/8" |
| Base Width | 1 22/25" |
| Bearing Insert Finish | Phosphorus Nickel Coated |
| Bearing Insert Material | Steel |
| Bearing Insert Material Grade | 52100 |
| Bearing Insert Type | Standard Duty |
| Bolt Spacing | 3 1/4" |
| Bore Dia. | 1 7/16" |
| Bore Shape | Straight |
| Cage Material | Polyphenylene Sulfide |
| Cage Type | Land Riding Retainer |
| Centerline To Outermost Bearing Face | 1" |
| Dynamic Load Capacity | 5782 lbs. |
| End Cap | Yes |
| Fixed Vs. Expansion | Fixed |
| Grease Fitting Thread Size | 1/4"-28 |
| Housing Base | Solid |
| Housing Color | Gray |
| Housing Construction | One Piece |
| Housing Material | Composite |
| Housing Style | Pillow Block |
| Housing Type | Pillow Block, Tapped Base |
| Housing Width | 1 22/25" |
| Htc | 8483.20.8040 |
| Inner Race Heat Treat Method | Zone Hardened |
| Inner Ring Outside Dia. | 1.8594" |
| Inner Ring Outside Diameter | 1.8594" |
| Insert | PN-23 |
| Ip Rating | IP69K |
| Length Through Bore | 1 11/16" |
| Lubrication Type | Calcium Sulfonate Nlgi 2 Nsf H1 Food Grade Grease |
| Max. Operating Temperature | 220°F |
| Max. Speed | 2000 RPM |
| Misalignment Capability | -2° to +2° |
| Misalignment Type | Static Only |
| Options | Corrosion Resistant Reduced Maintenance Lubed For Life |
| Outer Ring Land Profile | Tapered Lands |
| Overall Height | 3 3/4" |
| Overall Length | 4.41" |
| Overall Width | 1 22/25" |
| Radial Clearance | Standard |
| Rolling Element | Ball Bearing |
| Seal Type | Multi-Lip Contact Seal |
| Shaft Locking Type | Set Screw |
| Size Code | 2-17 |
| Static Load Rating | 3493 lbs. |
| Thread Depth | 3/4" |
| Thread Size | 1/2"-13 |
Shipping Info:
| Ship weight (kg) | 1.02 |
| Ship height (cm) | 5.08 |
| Ship length (cm) | 12.7 |
| Ship width (cm) | 12.7 |
| Country of Origin | US |
Product Variants
| Product | Model | Housing Type | Shaft Locking Type | Bore Dia. | Overall Length | Overall Width | Overall Height | Seal Type | Insert | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |

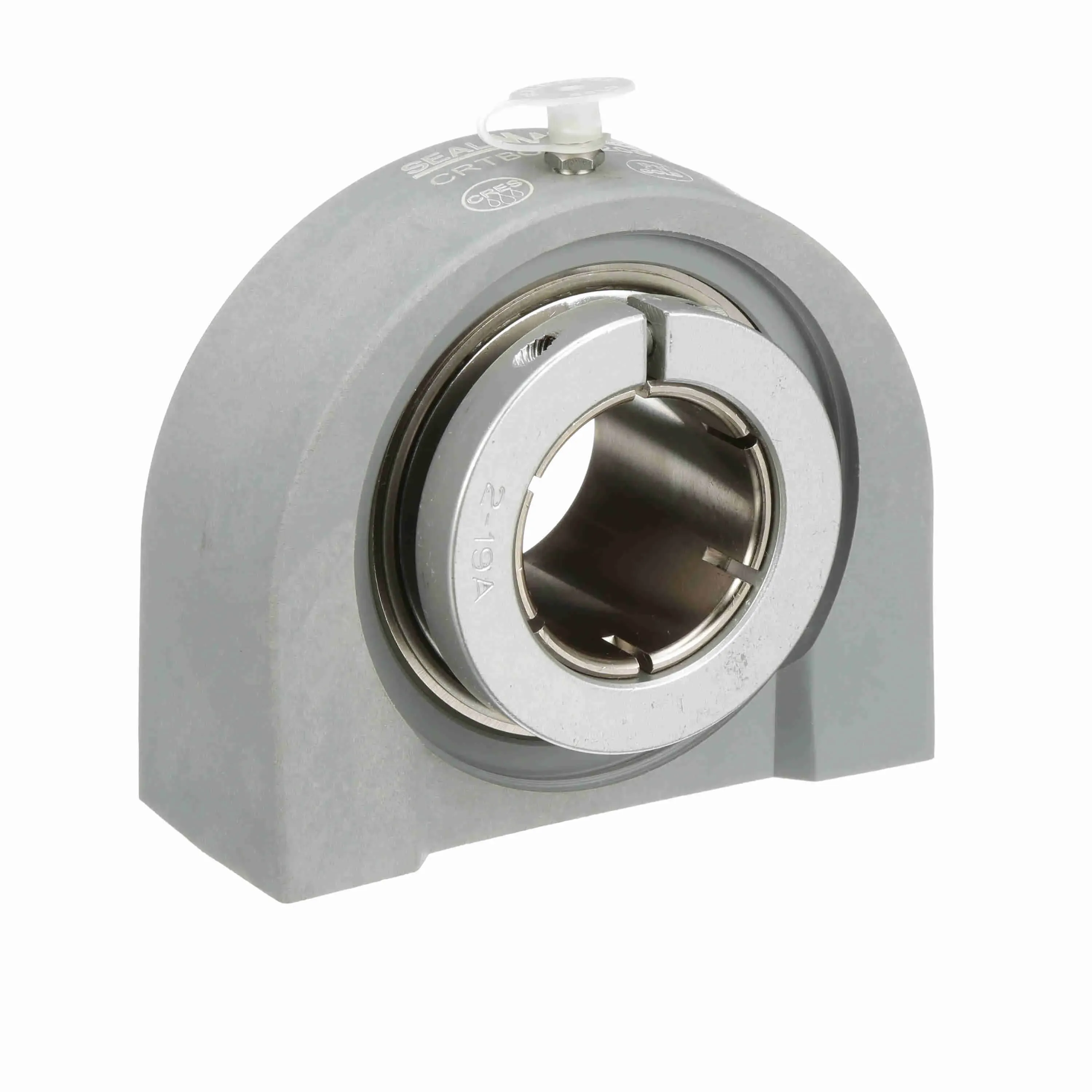

CRTBC-PN208T | Pillow Block, Tapped Base | Concentric | 1 1/2" | 4.63" | 2" | 3.93" | Multi-Lip Contact Seal | PN-208T | €489.64 | |
 |
CRTBC-PN16 RMW | Pillow Block, Tapped Base | Set Screw | 1" | 3" | 1 1/2" | 2.81" | Multi-Lip Contact Seal | PN-16 | €242.21 | |
|
CRTBC-PN16T RMW | Pillow Block, Tapped Base | Concentric | 1" | 3" | 1 1/2" | 2.81" | Multi-Lip Contact Seal | PN-16T | €250.51 | |
 |

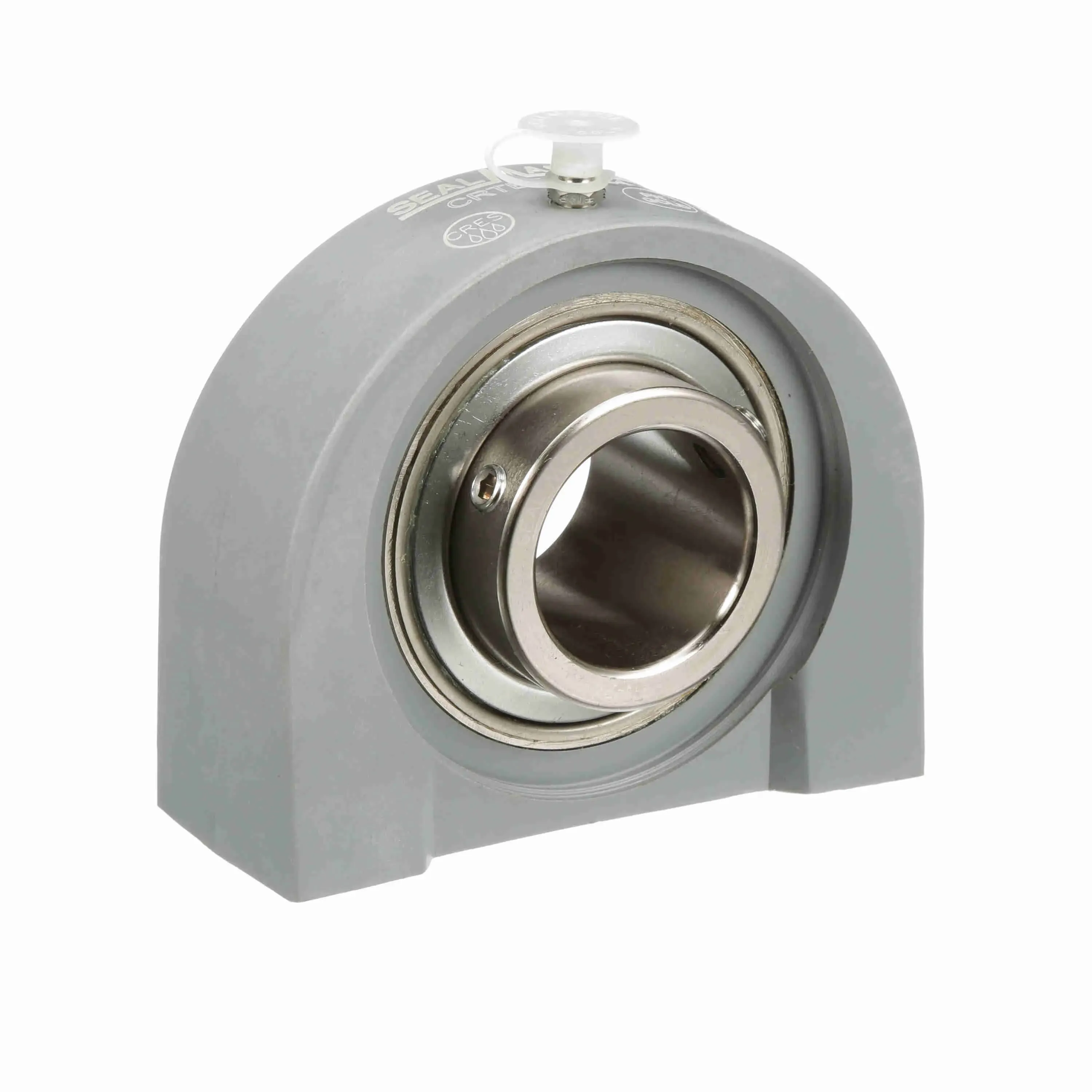

CRTBC-PN12 | Pillow Block, Tapped Base | Set Screw | 3/4" | 3.11" | 1 1/2" | 2 14/25" | Multi-Lip Contact Seal | PN-12 | €230.81 | |
|
CRTBC-PN20T | Pillow Block, Tapped Base | Concentric | 1 1/4" | 4.41" | 1 22/25" | 3 3/4" | Multi-Lip Contact Seal | PN-20T | €378.68 | |
 |

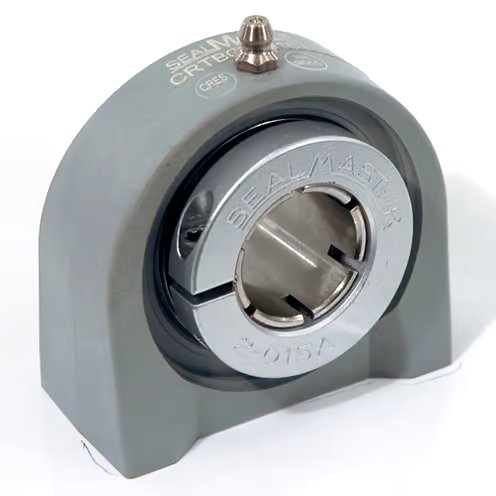

CRTBC-PN24T RMW | Pillow Block, Tapped Base | Concentric | 1 1/2" | 4.63" | 2" | 3.93" | Multi-Lip Contact Seal | PN-24T | €406.28 | |
|
CRTBC-PN20R | Pillow Block, Tapped Base | Set Screw | 1 1/4" | 4" | 1 1/2" | 3.38" | Multi-Lip Contact Seal | PN-20R | €271.54 |
