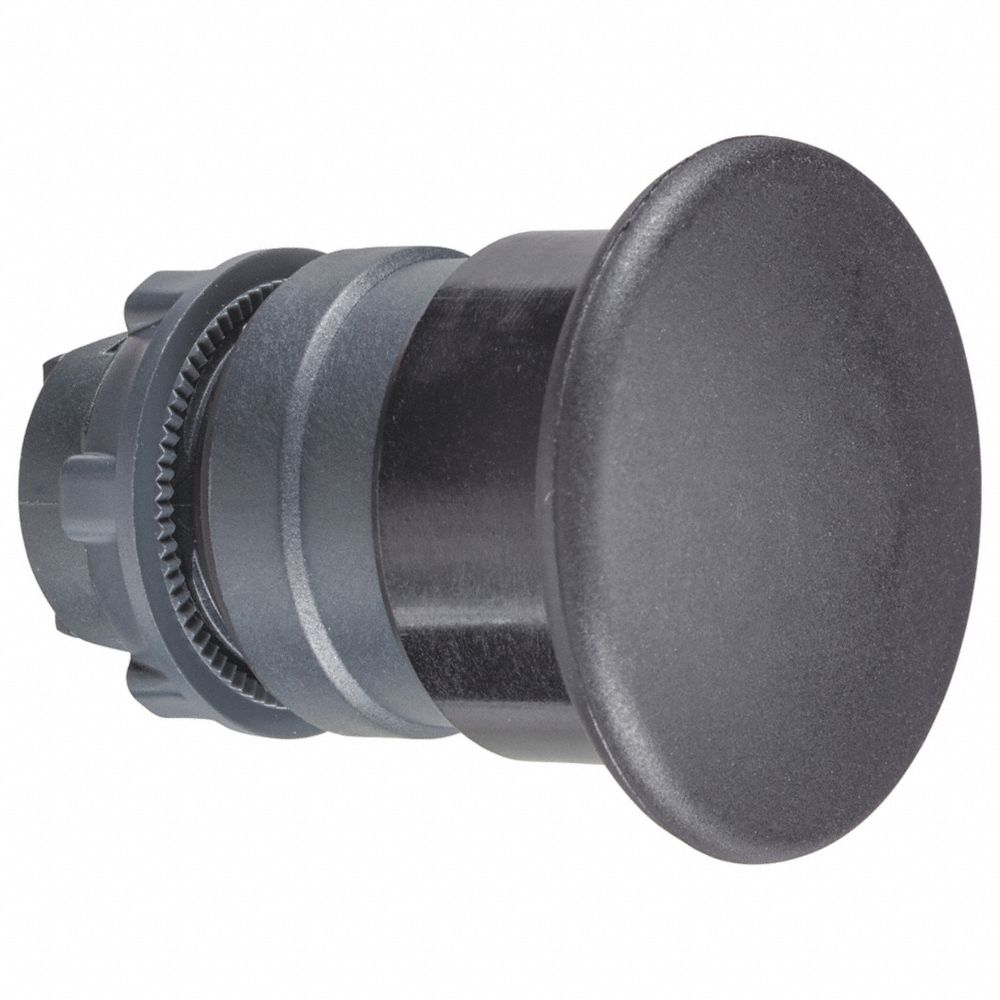

SCHNEIDER ELECTRIC ZB5AC2TQ Push Button Head, Momentary Action, 22mm Size
Get it by Tuesday, Aug 25
€ 34,99 Flat Shipping + VAT € 34,99 flat shipping is applicable on orders with an aggregate weight less than 10kg. Orders exceeding 10kg will be charged default shipping rates.
13.00% off
€28.70 /unit
This product can only be shipped in multiples of 100Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Head |
| Action | Momentary |
| Basic Material | Plastic |
| Bezel Material | Plastic |
| Cad Overall Depth | 52 mm |
| Cad Overall Height | 40 mm |
| Cad Overall Width | 40 mm |
| Color | Black |
| Features | Distinguishable By Touch, Snap-Fit Assembly, Visually Distinct At A Distance, Withstands Harsh Environments |
| Head Material | Plastic |
| Head Size | 40 mm |
| Head/lens Color | Black |
| Ip Rating | IP66 |
| Legend | No Legend |
| Legend/background Color | No Legend |
| Max. Operating Temp. | 158°F |
| Min. Operating Temp. | -40°F |
| Mounting Dia. | 22 mm |
| Mushroom Head Dia. | 40 mm |
| Nema Enclosure Rating | NEMA 1, NEMA 2, NEMA 3, NEMA 3R, NEMA 4, NEMA 4X, NEMA 12, NEMA 13 |
| No. Of Indicator Lights | 0 |
| No. Of Operators | 1 |
| Operator Illumination | Non Illuminated |
| Operator Material | Plastic |
| Overall Depth | 2.05" |
| Overall Height | 1.57" |
| Overall Width | 1.57" |
| Panel Mounting Hole Dia. | 22 mm |
| Product Datasheet | schneider-electric-zb5ac2tq.pdf |
| Product Type | Push Button Operators |
| Push Button Style | Mushroom Head |
| Resistance Properties | Dust Resistant, Impact Resistant, Vibration Resistant, Watertight |
| Series | XB5 Series |
| Shape Of Signaling Unit Head | Round |
Shipping Info:
| Ship weight (kg) | 0.03 |
| Country of Origin | CZ |
Documentation:
Product Variants
| Product | Model | Head Material | Bezel Material | Panel Mounting Hole Dia. | Operator Material | Color | Legend | Ip Rating | Product Type | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
ZB4BD28 | Aluminum, Zinc | Die Cast Aluminum | 0.87" | - | Black | No Legend | IP69, IP69K | Toggle Switch | €57.97 | |
 |
ZB5AS55 | Plastic | Plastic | - | - | Yellow | No Legend | - | - | €130.48 | |
 |
ZB5AS834 | Plastic | Plastic | 22 mm | Plastic | Red | No Legend | IP66 | Multihead Operators | €120.01 | |
 |
9001KR24RM | Metal | Metal | 30 mm | Metal | Red | No Legend | IP66 | Push Button Operators | €116.98 | |
 |
9001KR25GM | Metal | Metal | 30 mm | Metal | Green | No Legend | IP66 | Push Button Operators | €141.70 | |
 |
9001KR16 | Plastic | Metal | 30 mm | Plastic | Red | No Legend | IP66 | Emergency Stop Push Buttons | - | RFQ
|
 |
9001K15 | Metal | Metal | 30 mm | Metal | Black | No Legend | IP66 | Emergency Stop Push Buttons | €182.88 |
