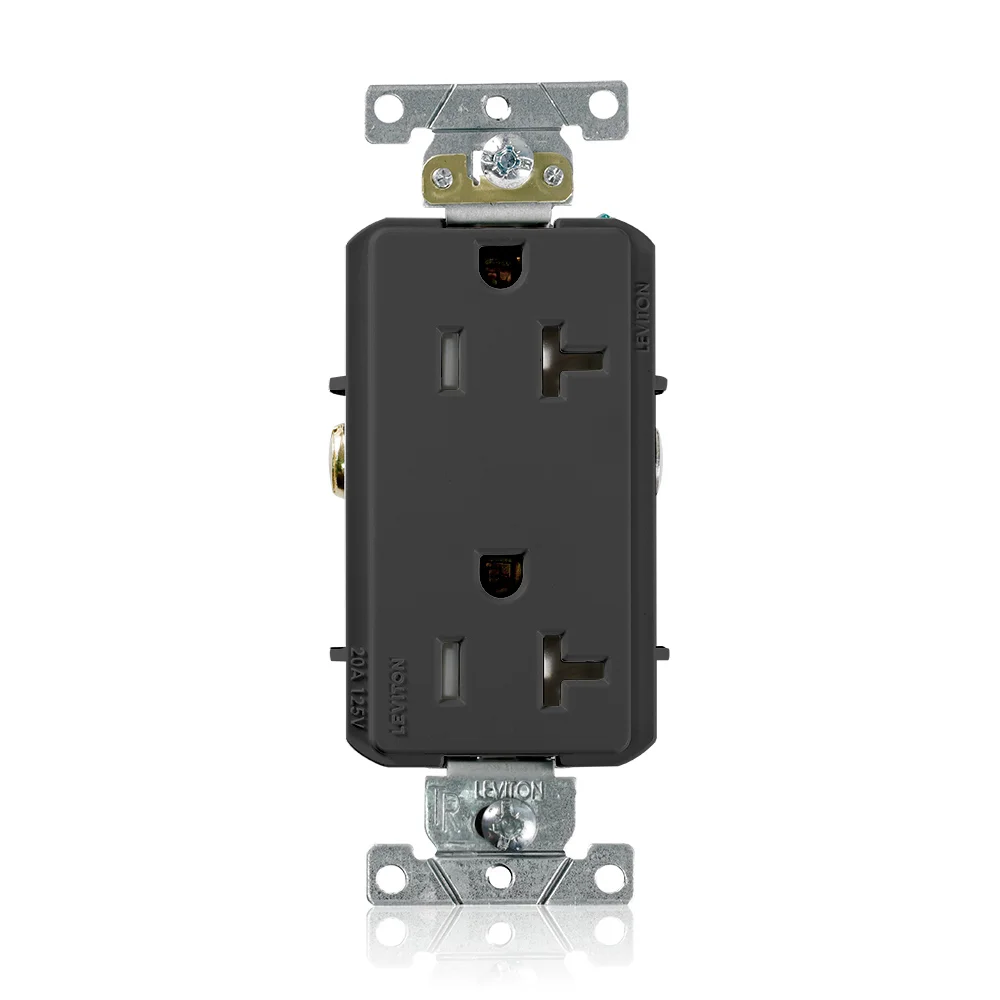

LEVITON TDR20-E Duplex Heavy Duty Tamper Resistant Straight Blade Receptacle, 1 Phase, 125 VAC, 20 A, 2 Poles, 3 Wires, Black
Item: CR9HRGModel: TDR20-ECross Ref: 792UU9
7 In Stock
Ships within 2 days via
5.00% off
€27.78 /unit
This product can only be shipped in multiples of 50Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Receptacle |
| Amps | 20A |
| Body Material | PBT Polyester , PBT Polyester Blend |
| Color | Black |
| Connection Orientation | Straight |
| Contact Material | Brass |
| Cover Type | No Cover |
| Depth | 0.89" |
| Device Type | Duplex Receptacle Outlet |
| Dielectric Voltage | Withstands 3000V Minimum |
| Face Material | PBT Polyester Blend |
| Face Plate Height | 2.77" |
| Features | Tamper Resistant, Smooth Face |
| Flammability | Rated V-0 Per UL 94 |
| Gfci | No |
| Grade | Heavy Duty Industrial Specification Grade |
| Ground Clips Material | Brass |
| Ground Contacts Material | Brass |
| Grounding | Grounded , Self Grounding |
| Grounding Screw | #8 Hex Head, Triple Drive Bass |
| Housing Color | Black |
| Hp | 1 hp |
| Hp Rating | 1 hp |
| Includes | Cover, Wallplate |
| Line Contacts Material | Phosphor Bronze |
| Line Contacts Style | Triple Wipe |
| Line Contacts Thickness | 0.031" |
| Max. Operating Temp. | 75°C |
| Min. Operating Temp. | -40°C |
| Min. Wire Size | 14 AWG |
| Mount Hole Center-to-center Height | 3 7/25" |
| Mounting Hardware Included | Yes |
| Mounting Screws Finish | Triple Drive Plated |
| Mounting Screws Material | Steel |
| Mounting Type | Flush |
| Nema Rating | NEMA WD-1, NEMA WD-6 |
| Nema Receptacle Configuration | NEMA 5-20R |
| Number Of Outlets | 2 |
| Number Of Poles | 2 |
| Number Of Wires | 3 |
| Operating Temp. | -40°C to +75°C |
| Polarized | Yes |
| Receptacle Type | Decorator Duplex |
| Screw Terminal Torque | 14 lbs.-in. to 18 lbs.-in. |
| Shutter Mechanism | Acetal |
| Strap Finish | Galvanized |
| Strap Grade | Grade G60 |
| Strap Material | Steel |
| Temp. Rise | Max. 30°C Temperature Rise At Full Rated Current |
| Terminal Accom. | #14 AWG to #10 AWG |
| Terminal Clamp Material | Brass |
| Terminal Id | Brass Hot, Silver Neutral, Green Ground |
| Terminal Screws | #8 Triple Drive Brass |
| Termination | Back Or Side Wire |
| Voltage | 125V AC |
| Wire Connection Location | Back, Side |
| Wire Connection Type | Screw Terminals |
| Wire Type | Stranded Or Solid |
Shipping Info:
| Ship weight (kg) | 0.1 |
| Ship height (cm) | 21.59 |
| Ship length (cm) | 32.39 |
| Ship width (cm) | 3.86 |
| Country of Origin | MX |
Product Variants
| Product | Model | Housing Color | Color | Grounding | Face Plate Height | Mount Hole Center-to-center Height | Operating Temp. | Body Material | Receptacle Type | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
TDR20-I | Ivory | Ivory | Grounded | 2 4/5" | 3.3" | -40°C to +75°C | PBT Polyester | Decorator Duplex | €29.56 | |
 |
TDR20-W | White | White | Grounded | 2 4/5" | 3.3" | -40°C to +60°C | PBT Polyester | Decorator Duplex | €30.16 | |
 |

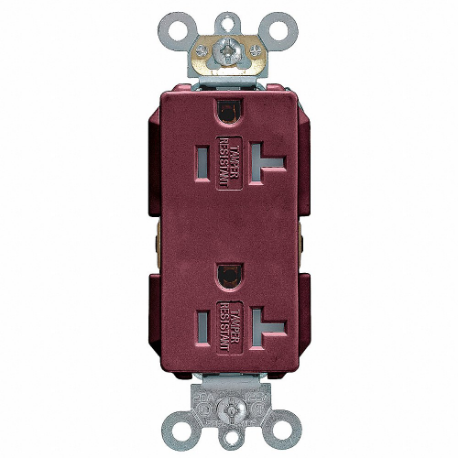

TDR20 | Brown | Brown | Grounded | 2 4/5" | 3.3" | -40°C to +75°C | PBT Polyester | Decorator Duplex | €29.56 | |
 |
TDR20-GY | Gray | Gray | Grounded | 2 4/5" | 3.3" | -40°C to +75°C | PBT Polyester | Decorator Duplex | €29.56 |
