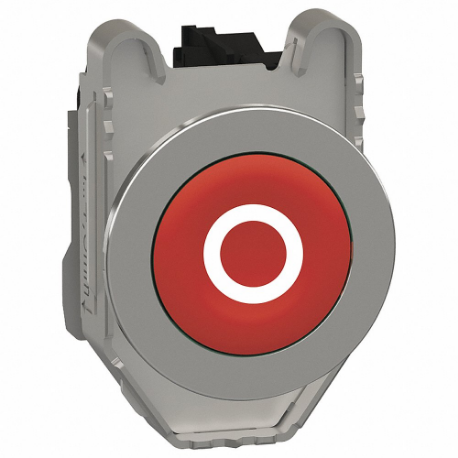

SCHNEIDER ELECTRIC XB4FA4322 Push Button, 30 mm Size, Momentary, Red, 1Nc, Flush Button
Item: CU2CYAModel: XB4FA4322Cross Ref: 55WG58
7 In Stock
Ships within 2 days via
10.00% off
€68.62 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Push Button |
| Ac Contact Rating | 1.2A @ 600V, 1.5A @ 480V, 3A @ 240V, 6A @ 120V |
| Action | Momentary |
| Action Type | Momentary |
| Bezel Material | Chrome |
| Color | Red |
| Contact Form | 1NC |
| Dc Contact Rating | 0.1A @ 600V, 0.27A @ 250V, 0.55A @ 125V |
| Display Qty | 1 |
| Features | Mercury Free |
| Head Material | Metal |
| Head/lens Color | Red |
| Ip Rating | IP66, IP67, IP69, IP69K |
| Legend | O |
| Legend Background Color | Red |
| Legend Color | White |
| Legend/background Color | Red, White |
| Manufacturer Warranty Length | 18 Months |
| Mechanical Operating Durability | 1 x 10^7 |
| Nema Enclosure Rating | NEMA 4X, NEMA 13 |
| Number Of Indicator Lights | 0 |
| Number Of Operators | 1 |
| Operating Temperature - Maximum | 158°F |
| Operating Temperature - Minimum | -40°F |
| Operator Illumination | Non Illuminated |
| Operator Material | Metal |
| Operator Voltage Rating - Maximum | 600V AC/DC |
| Overall Depth | 2.17" |
| Overall Height | 1.85" |
| Overall Width | 1 11/25" |
| Panel Mounting Hole Diameter | 30 mm |
| Product Type | Push Button Operators |
| Push Button Style | Flush |
| Resistance Properties | Vibration Resistant |
| Series | ZB4/XB4 Series |
| Terminal Connection | Screw Clamp |
| Type Of Operator | Flush Button |
Shipping Info:
| Ship weight (kg) | 0.11 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 2.54 |
| Ship width (cm) | 2.54 |
| Country of Origin | FR |
Product Variants
| Product | Model | Ip Rating | Legend | Contact Form | Type Of Operator | Nema Rating | Terminal Connection | Number Of Operators | Bezel Material | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
XB4BL21 | IP66, IP67, IP69, IP69K | No Legend | - | - | - | Screw Clamp | 1 | Chrome | €66.47 | |
 |
XB4BL41 | IP66, IP67, IP69, IP69K | No Legend | - | - | - | Screw Clamp | 1 | Chrome | €61.14 | |
 |
XB4FA3351 | IP66, IP67, IP69, IP69K | No Legend | 1NO | - | - | Screw Clamp | 1 | Chrome | €76.73 | |
 |
XB4FA31 | IP66, IP67, IP69, IP69K | No Legend | - | - | - | Screw Clamp | 1 | Chrome | €66.57 | |
 |
XB4FA3341 | IP66, IP67, IP69, IP69K | No Legend | - | - | - | Screw Clamp | 1 | Chrome | €75.50 | |
 |
XB4FA11 | IP66, IP67, IP69, IP69K | No Legend | 1NO | - | - | Screw Clamp | 1 | Chrome | €52.04 | |
 |
XB6AS8345B | - | - | - | - | - | - | - | - | - | RFQ
|
