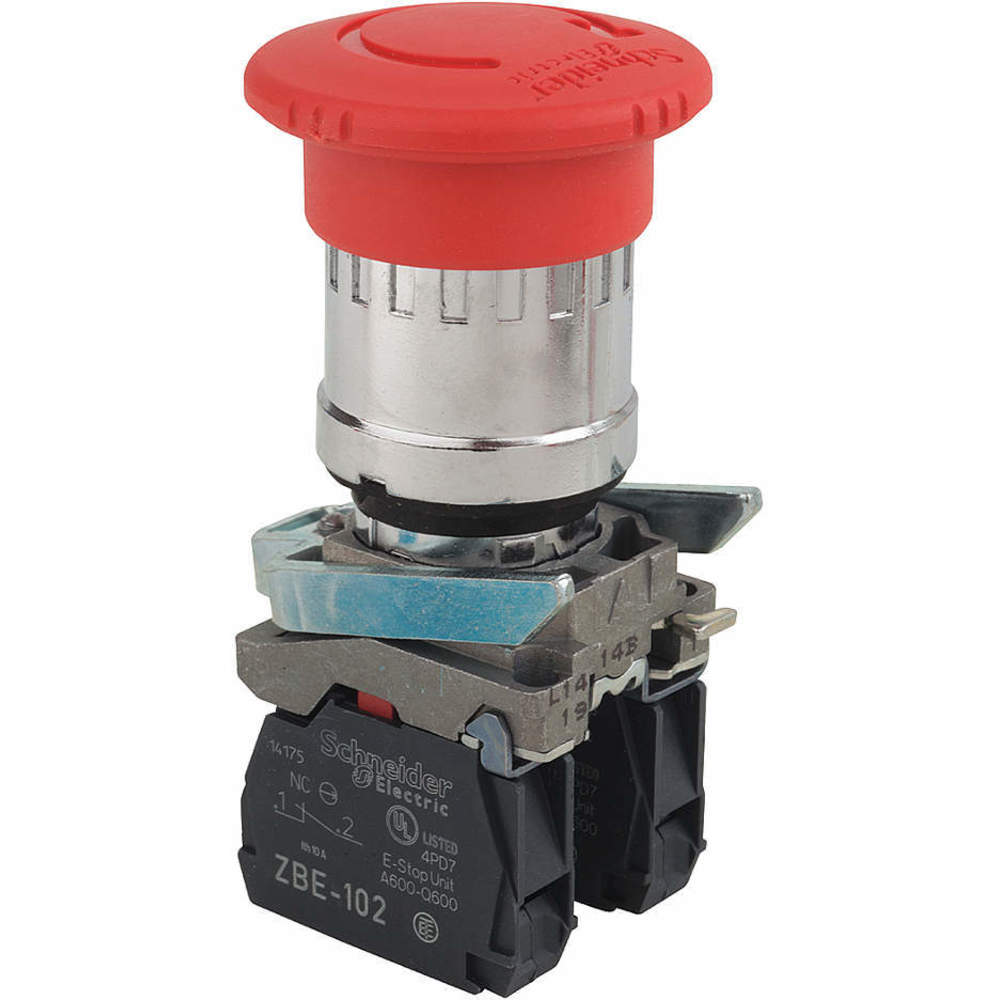

SCHNEIDER ELECTRIC XB4BS8444 Push Button Non-illuminated Red 2nc
Item: AG3FDUModel: XB4BS8444Cross Ref: 33HP34
7 In Stock
Ships within 2 days via
€113.74 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Emergency Stop Push Button |
| Ac Contact Rating | 1.2A @ 600V, 1.5A @ 480V, 3A @ 240V, 6A @ 120V |
| Action | Maintained |
| Basic Material | Metal |
| Bezel | Chrome Plated Metal |
| Bezel Finish | Metal |
| Bezel Material | Chrome |
| Color | Red |
| Contact Form | 2NC |
| Dc Contact Rating | 0.1A @ 600V, 0.27A @ 250V, 0.55A @ 125V |
| Device Presentation | Complete Product |
| Dia. | 40 mm |
| Display Qty | 1 |
| Features | Emergency Stop |
| Fixing Collar Material | Zamak |
| Head Material | Metal |
| Head/lens Color | Red |
| Ip Rating | IP66, IP67, IP69, IP69K |
| Legend | No Legend |
| Maintained Action Release | Twist |
| Material | Metal |
| Max. Operating Temp. | 158°F |
| Max. Operator Voltage Rating | 600V AC/DC |
| Mechanical Operating Durability | 3 x 10^5 |
| Min. Operating Temp. | -40°F |
| Mounting Dia. | 22 mm |
| Mushroom Head Dia. | 40 mm |
| Nema Contact Rating Designation | A600/Q600 |
| Nema Enclosure Rating | NEMA 4X, NEMA 13 |
| Nema Rating | NEMA 1, NEMA 12, NEMA 13, NEMA 2, NEMA 3, NEMA 4, NEMA 4X |
| No. Of Indicator Lights | 0 |
| No. Of Operators | 1 |
| Operator Illumination | Non Illuminated |
| Operator Material | Metal |
| Overall Depth | 3.23" |
| Overall Height | 1.85" |
| Overall Width | 1.57" |
| Panel Mounting Hole Dia. | 22 mm |
| Product Datasheet | schneider-electric-xb4bs8444.pdf |
| Product Type | Emergency Stop Push Buttons |
| Push Button Style | Mushroom Head |
| Resistance Properties | Dust Resistant, Impact Resistant, Vibration Resistant, Watertight |
| Series | XB4 Series |
| Shape Of Signaling Unit Head | Round |
| Terminal Connection | Screw Clamp |
| Terminal Connection Type | Screw Clamp |
| Type Of Operator | 40 mm Dia. Mushroom |
Shipping Info:
| Ship weight (kg) | 0.11 |
| Ship height (cm) | 4.7 |
| Ship length (cm) | 8.2 |
| Ship width (cm) | 4 |
| HS code | 8536509035 |
| Country of Origin | CZ |
Documentation:
Product Variants
| Product | Model | Ip Rating | Legend | Contact Form | Type Of Operator | Terminal Connection | Bezel Material | Max. Operating Temp. | Min. Operating Temp. | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |

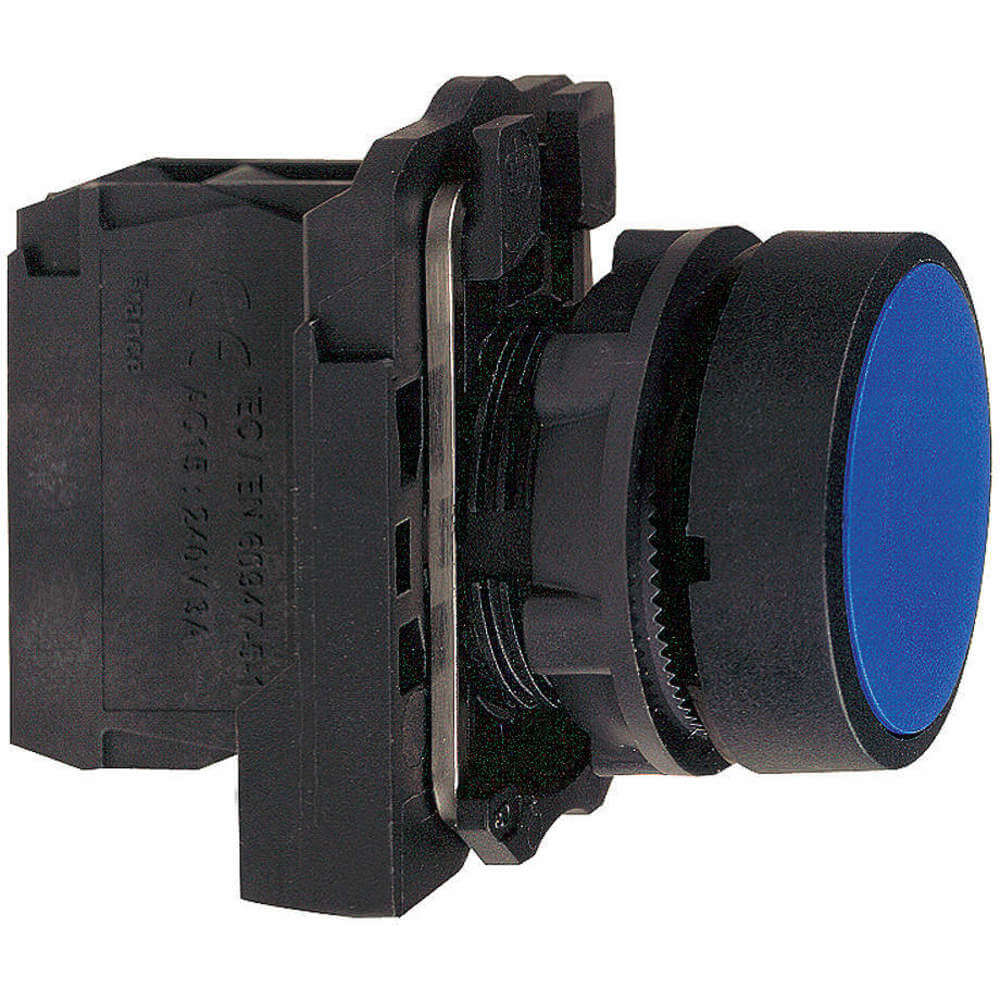

XB5AA61 | IP66, IP67, IP69, IP69K | No Legend | 1NO | Booted Button | Screw Clamp | Plastic | 158°F | -40°F | €42.07 | |
 |
9001KR1BH13 | IP66 | No Legend | SPDT | Spring Return | Screw Clamp | Metal | 158°F | -13°F | €121.19 | |
 |

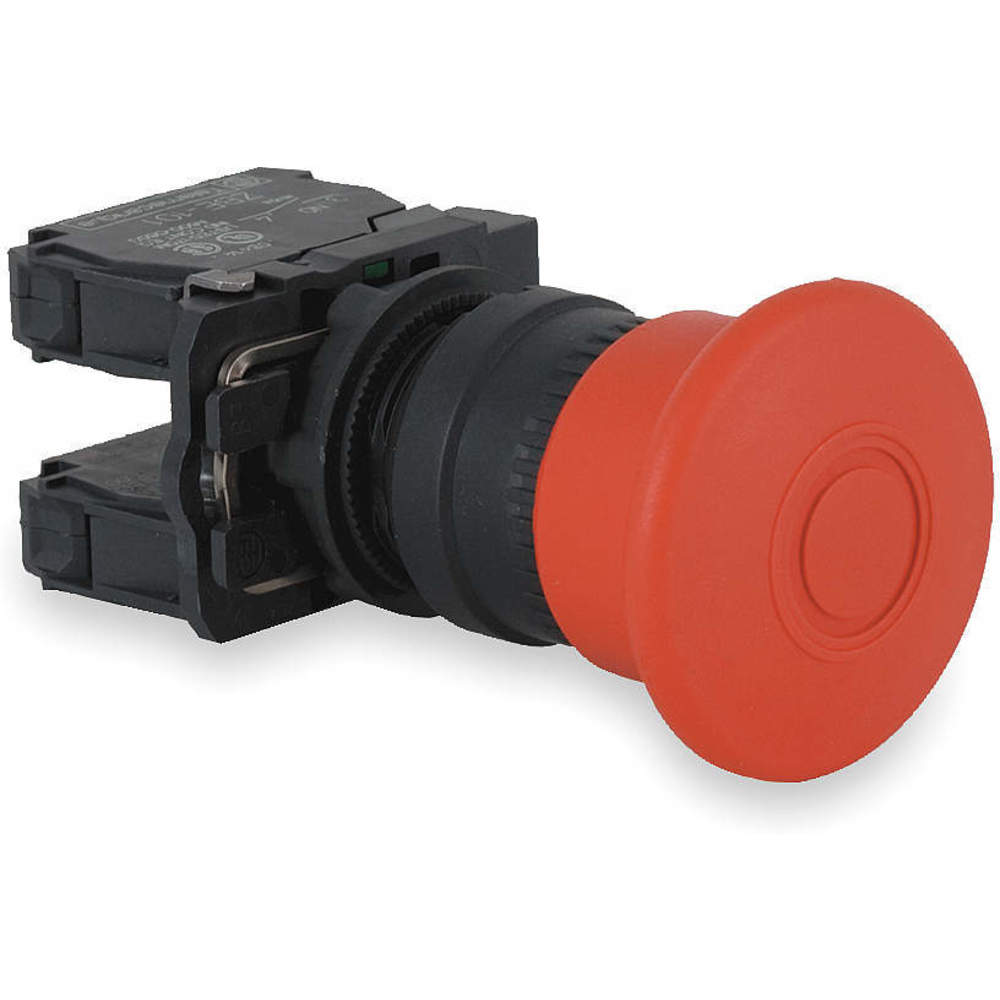

XB5AT845 | IP66, IP67, IP69, IP69K | No Legend | 1NO/1NC | 40 mm Dia. Mushroom | Screw Clamp | Plastic | 158°F | -40°F | €104.40 | |
 |

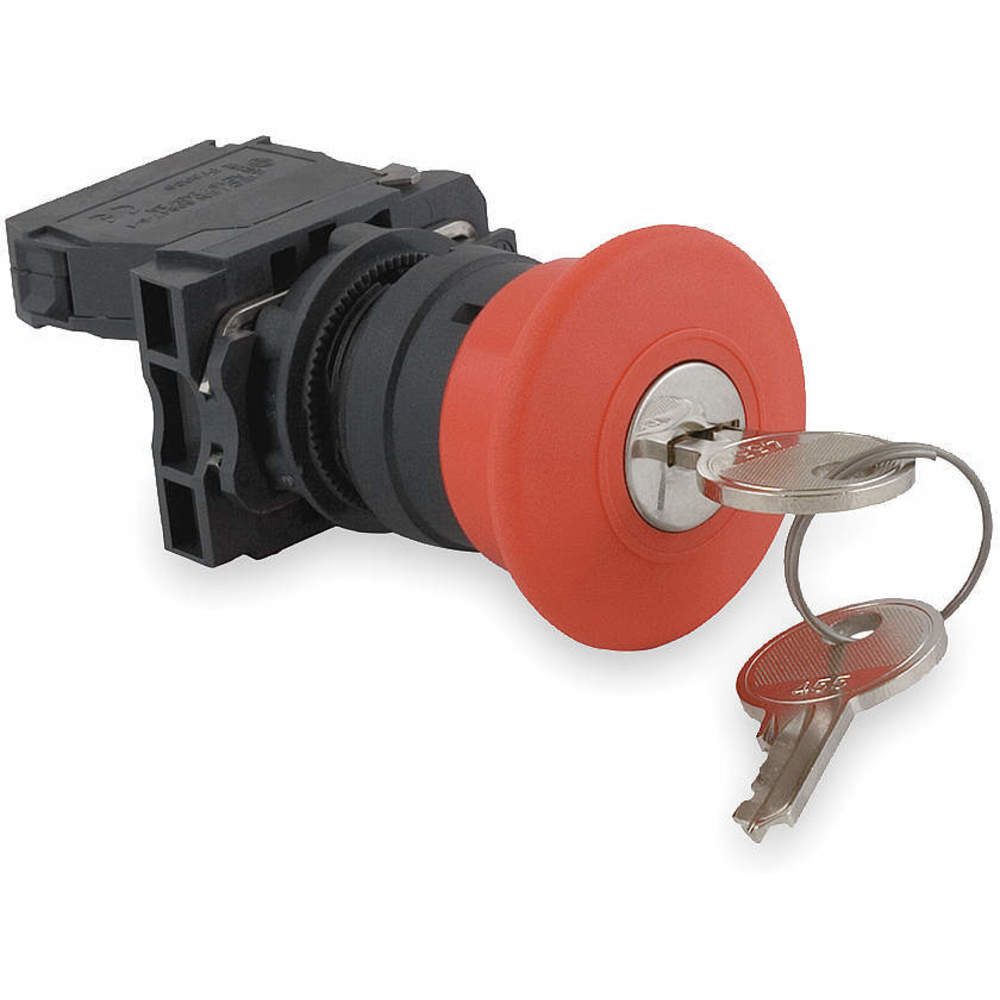

XB5AS9445 | IP66, IP67, IP69, IP69K | No Legend | 1NO/1NC | 40 mm Dia. Mushroom | Screw Clamp | Plastic | 158°F | -40°F | €165.58 | |
 |

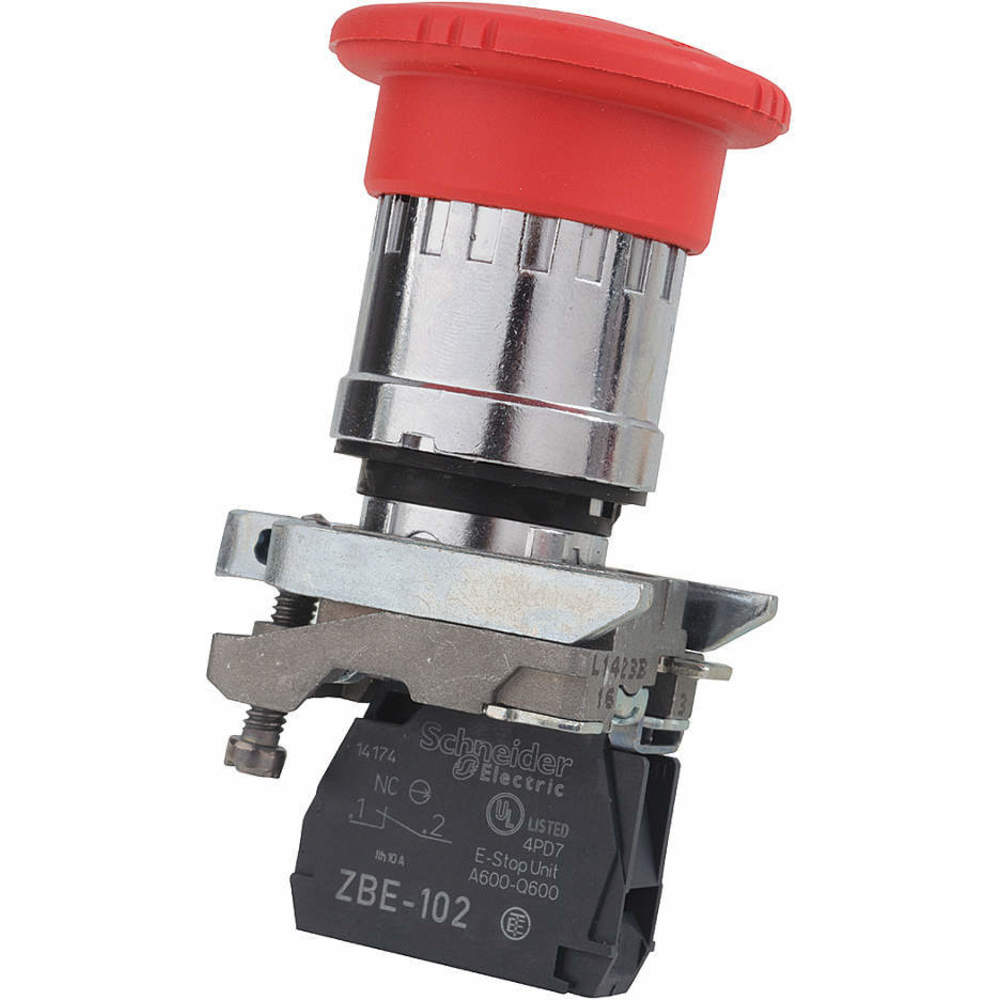

XB4BS8442 | IP66, IP67, IP69, IP69K | No Legend | 1NC | 40 mm Dia. Mushroom | Screw Clamp | Chrome | 158°F | -40°F | €122.37 | |
 |
XB4BS9442 | IP66, IP67, IP69, IP69K | No Legend | 1NC | 40 mm Dia. Mushroom | Screw Clamp | Chrome | 158°F | -40°F | €189.43 | |
 |

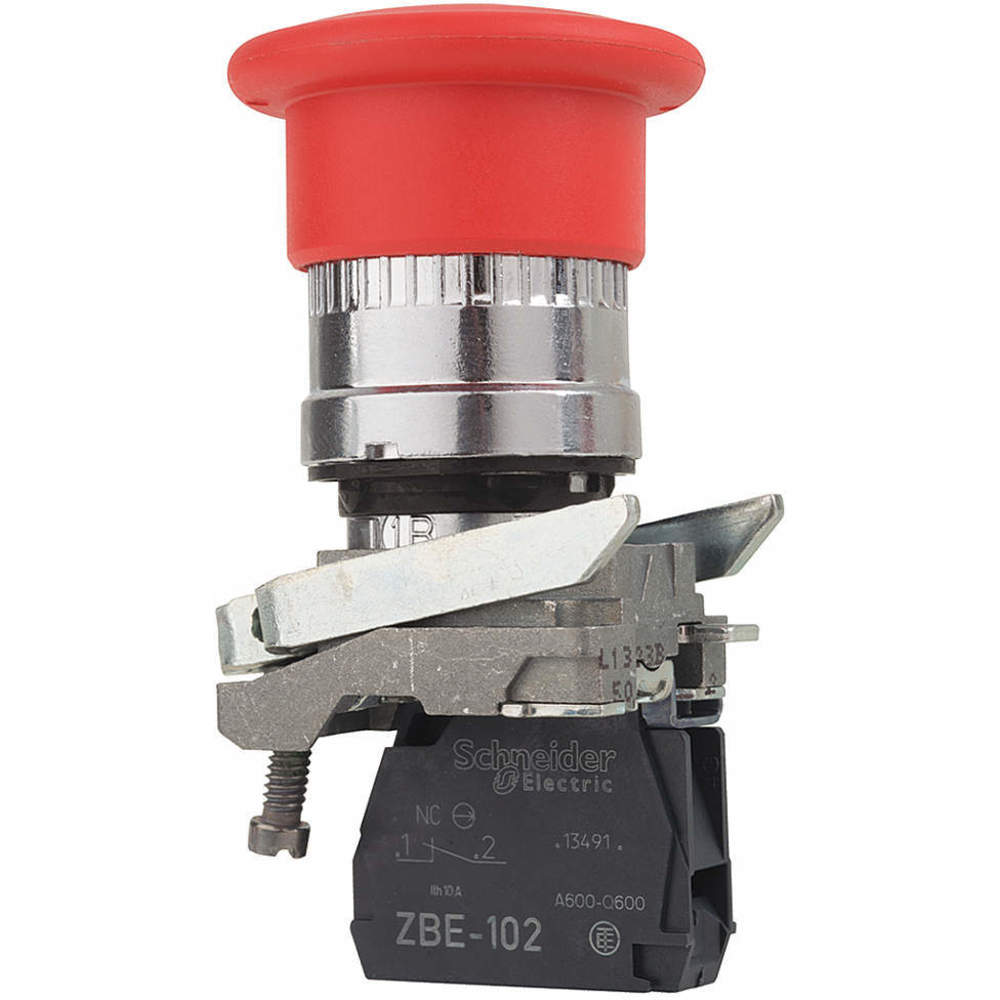

XB4BT842 | IP66, IP67, IP69, IP69K | No Legend | 1NC | 40 mm Dia. Mushroom | Screw Clamp | Chrome | 158°F | -40°F | €77.76 |
