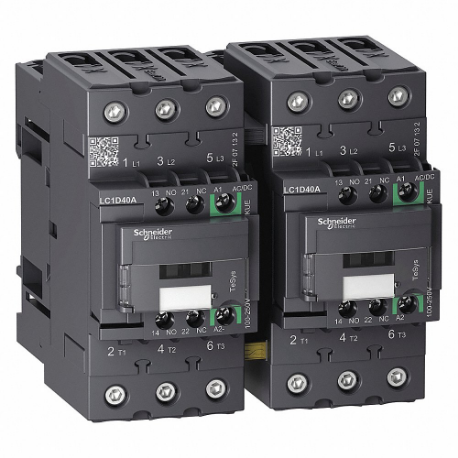

SCHNEIDER ELECTRIC LC2D40AKUE Iec Magnetic Contactor, 100 To 250 VAC/Dc Coil Volts, 1No/1Nc
Item: CU2BMLModel: LC2D40AKUECross Ref: 482Z71
7 In Stock
Ships within 2 days via
13.00% off
€465.51 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | IEC Magnetic Contactor |
| Aux. Contact Configuration | 1NO/1NC |
| Auxiliary Contacts Included | 1NO/1NC |
| Coil Voltage | 100-250V AC/DC |
| Contactor Style | IEC |
| Depth | 4 18/25" |
| Electrical Operating Durability | 2000000, 700000 |
| Embedded Surge Suppressor | No |
| Enclosure Nema Rating | No Enclosure |
| Frequency | 50/60 Hz |
| Full Load Amps-inductive | 40A |
| Full Load Amps-resistive | 60A |
| Height | 4 4/5" |
| Hp @ 1 Ph-240v | 5 hp |
| Hp @ 1 Phase-120v | 3 hp |
| Hp @ 1 Phase-240v | 5 hp |
| Hp @ 3 Ph-480v | 30 hp |
| Hp @ 3 Phase-208v | 10 hp |
| Hp @ 3 Phase-240v | 10 hp |
| Hp @ 3 Phase-480v | 30 hp |
| Hp @ 3 Phase-575v | 30 hp |
| Hp @ 3 Phase-600v | 30 hp |
| Included Auxiliary Contacts | Yes |
| Integrated Surge Suppression | No |
| Ip Rating | IP20 |
| Main Power Pole Contact Form | 3NO |
| Max. Operating Temp. | 140°F |
| Max. Voltage | 690V AC |
| Mechanical Operating Durability | 6000000 |
| Min. Operating Temp. | -40°F |
| Nema Enclosure Material | Not Applicable |
| No. Of Auxillary Contacts | 2 |
| No. Of Normally Open Main Contacts | 3 |
| No. Of Poles | 3 |
| Nominal Coil Voltage @ 60hz | 120/240V AC |
| Overall Depth | 4.72" |
| Overall Height | 4 4/5" |
| Overall Width | 4.69" |
| Product Datasheet | schneider-electric-lc2d40akue.pdf |
| Resistance Properties | Fire Resistant, Insulation Resistant |
| Reversible | Yes |
| Reversing Capability | Reversing |
| Series | Tesys Deca |
| Terminal Connection Type | Screw Clamp Terminals |
| Width | 4.69" |
| Wire Termination Type | Screw Clamp |
Shipping Info:
| Ship weight (kg) | 2.08 |
| Ship height (cm) | 12.19 |
| Ship length (cm) | 11.99 |
| Ship width (cm) | 11.91 |
| Country of Origin | FR |
Documentation:
Product Variants
| Product | Model | Coil Voltage | No. Of Poles | Height | Frequency | Full Load Amps-inductive | Full Load Amps-resistive | Included Auxiliary Contacts | Reversing Capability | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
LP1K1201BD | 24V | 3 | - | 50/60 Hz | 12A | 20A | Yes | Non Reversing | €144.86 | |
|
LP1K0601BD3 | 24V DC | 3 | 58 mm | - | 6A | 10A | - | - | €130.62 | |
 |
LC1D50AF7 | 110V AC | 3 | 122 mm | - | 50A | 80A | - | - | €442.20 | |
 |
LC1D18E7 | 48V | 3 | 77 mm | - | 18A | 32A | - | - | €286.66 | |
 |
LC1D18F7 | 110V AC | 3 | - | 50/60 Hz | 18A | - | Yes | Non Reversing | €126.17 | |
 |
LC1D258F7 | 110V AC | 4 | 4.13" | 50/60 Hz | 25A | 40A | Yes | Non Reversing | €315.79 | |
 |
LC1D25F7 | 110V AC | 3 | 3.35" | 50/60 Hz | 25A | 40A | Yes | Non Reversing | €268.74 |
