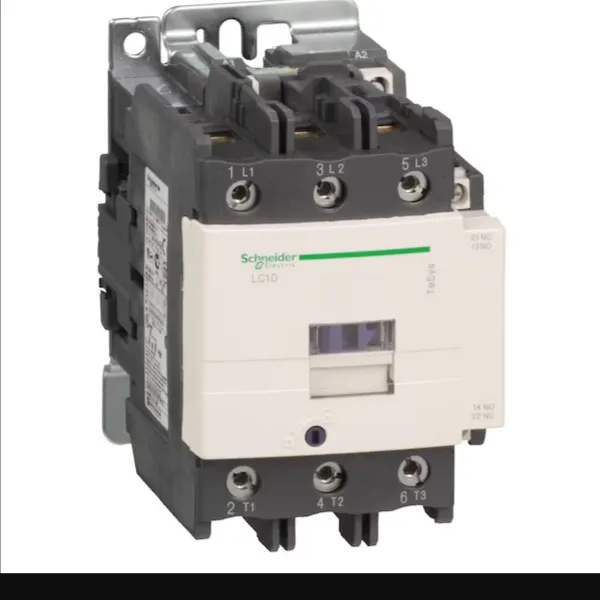

SCHNEIDER ELECTRIC LC1D80M7 IEC Magnetic Contactor 220V Coil 80A
Item: AJ2DPBModel: LC1D80M7Cross Ref: 48N924
7 In Stock
Ships within 2 days via
10.00% off
€473.59 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | IEC Magnetic Contactor |
| Application | Motor Control, Resistive Load |
| Coil Voltage | 220V AC |
| Coil Volts | 220V |
| Depth | 130 mm |
| Features | Without Built-In Suppressor Module |
| Full Load Amps-inductive | 80A |
| Full Load Amps-resistive | 125A |
| Height | 127 mm |
| Hold Va | 26 VA |
| Hp @ 1 Phase - 120v | 7 1/2 hp |
| Hp @ 1 Phase - 240v | 15 hp |
| Hp @ 3 Phase - 208v | 30 hp |
| Hp @ 3 Phase - 240v | 30 hp |
| Hp @ 3 Phase - 480v | 60 hp |
| Hp @ 3 Phase - 575v | 60 hp |
| Impulse Withstand Voltage | 8 kV |
| Includes Protective Cover | Yes |
| Inrush Va | 245 VA |
| Mounts On | Plate, Rail |
| Non-overlap Time | 1.5 ms |
| Number Of Poles | 3 |
| Width | 85 mm |
Shipping Info:
| Ship weight (kg) | 1.54 |
| Ship height (cm) | 12.7 |
| Ship length (cm) | 13 |
| Ship width (cm) | 8.5 |
| Country of Origin | CZ |
Product Variants
| Product | Model | Number Of Poles | Reversing Capability | Main Power Pole Contact Form | Auxiliary Contacts Included | Nominal Coil Voltage @ 60hz | Wire Termination Type | Integrated Surge Suppression | Coil Volts | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
LC1D093BD | 3 | - | - | - | - | - | - | 24V | €239.09 | |
 |
LC1D09BL | 3 | Non-reversing | 3NO | 1NO/1NC | 24V DC | Screw Clamp | Yes | 24V | €248.55 | |
 |
LC1D09E7 | 3 | - | - | - | - | - | - | 48V | €225.10 | |
 |
LC1D18E7 | 3 | - | - | - | - | - | - | 48V | €341.66 | |
|
LC1D18F7 | 3 | Non-reversing | 3NO | 1NO/1NC | 120V AC | Screw Clamp | No | 110V | €115.65 | |
 |
LC1D258F7 | 4 | Non-reversing | 2NO/2NC | 1NO/1NC | 120V AC | Screw Clamp | No | 110V | €289.48 | |
 |
LC1D25F7 | 3 | Non-reversing | 3NO | 1NO/1NC | 120V AC | Screw Clamp | No | 110V | €342.57 |
