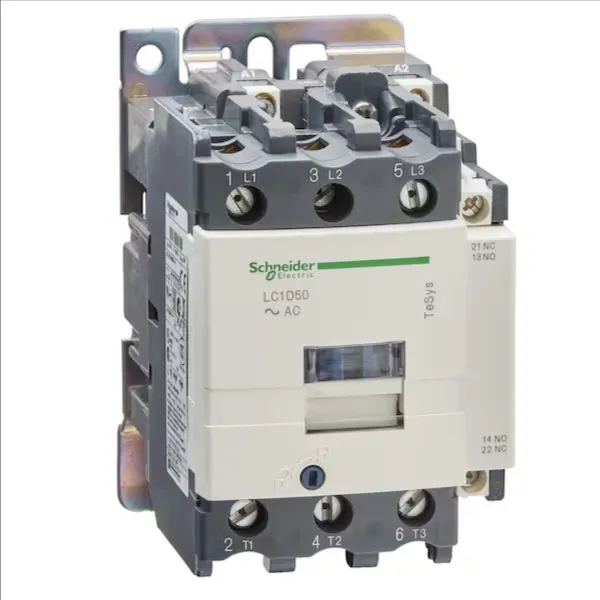

SCHNEIDER ELECTRIC LC1D50B7 IEC Magnetic Contactor 24V Coil 50A
Item: AJ2DPAModel: LC1D50B7Cross Ref: 48N894
7 In Stock
Ships within 2 days via
10.00% off
€634.09 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | IEC Magnetic Contactor |
| Application | Resistive Load |
| Coil Technology | Without Built-In Bidirectional Peak Limiting Diode Suppressor |
| Coil Voltage | 24V AC |
| Coil Volts | 24V |
| Depth | 120 mm |
| Features | Without Built-In Bi-Directional Peak Limiting Diode Suppressor |
| Full Load Amps-inductive | 50A |
| Full Load Amps-resistive | 80A |
| Height | 122 mm |
| Hp @ 1 Phase - 240v | 10 hp |
| Hp @ 3 Phase - 208v | 15 hp |
| Hp @ 3 Phase - 240v | 15 hp |
| Hp @ 3 Phase - 480v | 40 hp |
| Hp @ 3 Phase - 575v | 40 hp |
| Impulse Withstand Voltage | 6 kV |
| Includes Protective Cover | Yes |
| Mounting Support | Rail |
| Mounts On | Plate, Rail |
| Non-overlap Time | 1.5 ms |
| Number Of Poles | 3 |
| Product Datasheet | schneider-electric-lad4bb.pdf |
| Product Or Component Type | Contactor |
| Protective Cover | With |
| Width | 55 mm |
Shipping Info:
| Ship weight (kg) | 1.4 |
| Ship height (cm) | 12.2 |
| Ship length (cm) | 12 |
| Ship width (cm) | 5.5 |
| Country of Origin | CZ |
Documentation:
Product Variants
| Product | Model | Number Of Poles | Reversing Capability | Main Power Pole Contact Form | Auxiliary Contacts Included | Nominal Coil Voltage @ 60hz | Wire Termination Type | Integrated Surge Suppression | Coil Volts | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
LC1D093BD | 3 | - | - | - | - | - | - | 24V | €239.09 | |
 |
LC1D09BL | 3 | Non-reversing | 3NO | 1NO/1NC | 24V DC | Screw Clamp | Yes | 24V | €248.55 | |
 |
LC1D09E7 | 3 | - | - | - | - | - | - | 48V | €225.10 | |
 |
LC1D18E7 | 3 | - | - | - | - | - | - | 48V | €341.66 | |
|
LC1D18F7 | 3 | Non-reversing | 3NO | 1NO/1NC | 120V AC | Screw Clamp | No | 110V | €115.65 | |
 |
LC1D258F7 | 4 | Non-reversing | 2NO/2NC | 1NO/1NC | 120V AC | Screw Clamp | No | 110V | €289.48 | |
 |
LC1D25F7 | 3 | Non-reversing | 3NO | 1NO/1NC | 120V AC | Screw Clamp | No | 110V | €342.57 |
