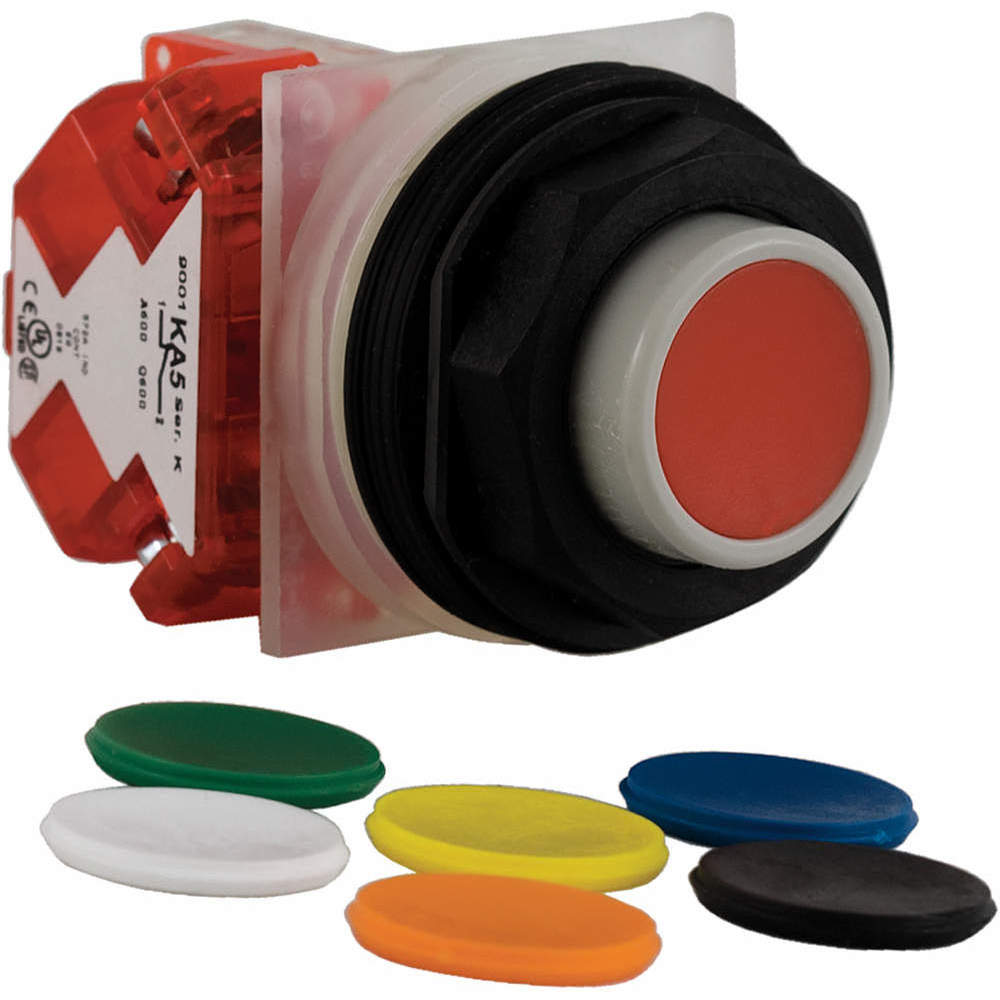

SCHNEIDER ELECTRIC 9001SKR3UH13 Non-illuminated Push Button 30mm Flush 1no/1nc
Item: AG7DFPModel: 9001SKR3UH13Cross Ref: 5FZT1
7 In Stock
Ships within 2 days via
10.00% off
€153.78 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Non-Illuminated Push Button |
| Ac Contact Rating | 1.2A @ 600V, 1.5A @ 480V, 3A @ 240V, 6A @ 120V |
| Action | Momentary |
| Action Type | Momentary |
| Basic Material | Plastic |
| Bezel Material | Plastic |
| Color | Universal |
| Contact Form | SPDT |
| Contact Rating | 10A @ 600V AC |
| Dc Contact Rating | 0.1A @ 600V, 0.27A @ 250V, 0.55A @ 125V |
| Display Qty | 1 |
| Features | Includes Set Of 7 Color Caps |
| Head Material | Plastic |
| Head/lens Color | Black, Blue, Green, Orange, Red, White, Yellow |
| Ip Rating | IP66 |
| Legend | No Legend |
| Manufacturer Warranty Length | 18 Months |
| Material | Plastic |
| Mechanical Operating Durability | 5 x 10^6 |
| Nema Contact Rating Designation | A600/Q600 |
| Nema Enclosure Rating | NEMA 1, NEMA 2, NEMA 3, NEMA 3R, NEMA 4, NEMA 4X, NEMA 12, NEMA 13 |
| Nema Rating | NEMA 1, NEMA 12, NEMA 13, NEMA 2, NEMA 3, NEMA 3R, NEMA 4, NEMA 4X, NEMA 6 |
| Number Of Indicator Lights | 0 |
| Number Of Operators | 1 |
| Operating Temperature - Maximum | 158°F |
| Operating Temperature - Minimum | -13°F |
| Operator Illumination | Non Illuminated |
| Operator Material | Plastic |
| Operator Voltage Rating - Maximum | 600V AC |
| Overall Depth | 1.65" |
| Overall Height | 1.77" |
| Overall Width | 1.89" |
| Panel Mounting Hole Diameter | 30 mm |
| Product Type | Push Button Operators |
| Push Button Style | Extended |
| Resistance Properties | Corrosion Resistant, Dust Resistant, Impact Resistant, Vibration Resistant, Watertight |
| Series | 9001SK Series |
| Terminal Connection | Screw Clamp |
| Terminal Connection Type | Pressure Plate |
| Type Of Operator | No Guard |
Shipping Info:
| Ship weight (kg) | 0.07 |
| Ship height (cm) | 5.59 |
| Ship length (cm) | 9.4 |
| Ship width (cm) | 5.08 |
| HS code | 8536509031 |
| Country of Origin | MX |
Product Variants
| Product | Model | Type Of Operator | Contact Form | Terminal Connection | Bezel Material | Diameter | Action Type | Legend | Nema Rating | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
9001SKR1BH13 | Full Guard | SPDT | Screw Clamp | Plastic | - | Momentary | No Legend | NEMA 1, NEMA 12, NEMA 13, NEMA 2, NEMA 3, NEMA 3R, NEMA 4, NEMA 4X, NEMA 6 | €159.97 | |
|
9001SKR1BH5 | Full Guard | 1NO | Screw Clamp | Plastic | - | Momentary | No Legend | NEMA 1, NEMA 12, NEMA 13, NEMA 2, NEMA 3, NEMA 3R, NEMA 4, NEMA 4X, NEMA 6 | €134.68 | |
|
9001SKR1BH6 | Full Guard | 1NC | Screw Clamp | Plastic | - | Momentary | No Legend | NEMA 1, NEMA 12, NEMA 13, NEMA 2, NEMA 3, NEMA 3R, NEMA 4, NEMA 4X, NEMA 6 | €134.68 | |
 |
9001SKR1GH13 | Full Guard | SPDT | Screw Clamp | Plastic | - | Momentary | No Legend | NEMA 1, NEMA 12, NEMA 13, NEMA 2, NEMA 3, NEMA 3R, NEMA 4, NEMA 4X, NEMA 6 | €159.97 | |
|
9001SKR1GH5 | Full Guard | 1NO | Screw Clamp | Plastic | - | Momentary | No Legend | NEMA 1, NEMA 12, NEMA 13, NEMA 2, NEMA 3, NEMA 3R, NEMA 4, NEMA 4X, NEMA 6 | €134.68 | |
|
9001SKR1GH6 | Full Guard | 1NC | Pressure Plate | Thermoplastic | - | Momentary | No Legend | NEMA 1, NEMA 12, NEMA 13, NEMA 2, NEMA 3, NEMA 3R, NEMA 4, NEMA 4X, NEMA 6 | - | RFQ
|
 |
9001SKR1RH13 | Full Guard | SPDT | Screw Clamp | Plastic | - | Momentary | No Legend | NEMA 1, NEMA 12, NEMA 13, NEMA 2, NEMA 3, NEMA 3R, NEMA 4, NEMA 4X, NEMA 6 | €159.97 |
