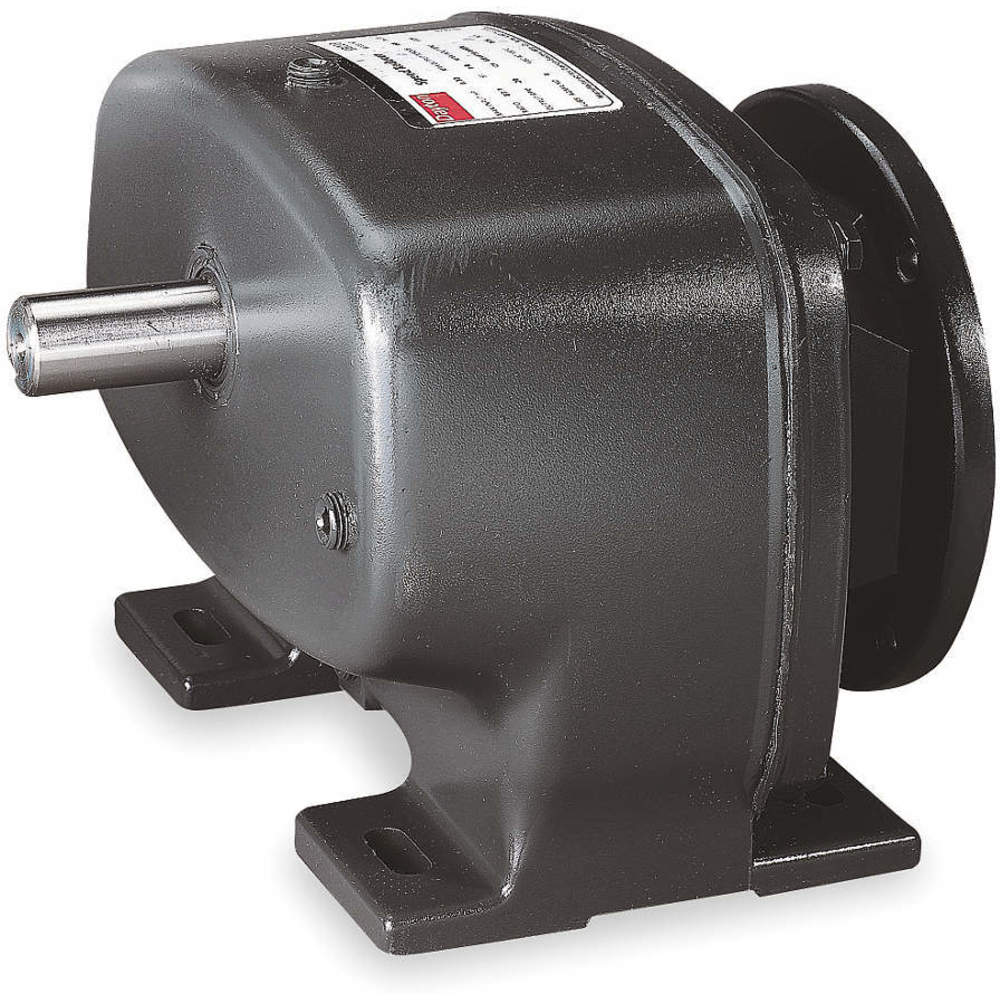

DAYTON 4Z720 Speed Reducer C-face 56c 87 1
Get it by Monday, Aug 17
5.00% off
€1,482.14 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Speed Reducer |
| Application | Speed Reducer |
| Base To Center | 4 22/25" |
| Base To Shaft Center | 4.88" |
| Bearing Type | Ball |
| Bore Dia. | 5/8" |
| Dimension U | 1" |
| Duty | Standard |
| Finish | Epoxy Paint |
| Frame | 56C |
| Gear Material | Steel |
| Gear Ratio | 871 |
| Gear Type | Helical, Spur |
| Housing Material | Die Cast Aluminum |
| Housing Material Finish | Powdered Epoxy Paint |
| Included | Hex Head Capscrews, Steel Key, Tube Anti-Seize Compound, Vent Plug |
| Input Connection Type | C-Face |
| Input Shaft Type | Keyed Shaft |
| Input Speed | 1750 RPM |
| Lubrication | Klubersynth UH1 6-460 |
| Max. Input Hp | 0.75 hp , 3/4 hp |
| Max. Input Speed | 1800 RPM |
| Max. Output Speed | 20 RPM |
| Max. Output Torque | 998 lbs.-in. |
| Max. Output Torque | 998 in.-lb. |
| Motor Frame Designation | 56C |
| Mount Hole Center To Center Length | 4 1/2" |
| Mount Hole Center To Center Width | 5 17/25" |
| Mounting Orientation | Horizontal |
| Mounting Type | Bolt On |
| No. Of Stages | 1 |
| Nominal Output Speed | 20 RPM |
| Output Shaft Dia. | 1" |
| Output Shaft Height | 4 7/8" |
| Output Shaft Type | Keyed |
| Output Torque @ 1/40 Hp | 3600 lbs.-in. |
| Overall Height | 7.47" |
| Overall Length | 5.69" |
| Overall Width | 8.44" |
| Overhung Load | 1192 lbs. |
| Overhung Load Capacity | 1192 lbs.-ft. |
| Parallel/inline | Inline, Parallel |
| Pinion Material | Hardened Steel |
| Reducer Model No. | 84405 |
| Rotation | CW, CCW |
| Seal Type | Double Lip |
| Shaft Orientation | Parallel Inline |
| Single/double Output | Single Output |
| Solid/hollow Output Shaft | Solid |
| Speed Reducer Type | C Face |
Shipping Info:
| Ship weight (kg) | 11.45 |
| Ship height (cm) | 26.67 |
| Ship length (cm) | 28.45 |
| Ship width (cm) | 27.94 |
| HS code | 8483405010 |
| Country of Origin | US |
Product Variants
| Product | Model | Housing Material | Max. Input Hp | Mounting Type | Max. Input Speed | Max. Output Speed | Nominal Output Speed | Max. Output Torque | Housing Material Finish | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |

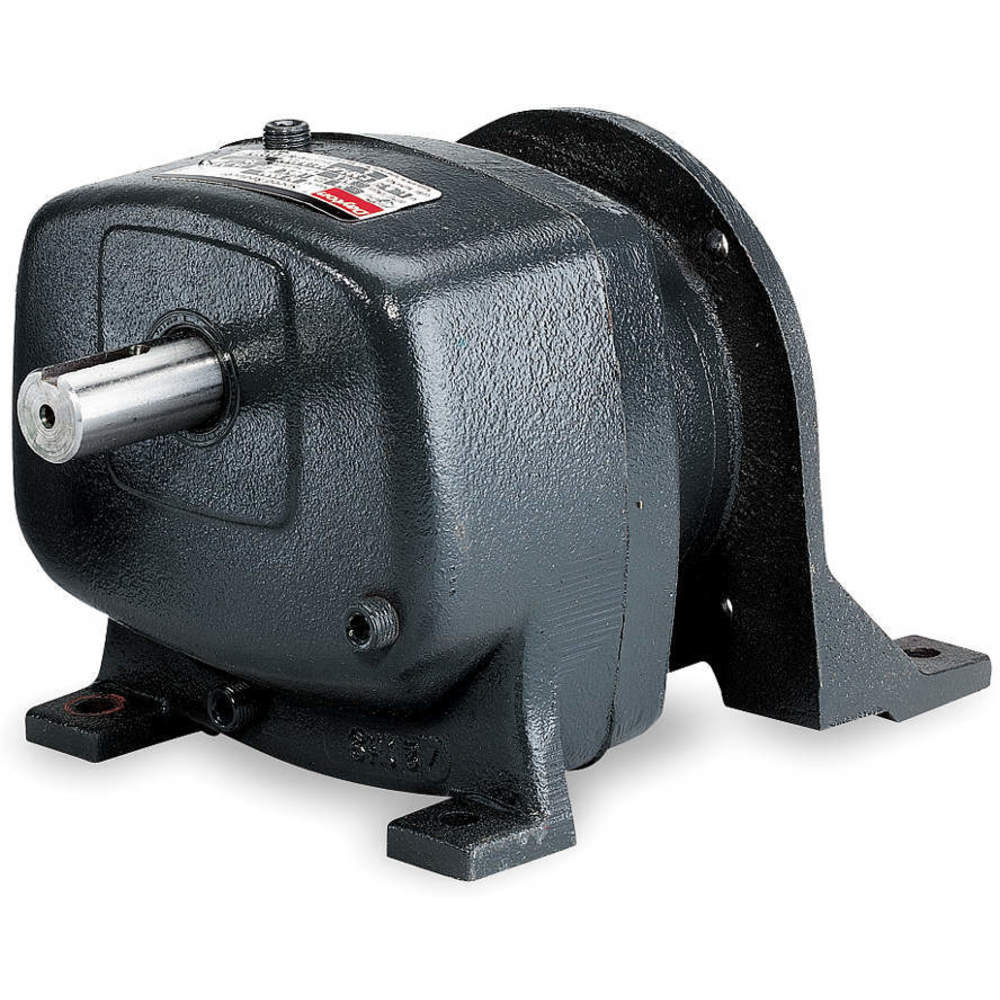

2Z932 | Cast Iron | 1/2 hp | Horizontal | 1750 RPM | 30 RPM | 30 RPM | 955 lbs.-in. | Powder Coated Epoxy Paint | €1,394.44 | |
|
2Z933 | Cast Iron | 1/2 hp | Horizontal | 1750 RPM | 44 RPM | 44 RPM | 651 lbs.-in. | Powder Coated Epoxy Paint | €1,495.84 | |
|
2Z934 | Cast Iron | 1/2 hp | Horizontal | 1750 RPM | 60 RPM | 60 RPM | 478 lbs.-in. | Powder Coated Epoxy Paint | €1,313.23 | |
 |

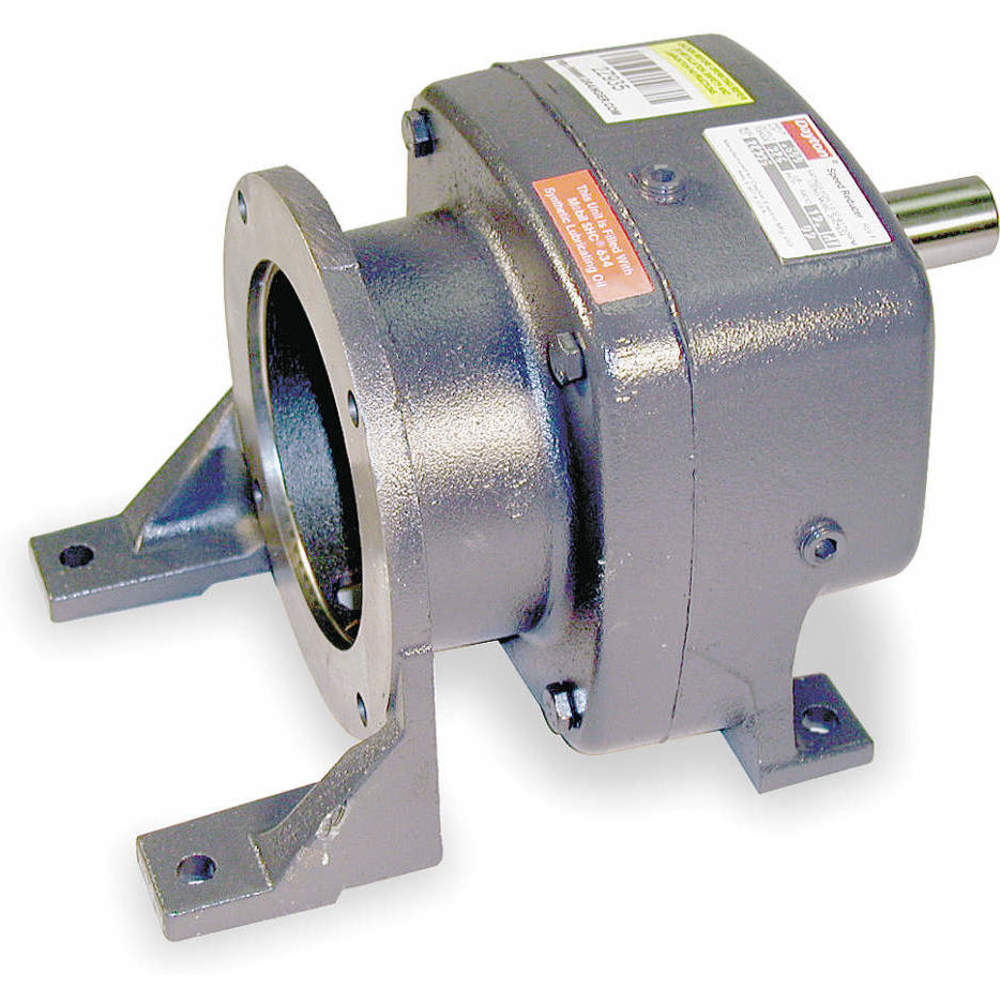

2Z935 | Cast Iron | 1/2 hp | Horizontal | 1750 RPM | 91 RPM | 91 RPM | 326 lbs.-in. | Powder Coated Epoxy Paint | €1,547.87 | |
 |

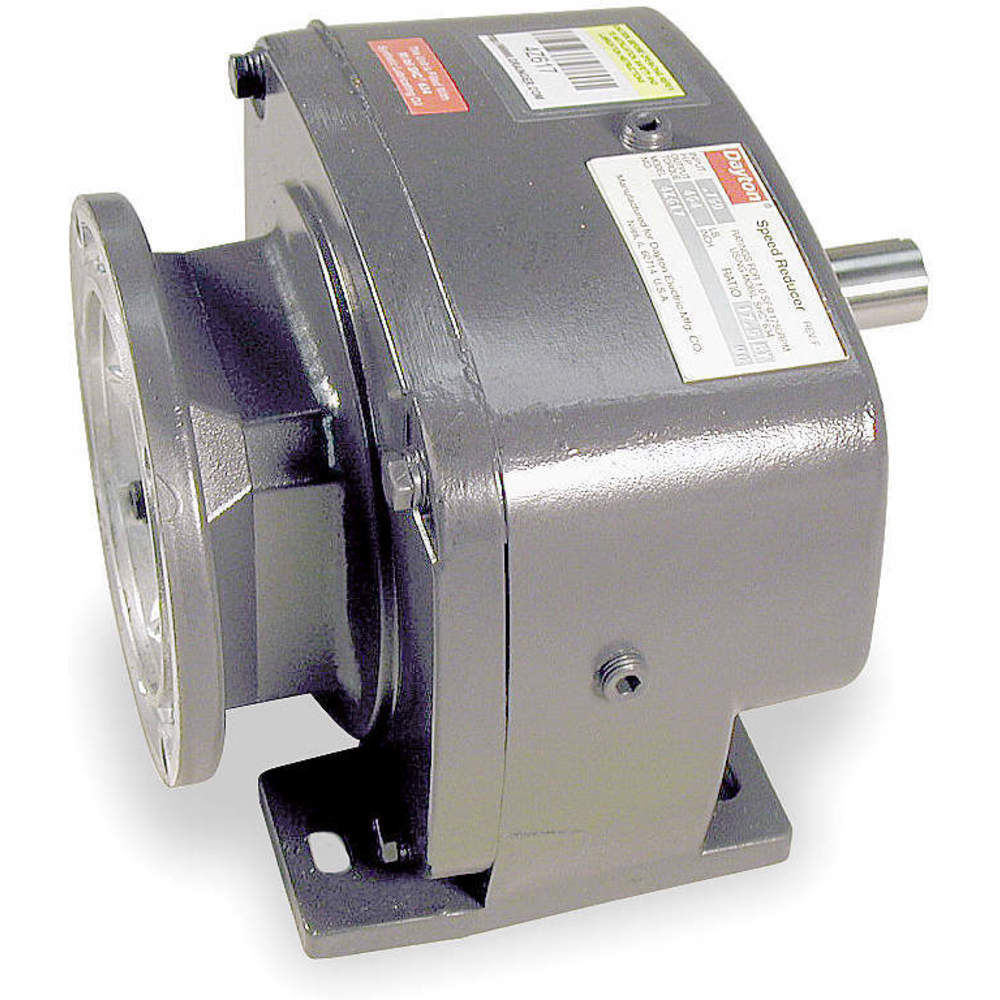

4Z614 | Die Cast Aluminum | 1/2 hp | Bolt On | 1800 RPM | 30 RPM | 30 RPM | 998 lbs.-in. | Powdered Epoxy Paint | €1,403.87 | |
|
4Z615 | Die Cast Aluminum | 1/2 hp | Bolt On | 1800 RPM | 45 RPM | 45 RPM | 665 lbs.-in. | Powdered Epoxy Paint | €1,455.26 | |
|
4Z616 | Die Cast Aluminum | 3/4 hp | Bolt On | 1800 RPM | 55 RPM | 56 RPM | 816 lbs.-in. | Powdered Epoxy Paint | €1,403.87 |
