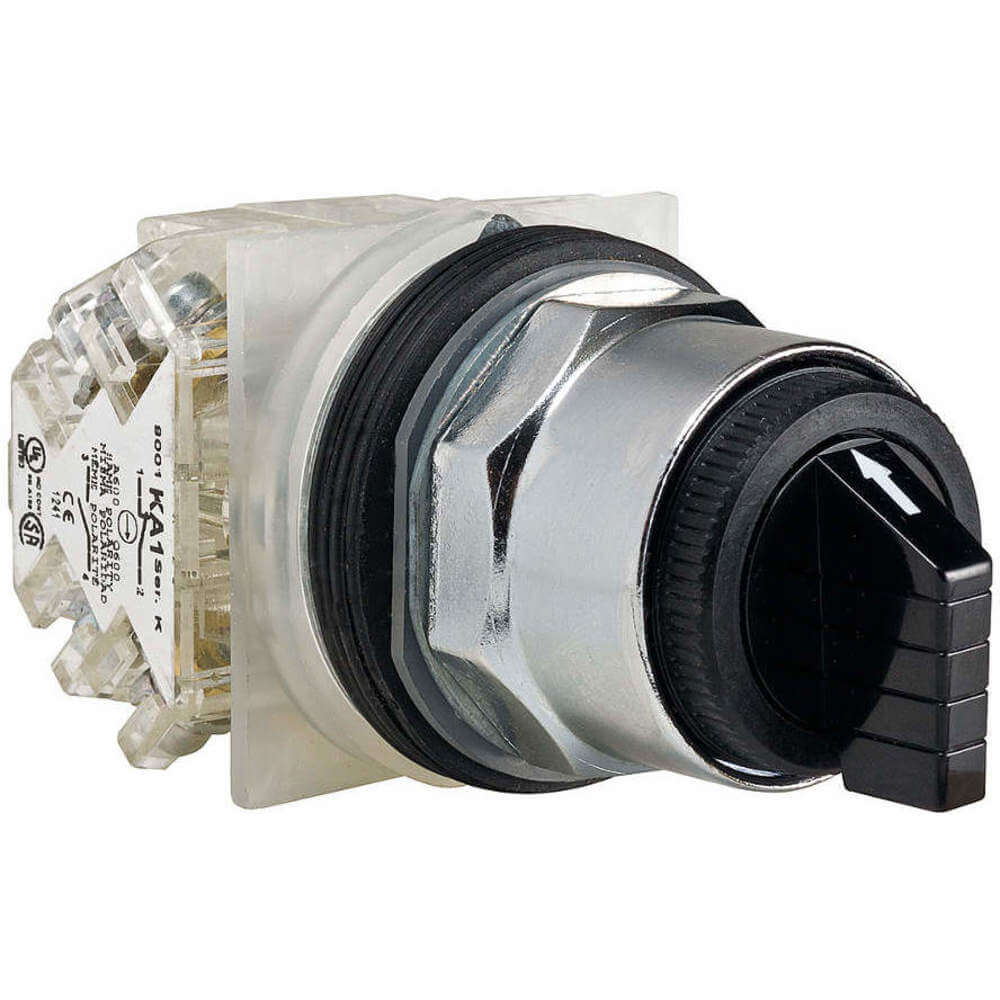

SCHNEIDER ELECTRIC 9001KS49BH2 Non-Illuminated Selector Switch 30mm 3 Position Lever
Item: AH9VXNModel: 9001KS49BH2Cross Ref: 45C544
7 In Stock
OXOX
XOXO
12; 13; 3; 3R; 4
Ships within 2 days via
13.00% off
€191.44 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Non-Illuminated Select Switch |
| Ac Contact Rating | 1.2A @ 600V, 1.5A @ 480V, 3A @ 240V, 6A @ 120V |
| Action | Maintained/Maintained/Maintained |
| Action Type | Maintained/Maintained/Maintained |
| Basic Material | Metal |
| Bezel Color | Chrome |
| Bezel Material | Zinc Die Cast |
| Bezel Material | Metal |
| Cam | J |
| Cam Profile | 10 |
| Cap/operator Or Lens Colour | Black |
| Color | Black |
| Contact Block Material | Metal |
| Contact Form | DPDT |
| Contact Rating | 10A @ 600V AC |
| Dc Contact Rating | 0.1A @ 600V, 0.27A @ 250V, 0.55A @125V |
| Device Presentation | Complete Product |
| Hazardous Location Specification | Not Rated |
| Ip Rating | IP66 |
| Key Removal | No Key |
| Mounting Dia. | 30 mm |
| Nema Contact Rating Designation | A600/Q600 |
| Nema Enclosure Rating | NEMA 1, NEMA 2, NEMA 3, NEMA 3R, NEMA 4, NEMA 12, NEMA 13 |
| Nema Rating | NEMA 3, NEMA 3R, NEMA 4, NEMA 12, NEMA 13 |
| No. Of Positions | 3 |
| Operator Head Color | Black |
| Operator Head Material | Polycarbonate |
| Operator Illumination | Non Illuminated |
| Panel Mounting Hole Dia. | 30 mm |
| Product Datasheet | schneider-electric-9001ks49bh2.pdf |
| Series | 9001K Series |
| Switch Function @ 1st Position | On |
| Switch Function @ 2nd Position | Off |
| Switch Function @ 3rd Position | On |
| Switch Function @ 4th Position | No Fourth Position |
| Switch Head Type | Short Lever |
| Switch Operation @ Position A | OXOX |
| Switch Operation @ Position B | XOXO |
| Switch Operation @ Position C | OXXO |
| Switch Operation @ Position D | No Fourth Position |
| Type Of Operator | Lever |
Shipping Info:
| Ship weight (kg) | 0.18 |
| Ship height (cm) | 5.59 |
| Ship length (cm) | 9.4 |
| Ship width (cm) | 4.83 |
| Country of Origin | MX |
Product Details:
- Bezel Color : Chrome
Documentation:
Product Variants
| Product | Model | Panel Mounting Hole Dia. | Color | Bezel Material | Operator Head Material | No. Of Positions | Series | Contact Form | Basic Material | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
9001KS11BH1 | 30 mm | Black | - | Polycarbonate | 2 | 9001K Series | SPDT | Metal | €159.24 | |
|
9001KS11BH13 | 30 mm | Black | Metal | Polycarbonate | 2 | 9001K Series | 1NO, 1NC | Metal | €153.98 | |
|
9001KS11BH2 | 30 mm | Black | Metal | Polycarbonate | 2 | 9001K Series | DPDT | Metal | €202.77 | |
 |
9001KS43BH13 | 30 mm | Black | Metal | Polycarbonate | 3 | 9001K Series | 1NO, 1NC | Metal | €154.85 | |
 |
XB5AG21 | 22 mm | Black | Plastic | - | 2 | XB5 Series | 1NO | Plastic | €138.74 | |
 |
XB5AJ21 | 22 mm | Black | Plastic | Plastic | 2 | XB5 Series | 1NO | Plastic | €60.59 | |
 |
XB5AD53 | 22 mm | Black | Plastic | Plastic | 3 | XB5 Series | 2NO | Plastic | €87.00 |
