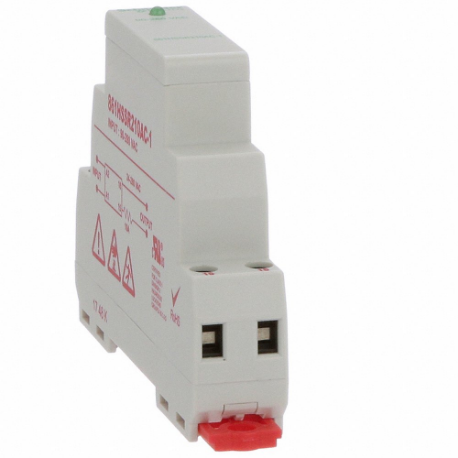

SCHNEIDER ELECTRIC 861HSSR210-AC-1 Hazardous Location Solid State Relay, DIN-Rail/Surface Mounted, SCR
Get it by Thursday, Jul 2
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Solid State Relay |
| Amps Type | AC |
| Body Depth | 2 3/5" |
| Body Height | 3 1/2" |
| Body Width | 0.62" |
| Case Color | Gray |
| Electrical Connection | Screw |
| Electrical Connection Type | Screw |
| Electrical Phase | 1 |
| Finger Safe | Yes |
| Heat Sink | Integral |
| Input Amps | 20 mA |
| Input Voltage | 90-280V AC |
| Max. Operating Temp. | 176°F |
| Max. Output Amps With Heat Sink | 10A |
| Max. Output Amps Without Heat Sink | 10A |
| Mfr. Series | 861H Series |
| Min. Operating Temp. | -22°F |
| Nec Hazardous Location Classification | Class I, Division 2 |
| Output Switching Mode | Zero Crossing |
| Output Voltage | 24-280V AC |
| Product Datasheet | schneider-electric-861hssr210-ac-1.pdf |
| Relay Mounting Style | DIN Rail, Surface |
| Response Time | 40 ms |
| Status Indicator | Green LED Indicator |
| Switch Component Type | SCR |
| Switch Configuration | Form A |
| Voltage Type | AC Output |
| Voltage/amps Type | AC Output |
Shipping Info:
| Ship weight (kg) | 0.12 |
| Ship height (cm) | 8.89 |
| Ship length (cm) | 6.6 |
| Ship width (cm) | 1.57 |
| Country of Origin | IN |
Documentation:
Product Variants
| Product | Model | Body Height | Body Width | Body Depth | Input Voltage | Response Time | Output Voltage | Switch Component Type | Electrical Connection | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |

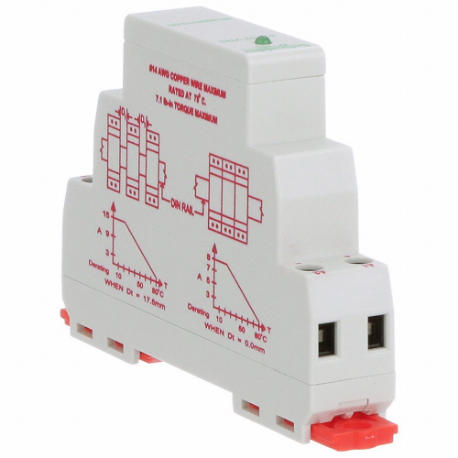

861HSSR115-DD | 3 1/2" | 0.62" | 2 3/5" | 3.5-32V DC | 5 ms | 3-50V DC | Mosfet | Screw Clamp | - | RFQ
|
 |

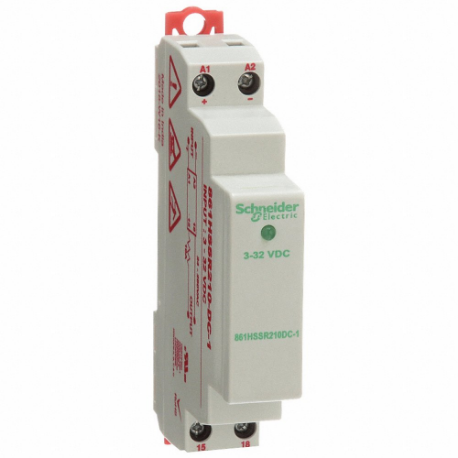

861HSSR210-DC-1 | 3 1/2" | 0.62" | 2 3/5" | 3-32V DC | 0.1 ms | 24-280V AC | SCR | Screw | - | RFQ
|
 |

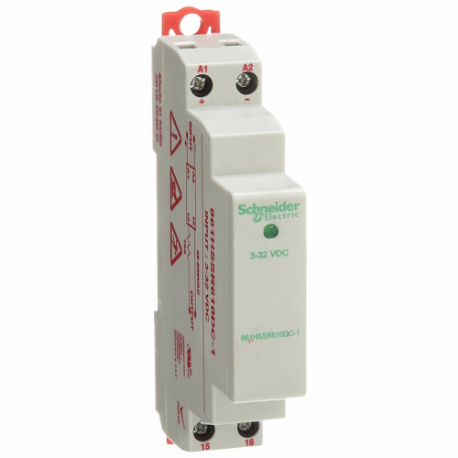

861HSSR610-DC-1 | 3 1/2" | 0.62" | 2 3/5" | 3-32V DC | 0.1 ms | 48-600V AC | SCR | Screw | - | RFQ
|
 |

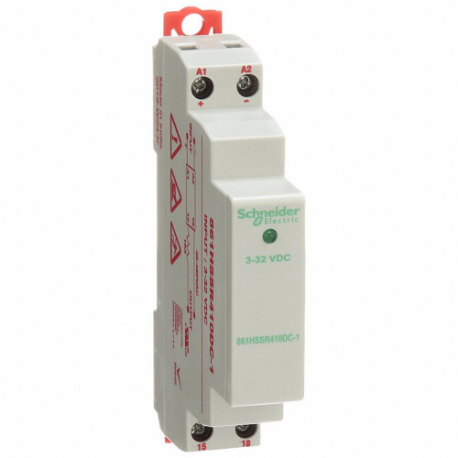

861HSSR410-DC-1 | 2 3/5" | 3 1/2" | 0.7" | 3-32V DC | 0.1 ms | 48-480V AC | Silicon Controlled Rectifier | Screw Clamp | - | RFQ
|
 |
861HSSR610-AC-1 | 3 1/2" | 0.62" | 2 3/5" | 90-280V AC | 40 ms | 48-600V AC | SCR | Screw Clamp | - | RFQ
|
 |

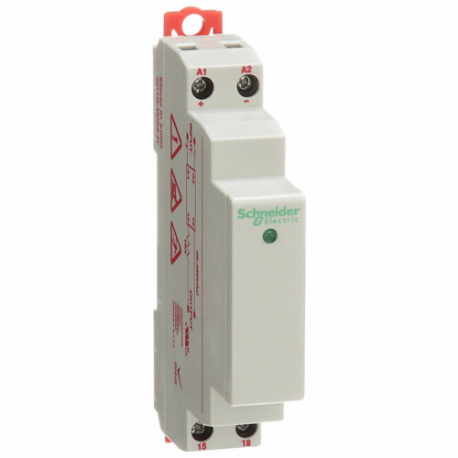

861HSSR410-AC-1 | 3 1/2" | 0.62" | 2 3/5" | 90-280V AC | 40 ms | 48-480V AC | SCR | Screw Clamp | - | RFQ
|
