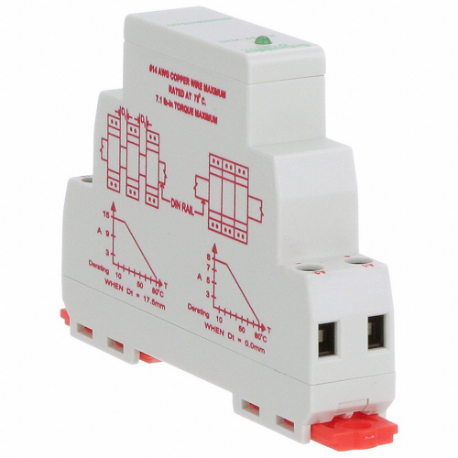

SCHNEIDER ELECTRIC 861HSSR115-DD Hazardous Location Solid State Relay, DIN-Rail/Surface Mounted, MOSFET
Get it by Tuesday, Dec 23
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Solid State Relay |
| Body Depth | 2 3/5" |
| Body Height | 3 1/2" |
| Body Width | 0.62" |
| Case Color | Gray |
| Current Type | DC |
| Electrical Connection | Screw Clamp |
| Electrical Connection Type | Screw |
| Electrical Phase | 1 |
| Finger Safe | Yes |
| Heat Sink | Integral |
| Holding Current | 20 mA |
| Includes | Internal Heat Sink |
| Input Current | 12 mA |
| Input Power Consumption | 0.1 W |
| Input Voltage | 3.5-32V DC |
| Max. Operating Temp. | 176°F |
| Max. Output W/heat Sink | 15A |
| Maximum Output Current With Heat Sink | 15A |
| Maximum Output Current Without Heat Sink | 15A |
| Mfr. Series | 861H Series |
| Min. Operating Temp. | -22°F |
| Must Release Voltage | 1V |
| Nec Hazardous Location Classification | Class I, Division 2 |
| Output Voltage Range | 3-50V DC |
| Overall Depth | 2 3/5" |
| Overall Height | 2 3/5" |
| Phase | 1 |
| Protection Technology | Current Limiter |
| Protection Type | Reverse Polarity Protection |
| Relay Mounting Style | Din Rail, Surface |
| Relay Turns On At | Zero Crossing |
| Response Time | 5 ms |
| Series | 861H Series |
| Status Indicator | Green LED Indicator |
| Switch Component Type | Mosfet |
| Switch Configuration | Form A |
| Turns On At | Zero Cross |
| Voltage Type | DC Output |
| Voltage/current Type | DC Output |
Shipping Info:
| Ship weight (kg) | 0.09 |
| Ship height (cm) | 8.89 |
| Ship length (cm) | 6.6 |
| Ship width (cm) | 1.57 |
| Country of Origin | IN |
Product Variants
| Product | Model | Body Height | Body Width | Body Depth | Input Voltage | Response Time | Maximum Output Current With Heat Sink | Voltage/current Type | Maximum Output Current Without Heat Sink | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |

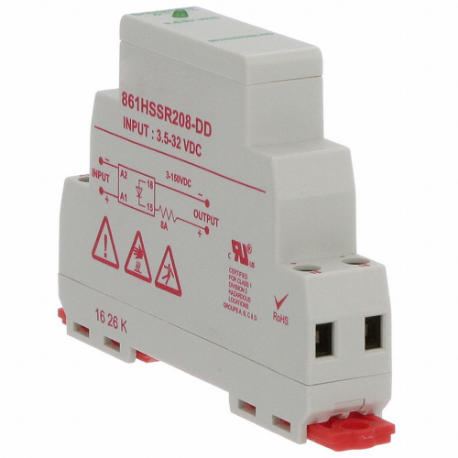

861HSSR208-DD | 3 1/2" | 0.62" | 2 3/5" | 3.5-32V DC | 5 ms | 8A | DC Output | 8A | - | RFQ
|
 |
861HSSR210-AC-1 | 3 1/2" | 0.62" | 2 3/5" | 90-280V AC | 40 ms | 10A | AC Output | 10A | - | RFQ
|
 |
861HSSR210-DC-1 | 3 1/2" | 0.62" | 2 3/5" | 3-32V DC | 0.1 ms | 10A | AC Output | 10A | €124.74 | |
 |

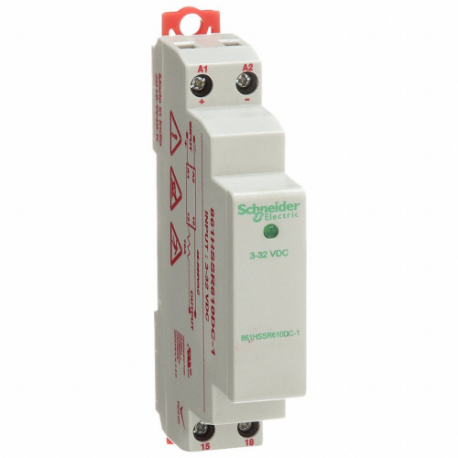

861HSSR610-DC-1 | 3 1/2" | 0.62" | 2 3/5" | 3-32V DC | 0.1 ms | 10A | AC Output | 10A | - | RFQ
|
 |
861HSSR410-DC-1 | 2 3/5" | 3 1/2" | 0.7" | 3-32V DC | 0.1 ms | 10A | AC Output | 10A | - | RFQ
|
 |
861HSSR610-AC-1 | 3 1/2" | 0.62" | 2 3/5" | 90-280V AC | 40 ms | 10A | AC Output | 10A | - | RFQ
|
 |

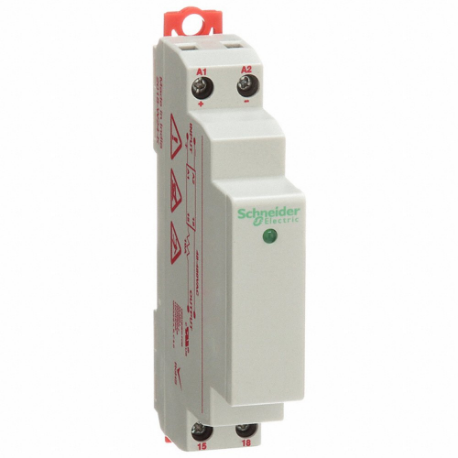

861HSSR410-AC-1 | 3 1/2" | 0.62" | 2 3/5" | 90-280V AC | 40 ms | 10A | AC Output | 10A | - | RFQ
|
