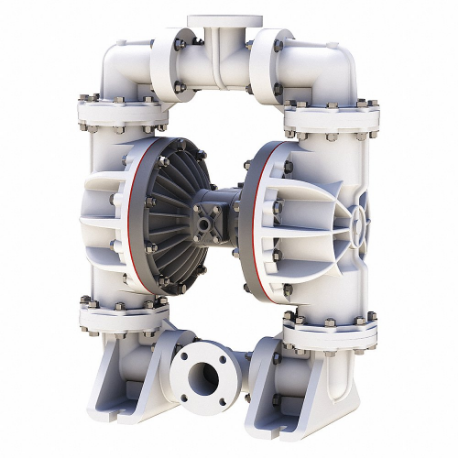

SANDPIPER S30B3P2PPAS000. Ball Valve Pump, 280 Gpm, 231 Lbs., 32.31 X 40.66 X 16.19 Inch Size
Get it by Tuesday, Sep 1
5.00% off
€27,214.11 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Ball Valve Pump |
| Air Consumption | 150 SCFM |
| Air Inlet | 3/4" Flange |
| Air Intake Connection Size | 3/4" |
| Air Intake Connection Type | Flange |
| Air Pressure | 100 psi |
| Center Section Material | Polypropylene |
| Check Seat Material | Polypropylene |
| Chemical Compatibility | Ammonium Hydroxide, Calcium Carbonate, Hydrochloric Acid 10%, Hydrochloric Acid 20%, Hydrochloric Acid 30%, Phosphoric Acid 40%, Phosphoric Acid 50%, Potassium Hydroxide 50%, Sodium Hydroxide 10%, Sodium Hydroxide 20%, Sodium Hydroxide 50%, Sodium Hydroxide 80%, Sulfuric Acid 10%, Sulfuric Acid 20%, Sulfuric Acid 30%, Sulfuric Acid 40%, Sulfuric Acid 50%, Sulfuric Acid 60%, Sulfuric Acid 70%, Sulfuric Acid 80%, Water |
| Connection Size | 3" |
| Connection Style | Flange |
| Connection Type | Flanged |
| Diaphragm Material | PTFE |
| Display Qty | 1 |
| Flow Rate @ 10 Psi | Not Applicable |
| Flow Rate @ 100 Psi | 276.1 GPM |
| Flow Rate @ 120 Psi | Not Applicable |
| Flow Rate @ 15 Psi | Not Applicable |
| Flow Rate @ 20 Psi | 164.3 GPM |
| Flow Rate @ 30 Psi | Not Applicable |
| Flow Rate @ 40 Psi | 214.6 GPM |
| Flow Rate @ 50 Psi | Not Applicable |
| Flow Rate @ 60 Psi | 242.2 GPM |
| Flow Rate @ 70 Psi | Not Applicable |
| Flow Rate @ 80 Psi | 260.5 GPM |
| Flow Rate @ 90 Psi | Not Applicable |
| Fluid Discharge Connection Size | 3" |
| Fluid Discharge Connection Type | Flange |
| Fluid Intake Connection | 3" |
| Fluid Intake Connection Type | Flange |
| For Use With Potable Systems | No |
| Height | 41" |
| Housing Material | Polypropylene |
| Inlet Size | 3" , 3/4" |
| Inlet Standard | ANSI |
| Inlet Type | Flanged |
| Inlet/outlet Size | 3" |
| Length | 32" |
| Manifold Connection | Single Port |
| Manifold Connection Type | Flange |
| Max. Air Consumption | 150 SCFM |
| Max. Air Intake Pressure | 100 psi |
| Max. Dia. Solids | 3/4" |
| Max. Discharge Pressure | 100 psi |
| Max. Feet Of Head | 231 ft. |
| Max. Flow Rate | 280 GPM |
| Max. Head | 231 ft. |
| Max. Media Temp. | 180°F |
| Max. Operating Pressure | 100 psi |
| Max. Outlet Pressure | 100 psi |
| Media Discharge Connection Size | 3" |
| Media Discharge Connection Type | Flange |
| Media Discharge Location | Center, Top |
| Media Intake Connection Size | 3" |
| Media Intake Connection Type | Flange |
| Media Intake Location | Bottom, Center |
| Min. Media Temp. | -40°F |
| Non-wetted Housing Material | Polypropylene |
| Power Source | Air |
| Priming | Self Priming |
| Product Datasheet | sandpiper-s30b3p1ppas000-.pdf |
| Pump Assembly Type | Bolt |
| Pump Operation Type | Air |
| Self Priming | Yes |
| Series Family | S30 |
| Valve Material | PTFE |
| Valve Type | Ball |
| Wetted Housing Material | Polypropylene |
| Width | 16" |
Shipping Info:
| Ship weight (kg) | 93.6 |
| Ship height (cm) | 103.28 |
| Ship length (cm) | 82.07 |
| Ship width (cm) | 41.12 |
| Country of Origin | US |
Documentation:
Product Variants
| Model | Max. Flow Rate | Diaphragm Material | Housing Material | Max. Media Temp. | Wetted Material | Max. Solid Dia. | Valve Material | Manifold Connection Type | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| S30B1SBBANS600. | 285 GPM | Buna N | Stainless Steel | 190°F | - | 0.38" | Buna N | NPT | €28,601.30 | |
| S30B1S2TANS600. | 285 GPM | PTFE | Stainless Steel | 220°F | Stainless Steel | 0.38" | PTFE | NPT | €31,503.10 | |
| S30B1S1EANS600. | 285 GPM | Santoprene | Stainless Steel | 275°F | - | 0.38" | Santoprene | NPT | €28,601.30 | |
| S30B1ABBANS600. | 285 GPM | Buna N | Aluminum | 190°F | Aluminum | 0.38" | Buna N | NPT | €9,432.82 | |
| S30B1A2TANS600. | 285 GPM | PTFE | Aluminum | 220°F | Aluminum | 0.38" | PTFE | NPT | €12,472.41 | |
| S30B1A1EANS600. | 285 GPM | Santoprene | Aluminum | 275°F | Aluminum | 0.38" | Santoprene | NPT | €9,365.14 | |
| S30B1I2TANS600. | 285 GPM | PTFE | Cast Iron | 220°F | - | 0.38" | PTFE | NPT | €14,850.50 |
